CYLINDER HEADS
click on pictures to enlarge

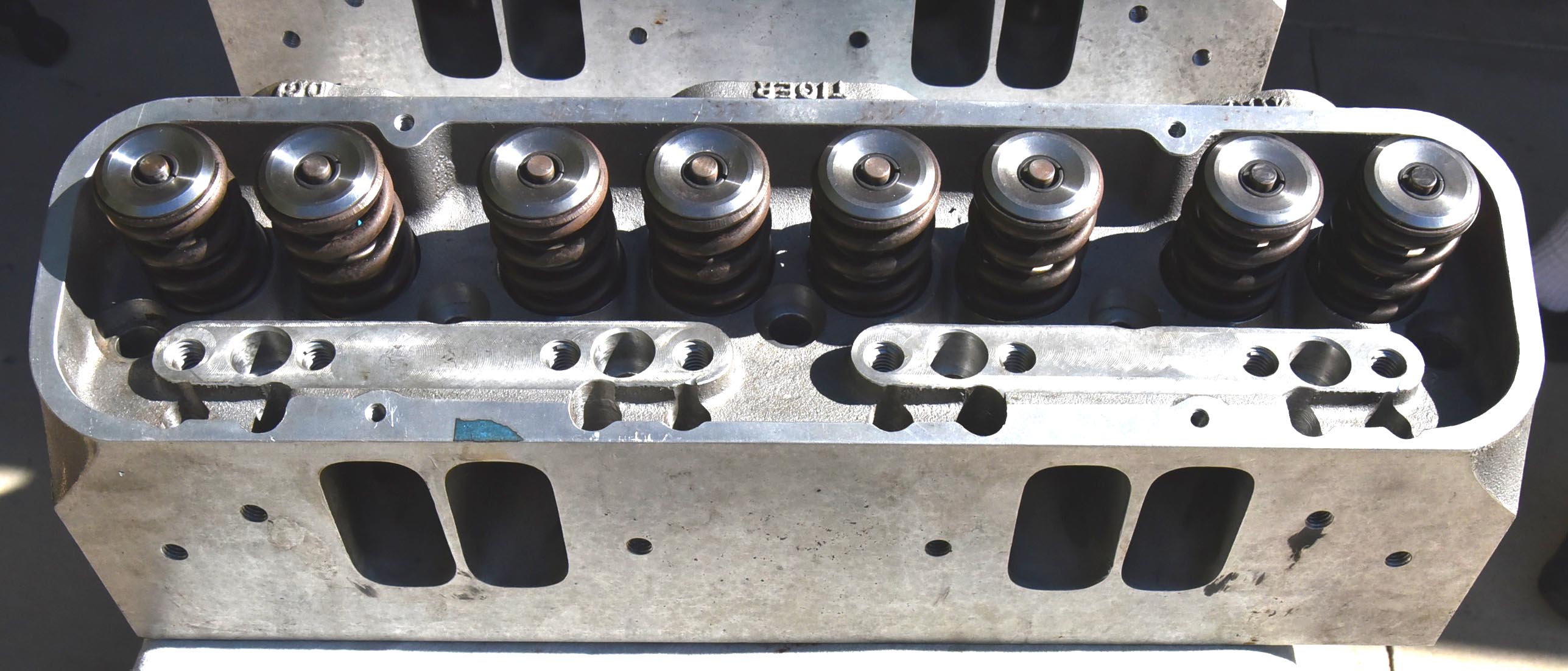

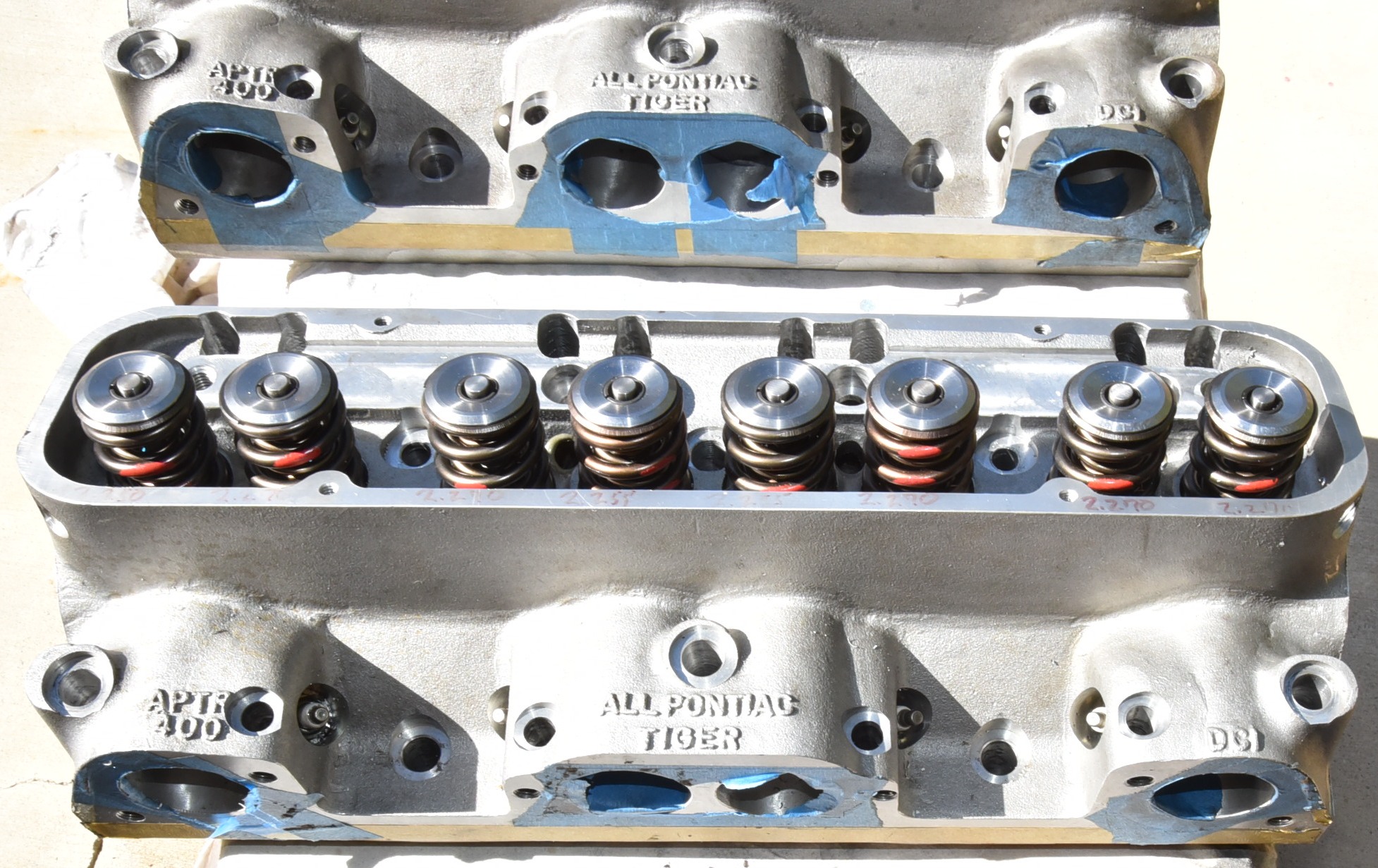

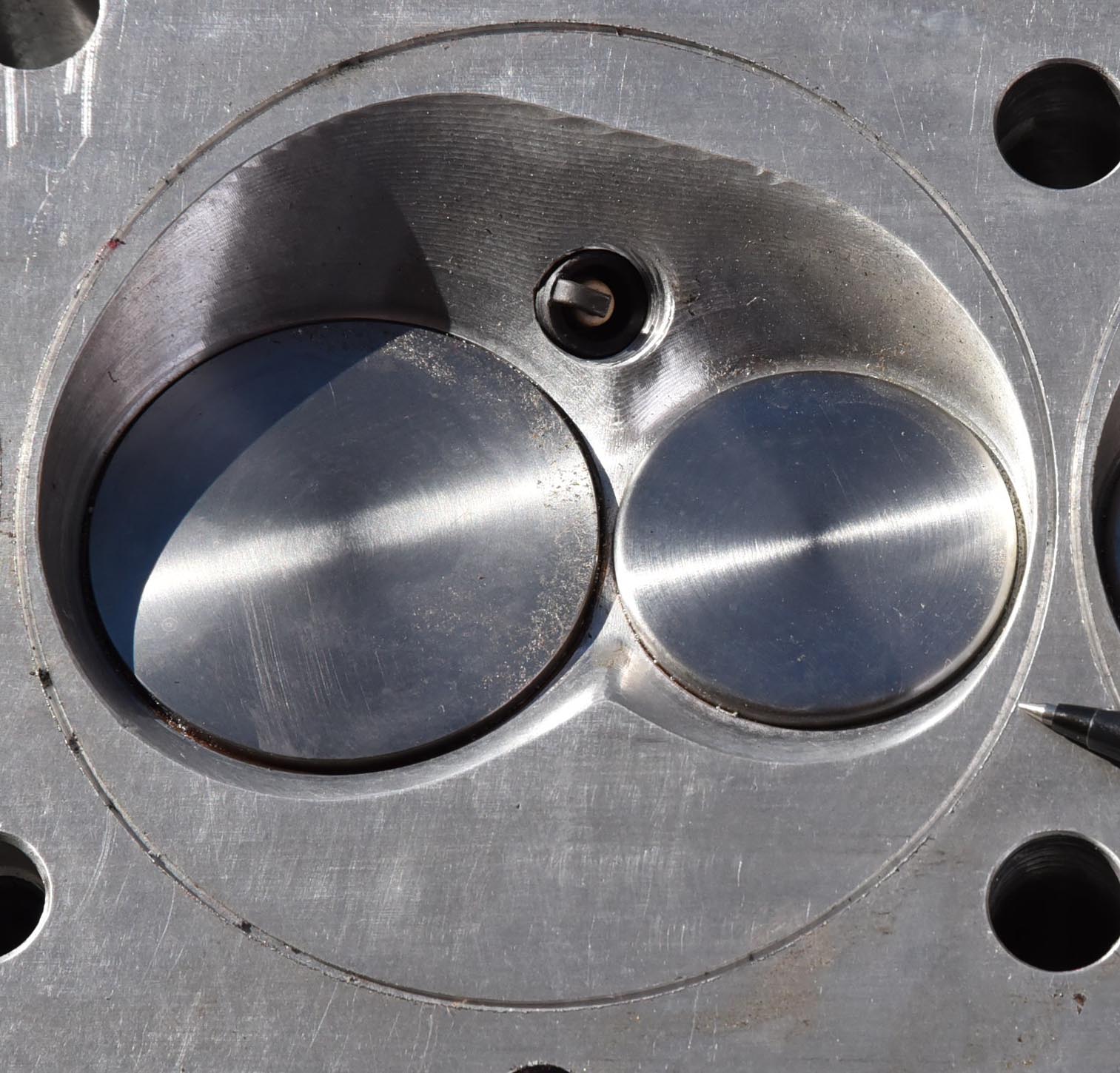

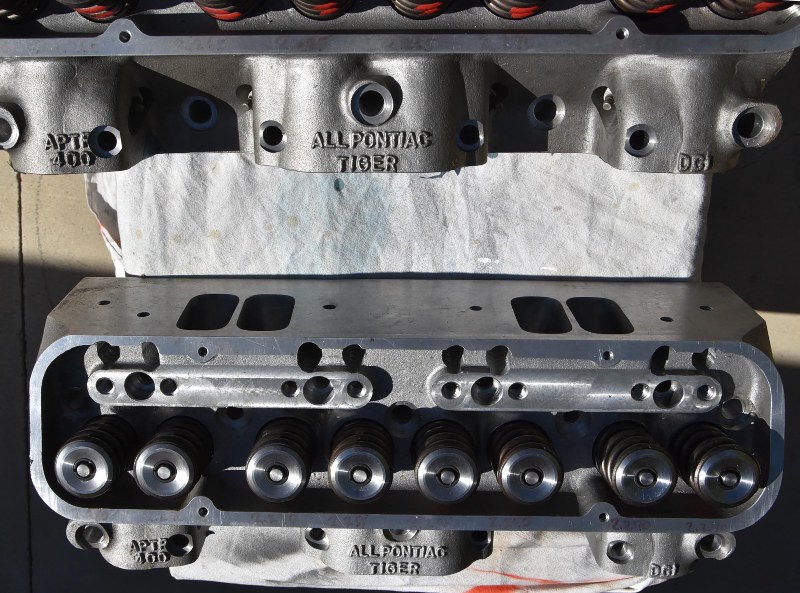

All Pontiac/Tiger Cylinder Heads


100% CNC ported, SOLID-no water jackets, 2.250" x 1.800"
stainless valves, CUBE seats, solid cam roller springs,
Titanium retainers, O-ring grooves

BACK TO PONTIAC PARTS PAGE



























































ROCKER ARMS
click on pictures to enlarge

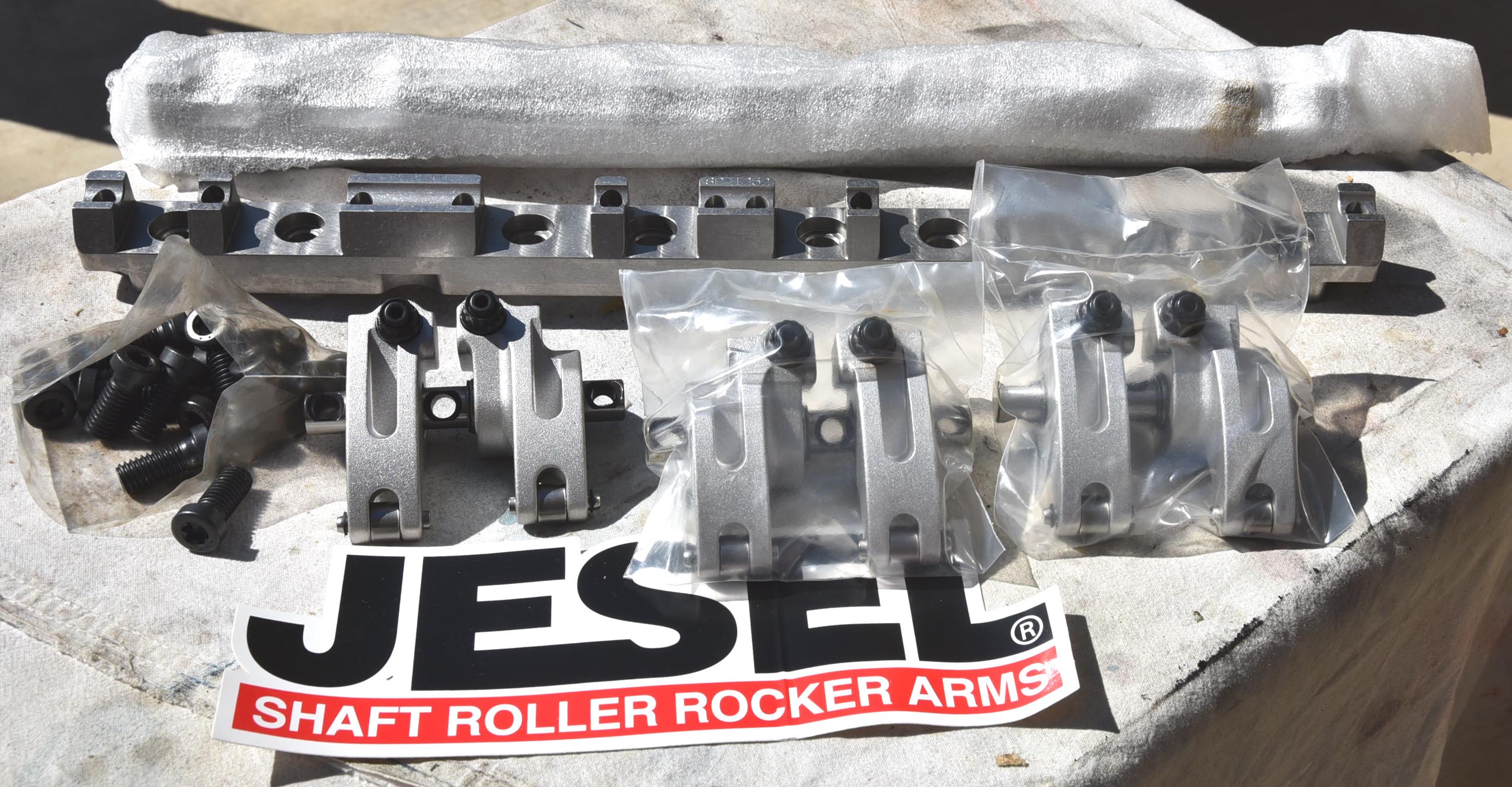

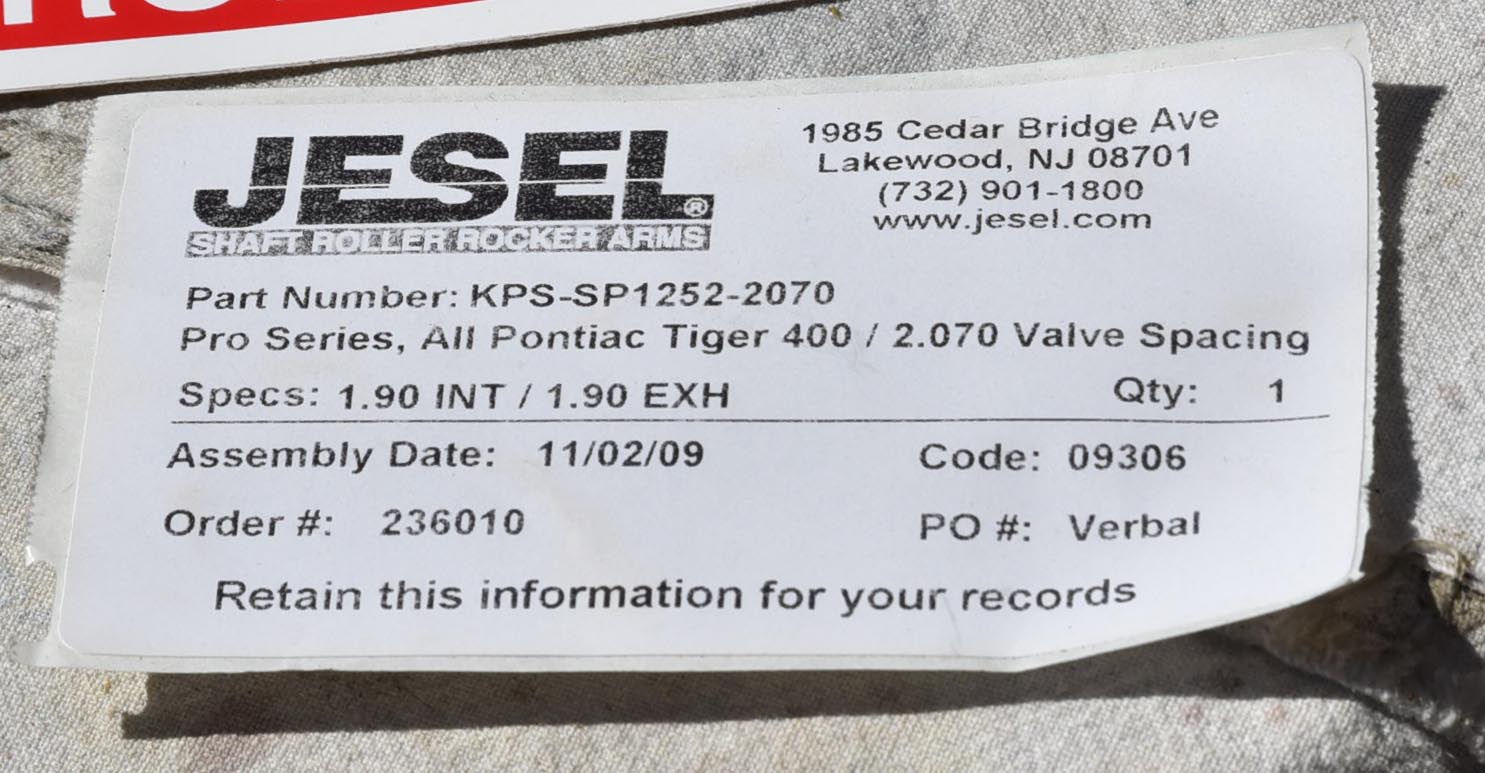

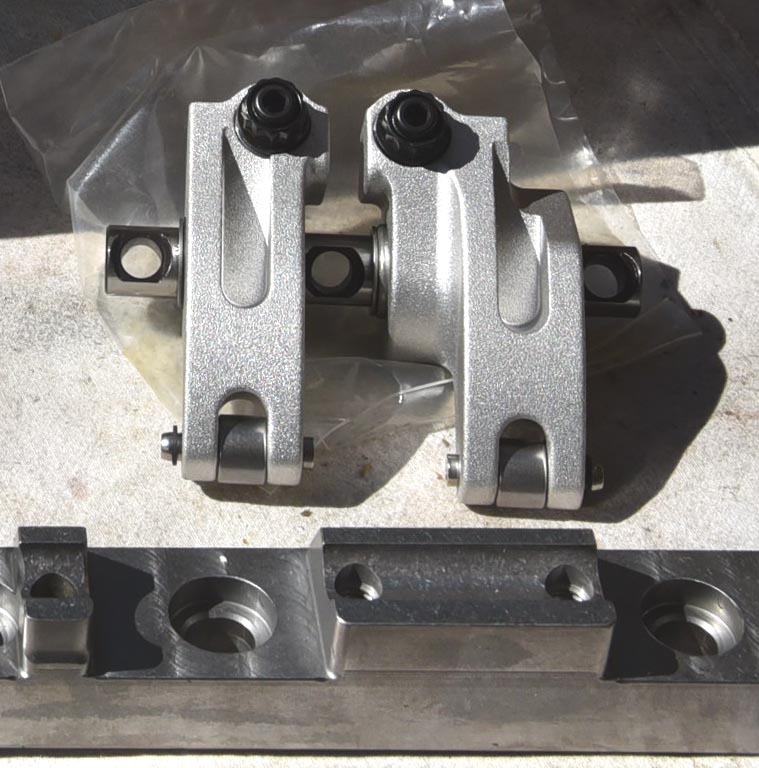

Jesel Shaft Roller Rocker Arms



New-never run, 1.90 INT / 1.90 EXH
Jesel# KPS-SP1252-2070

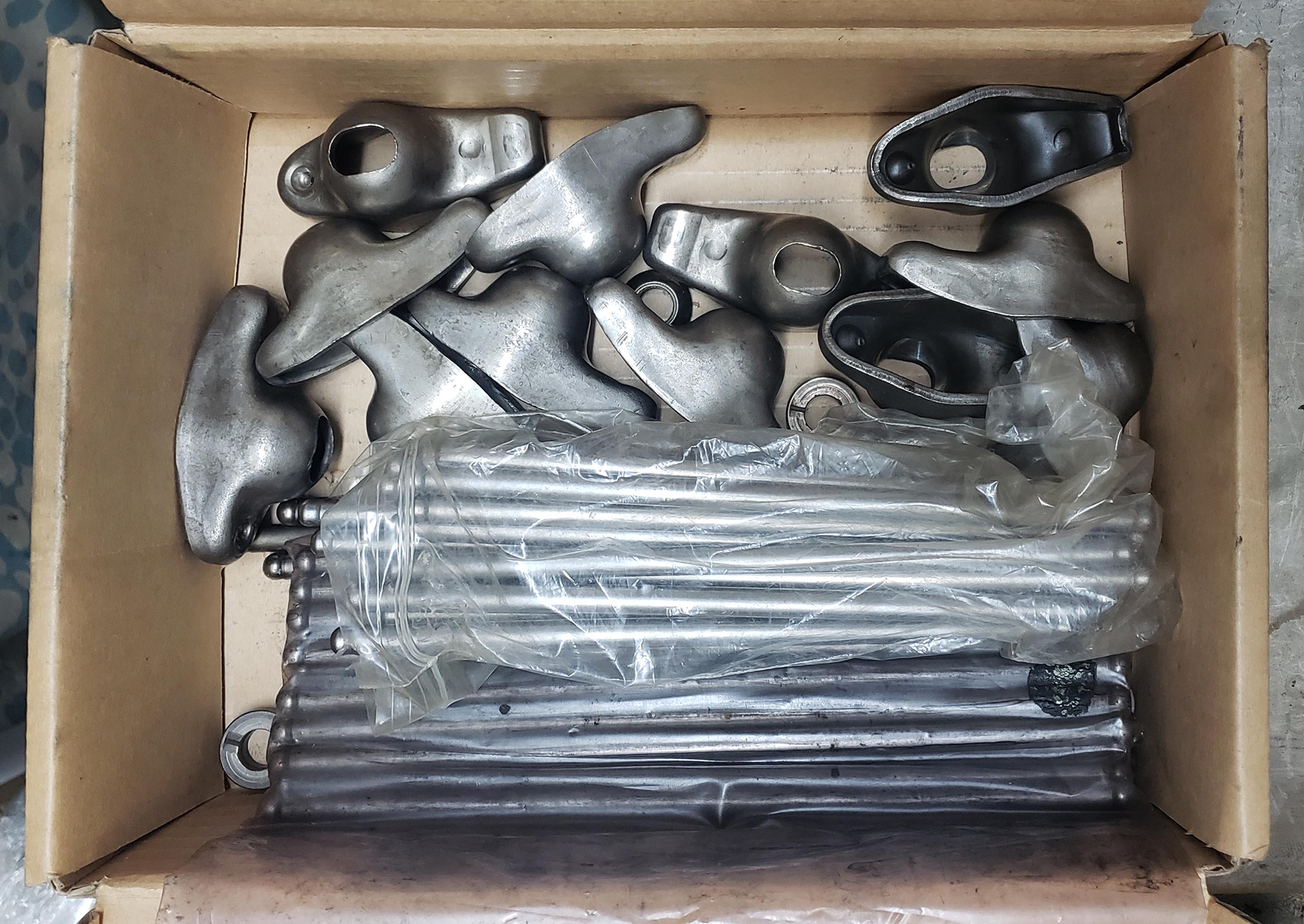

Used stock Pontiac with pushrods

BACK TO PONTIAC PARTS PAGE



























































ENGINE BLOCKS
click on pictures to enlarge

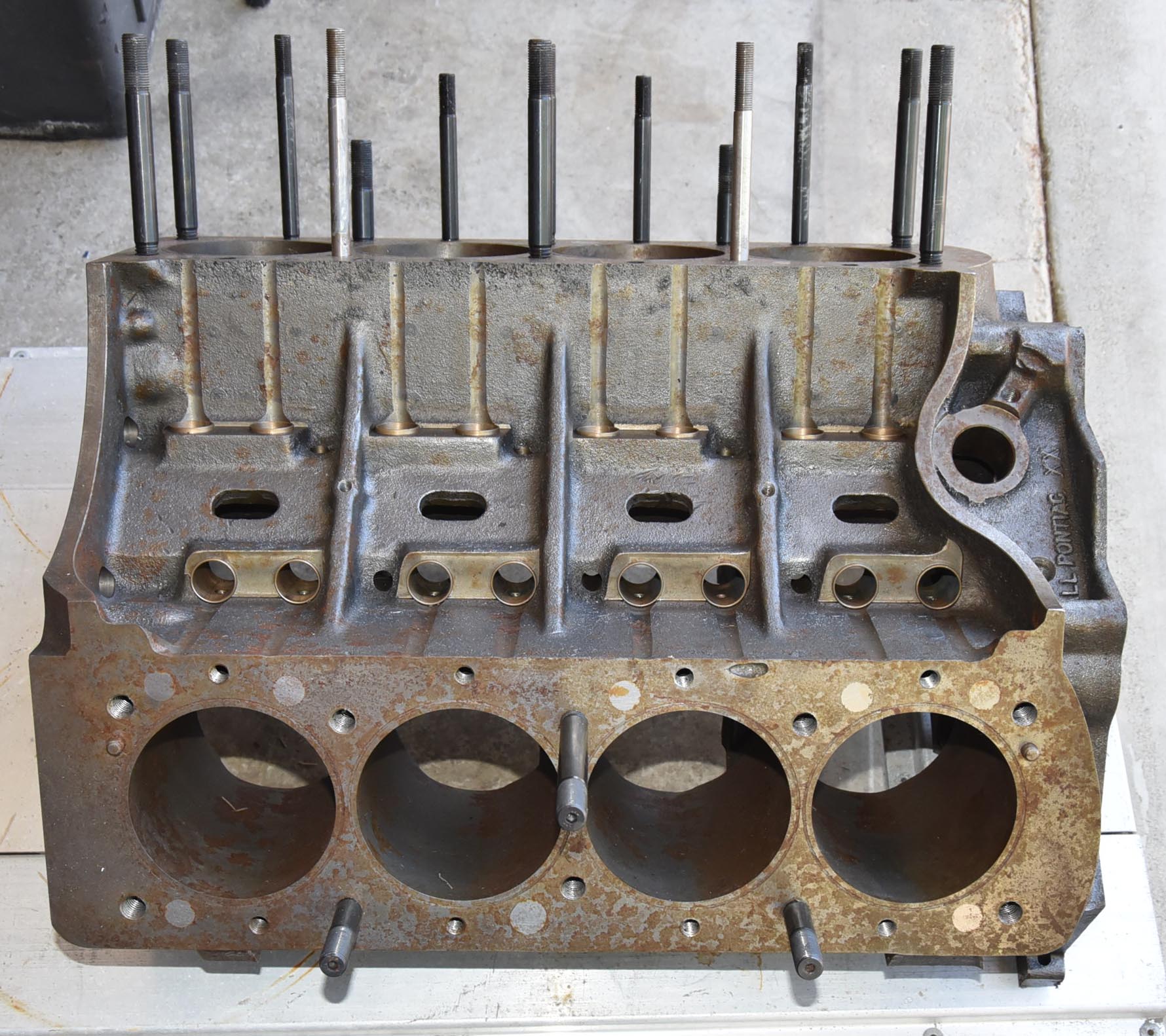

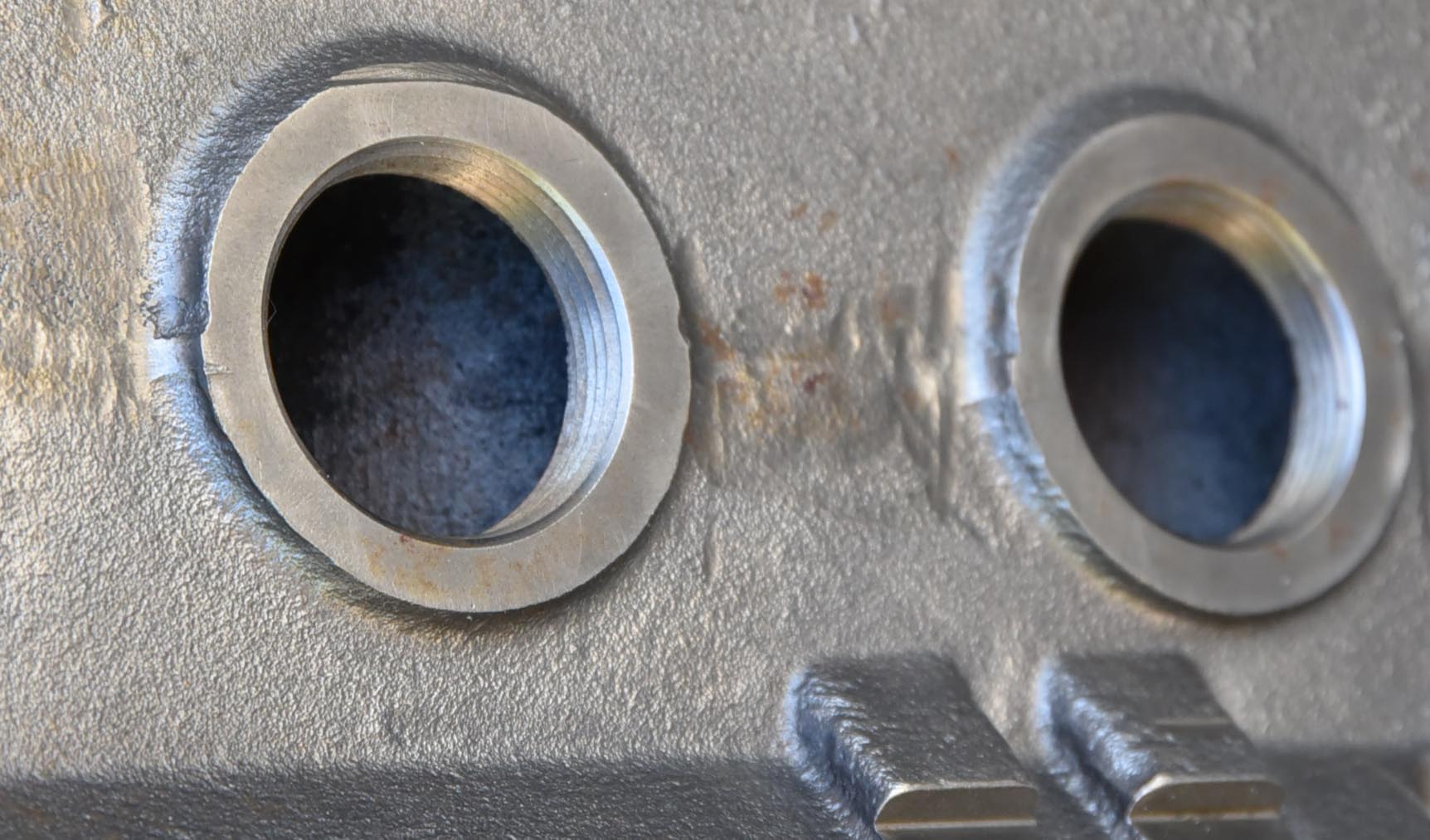

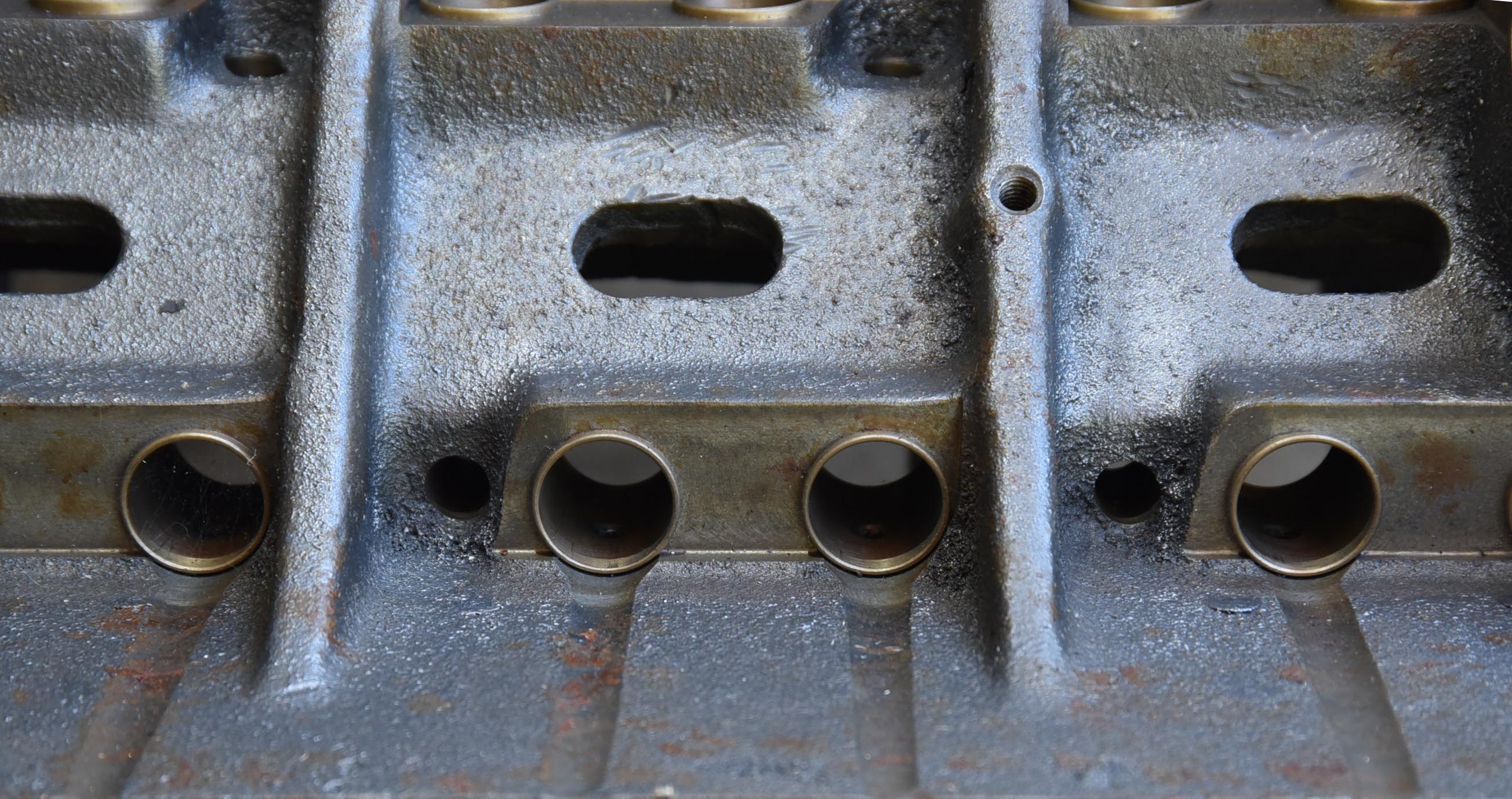

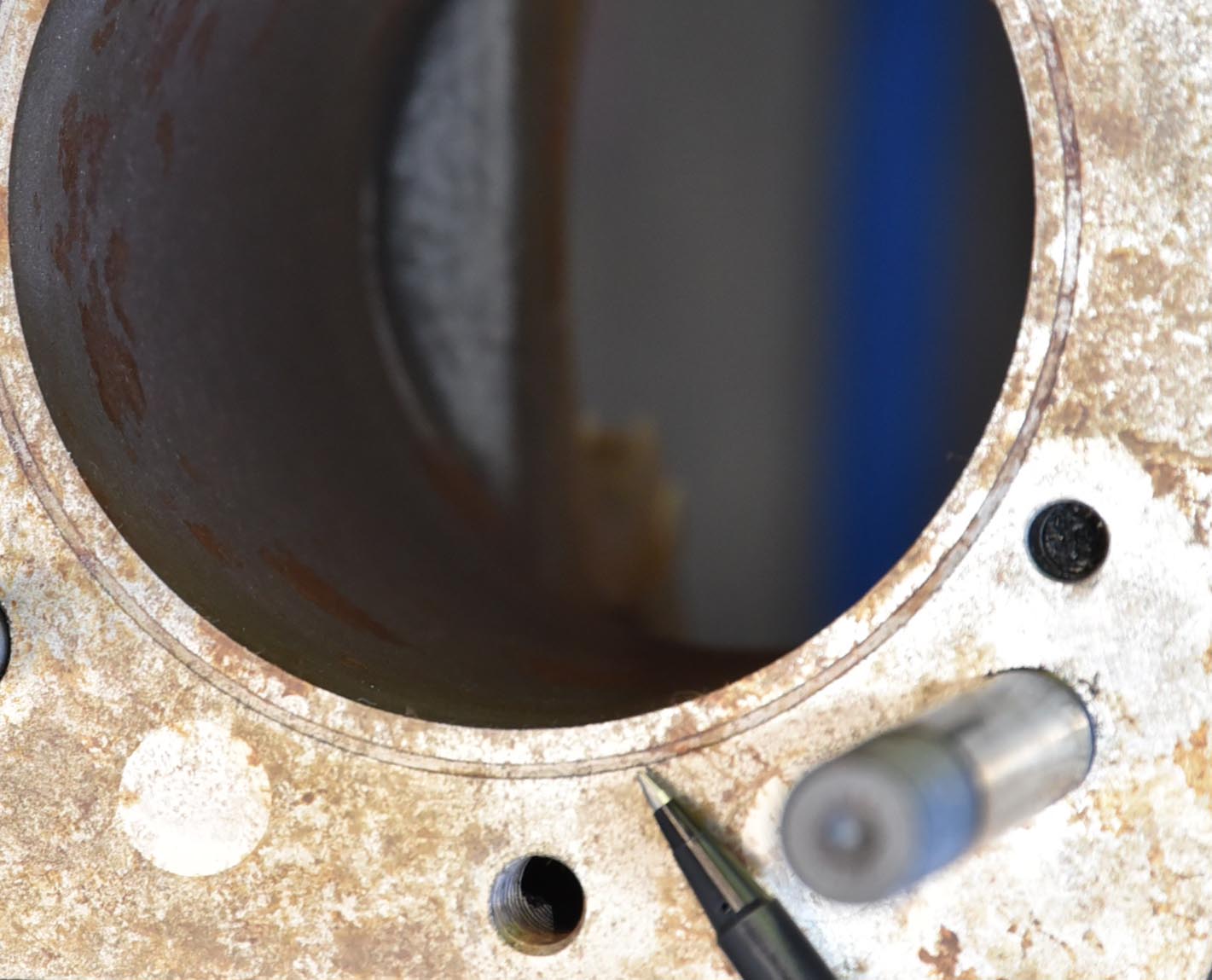

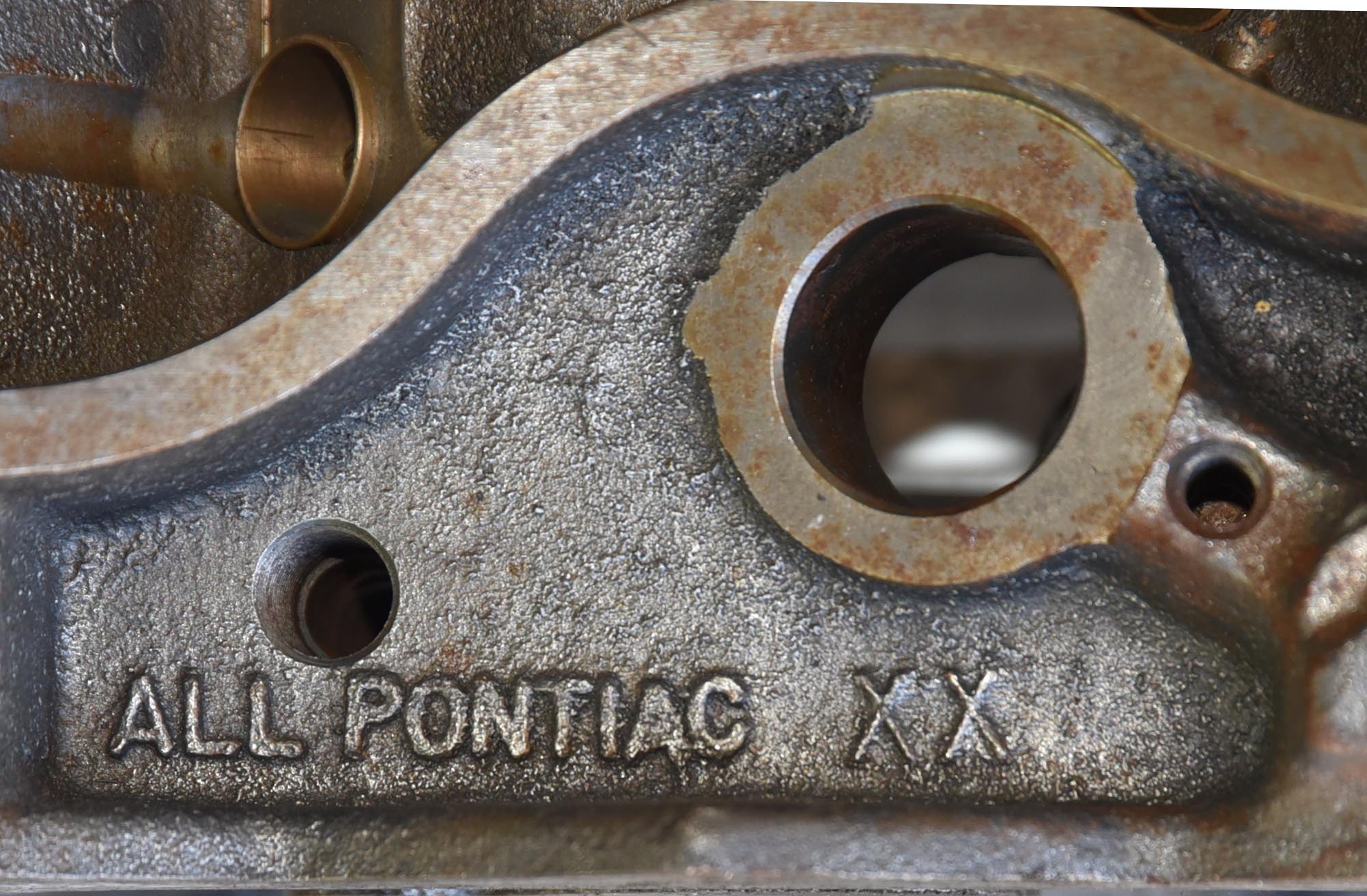

All Pontiac aftermarket engine block




New-never run, iron, water jackets but water transfer
holes are not drilled
, 4.195" bore, 10.300" deck
height, 4 bolt & dowel pinned mains, .904" bronze
lifter bushings, receiver grooves, threaded freeze plugs

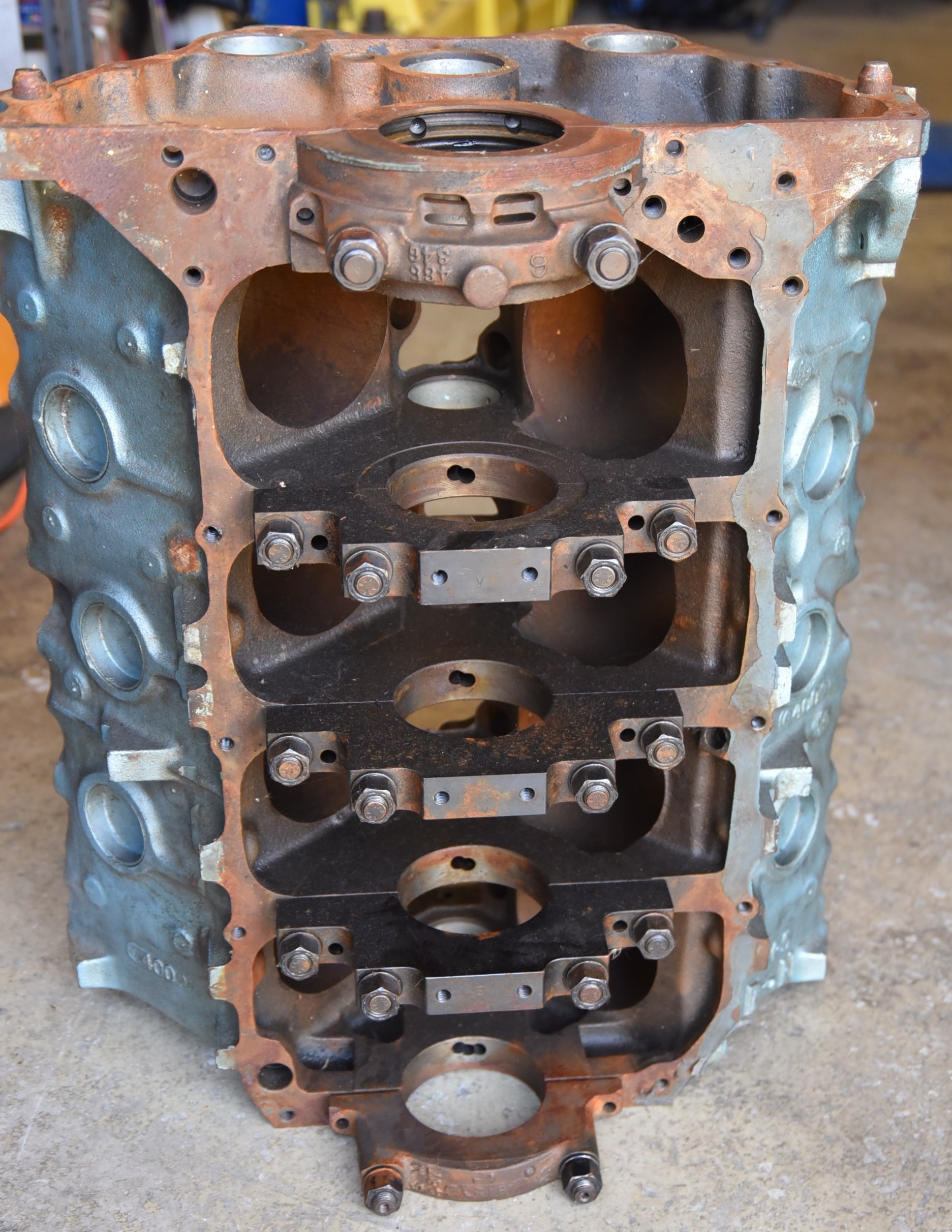

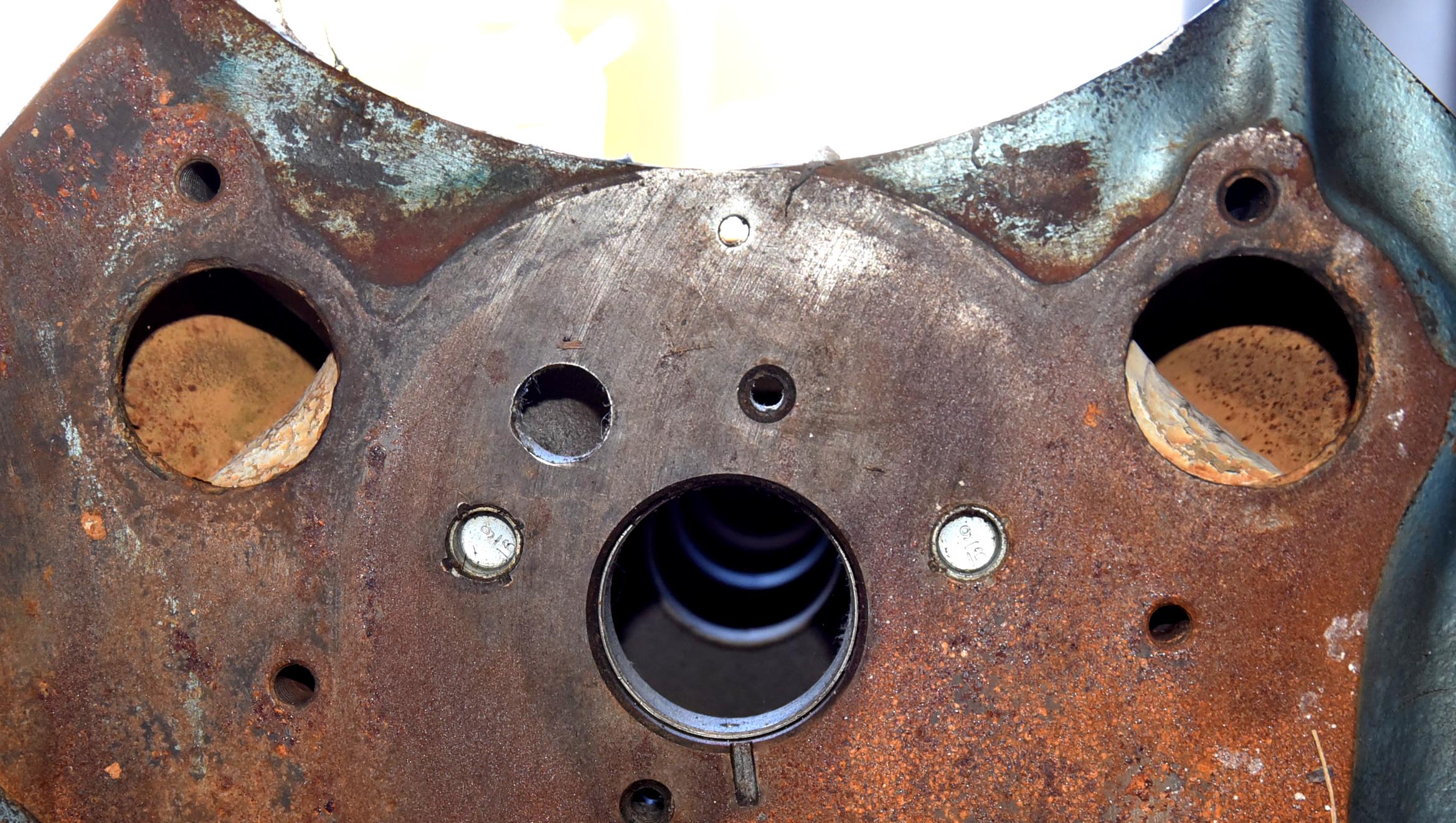

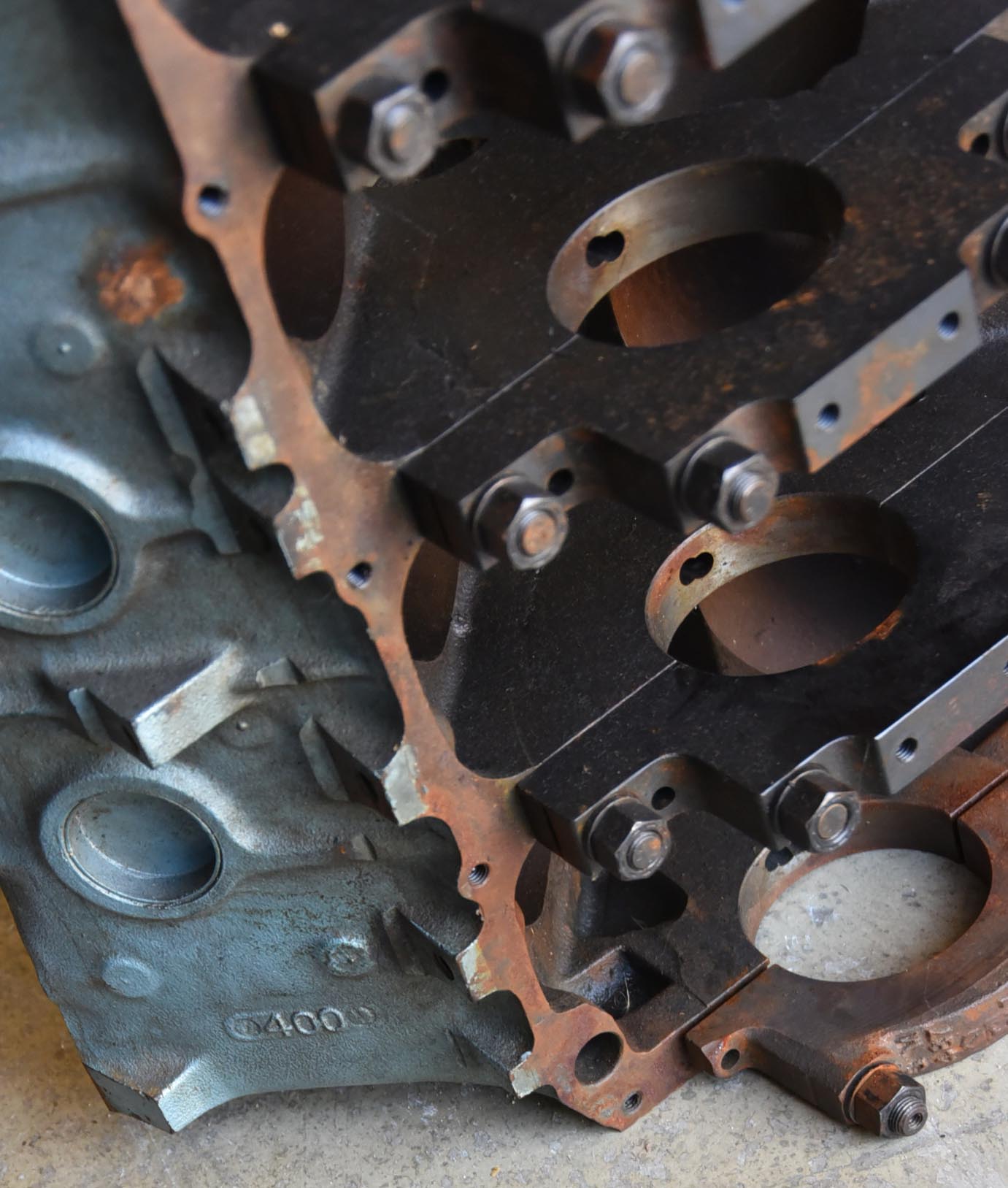

O.E.M. Pontiac engine block

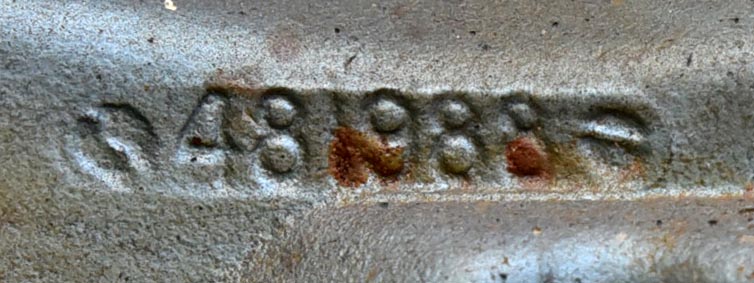

Used 400 block, cstg# 481988, 4.185" bore,
10.240" deck height, block filler, 4 bolt mains

BACK TO PONTIAC PARTS PAGE






















































PISTONS
click on pictures to enlarge

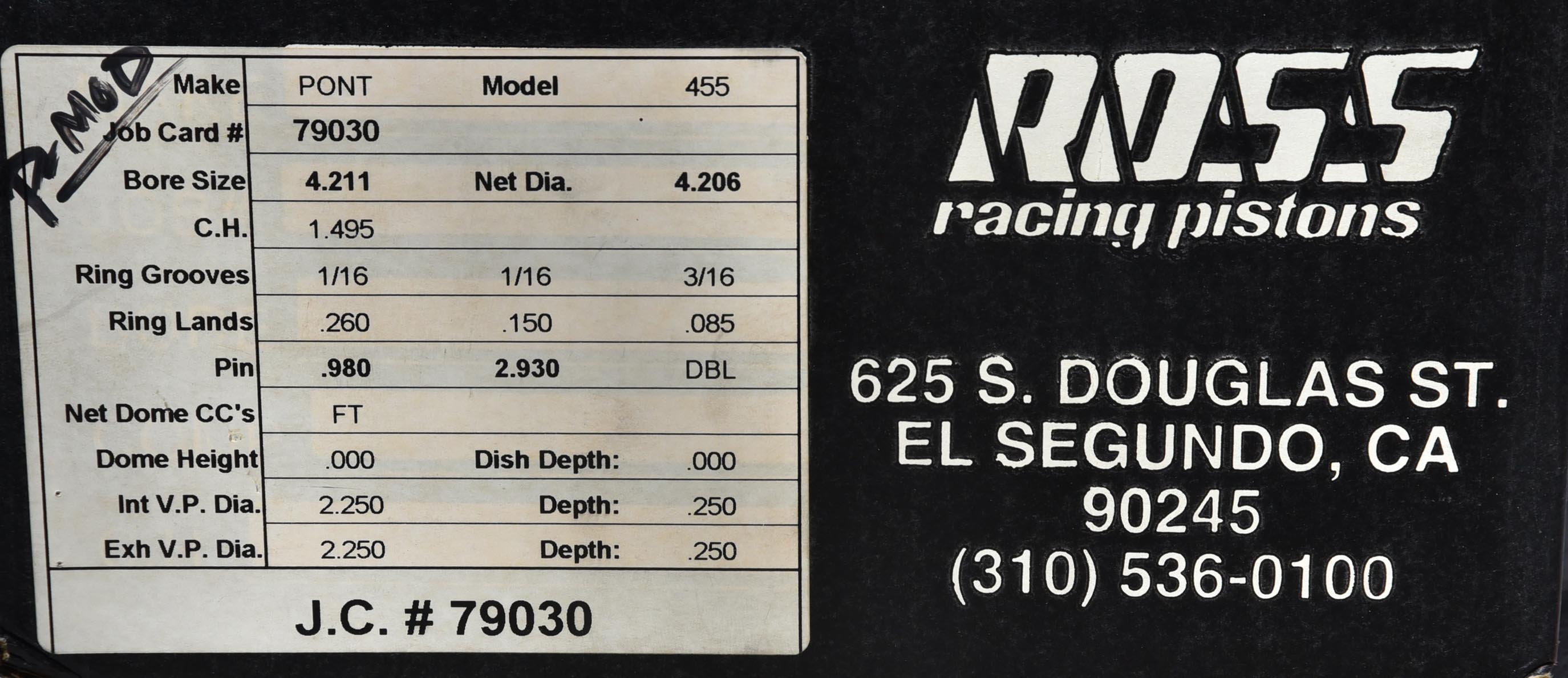

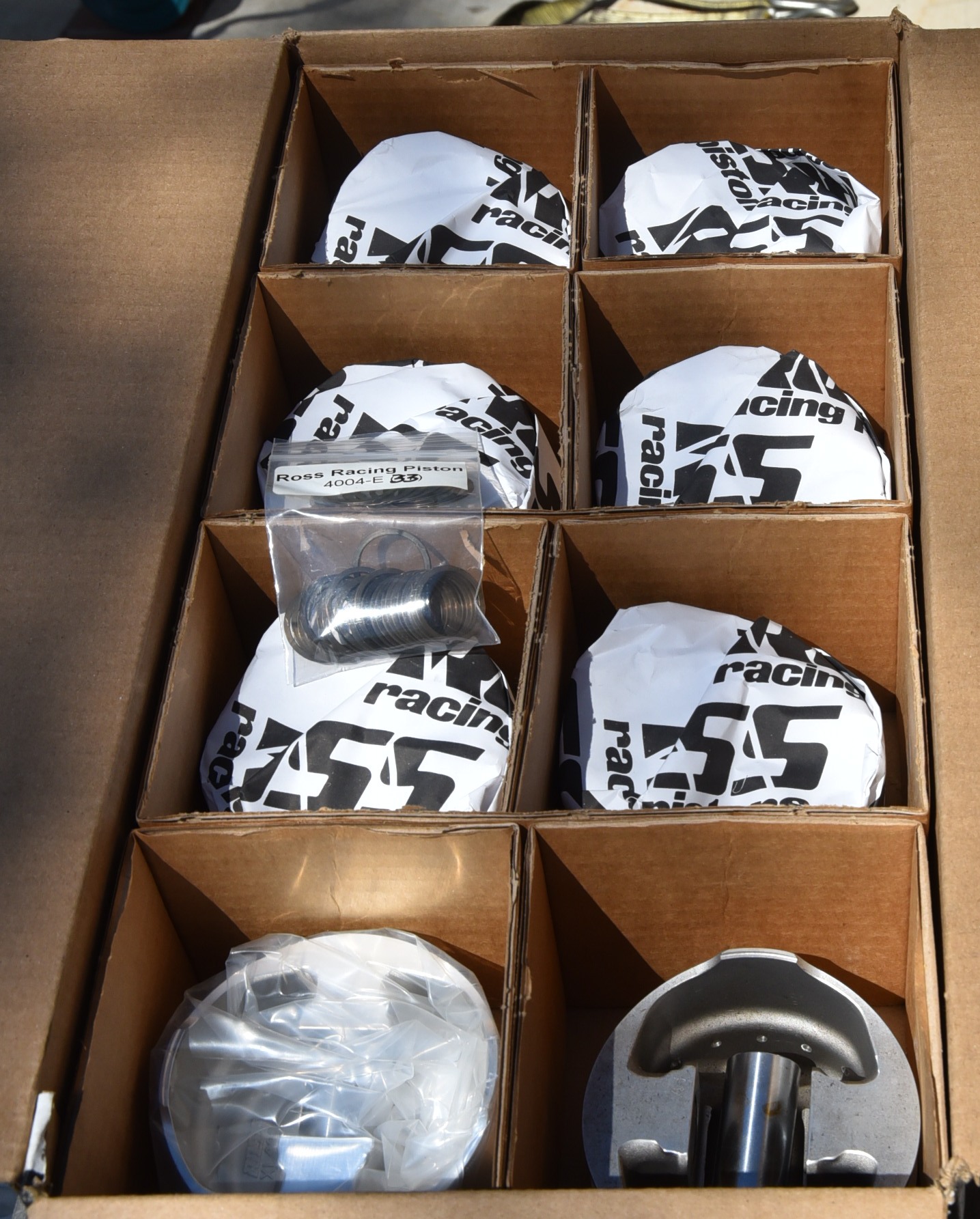

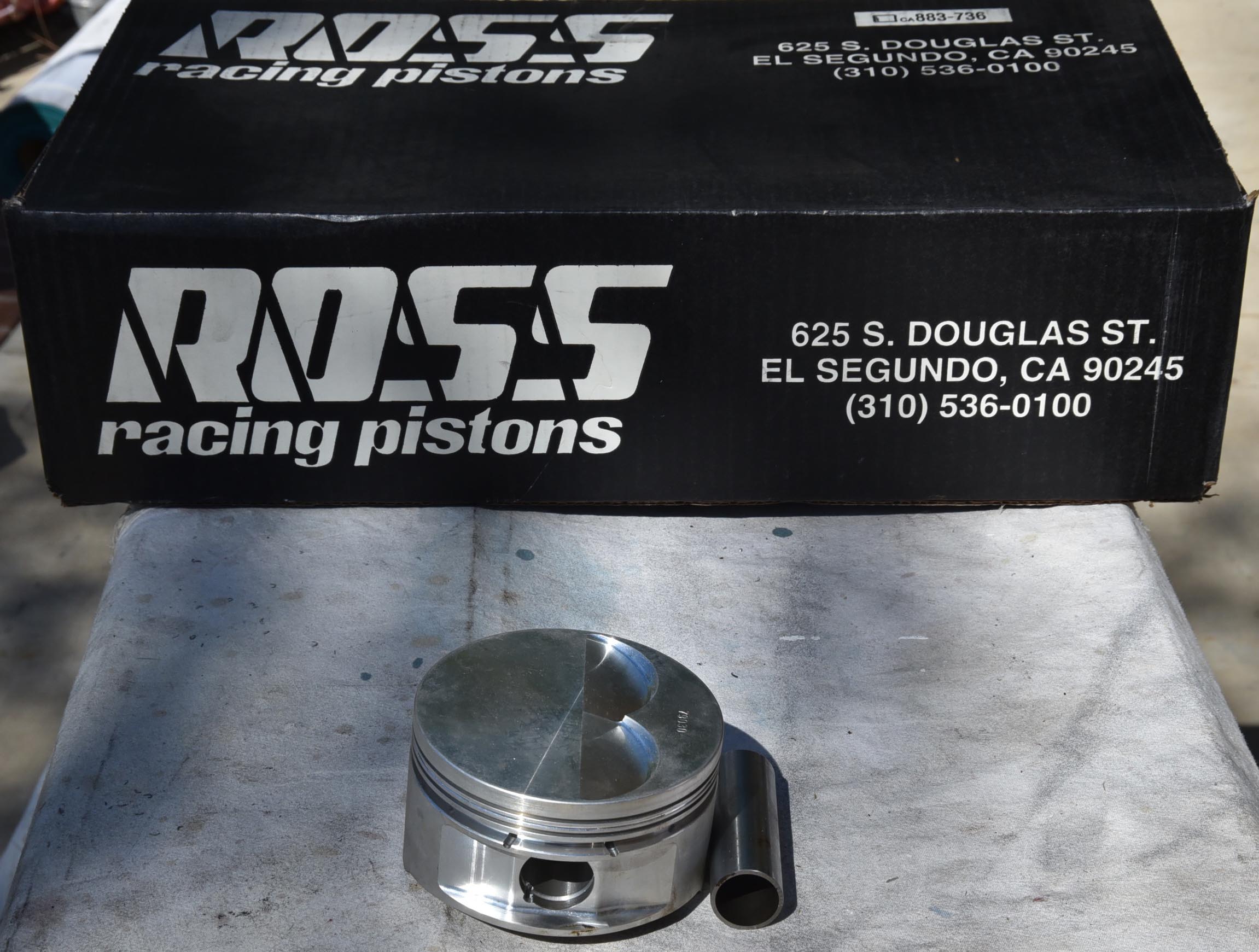

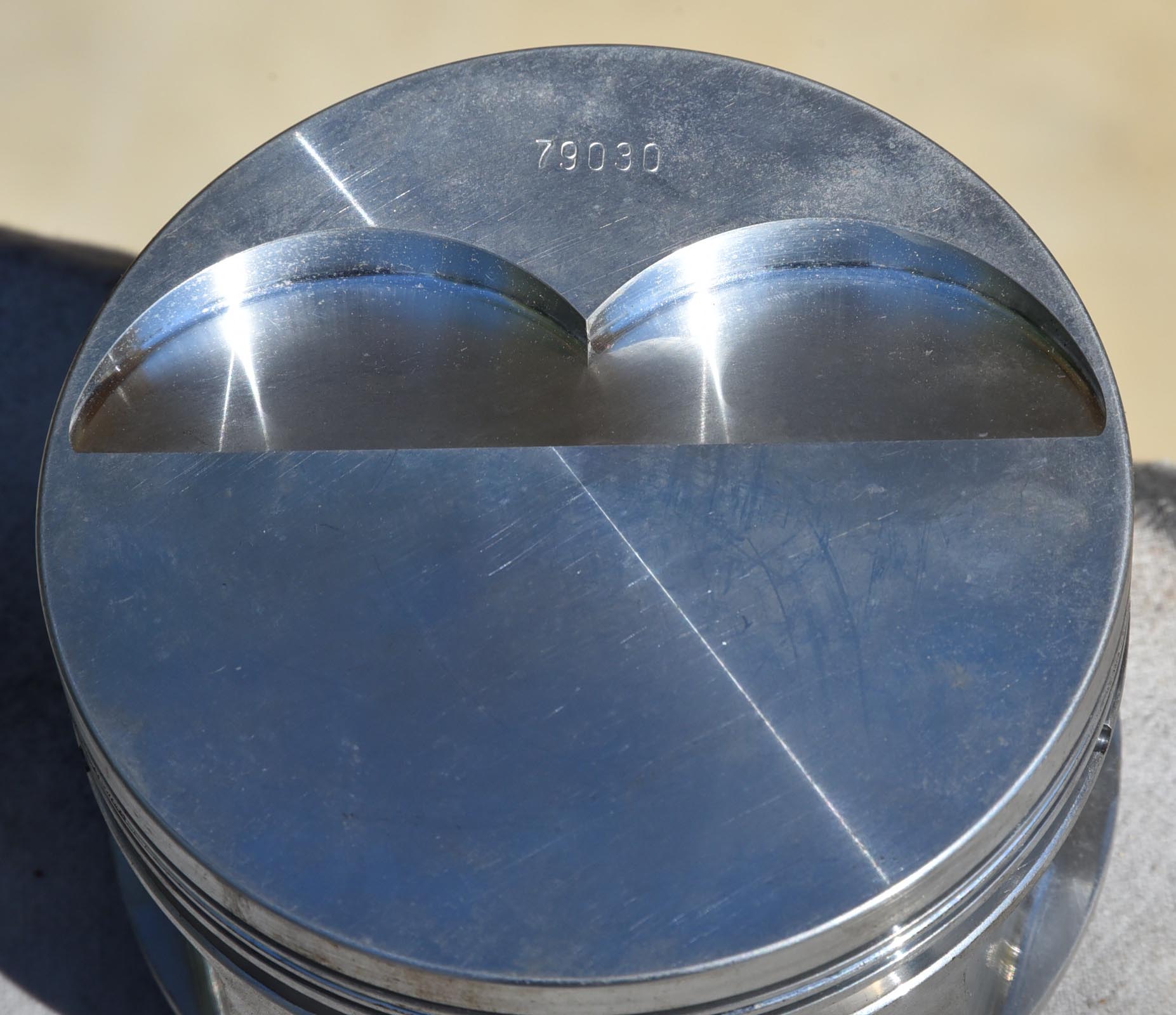

Ross Racing Pistons


New-never installed, 4.211" bore, flat top
1.495" comp height, .980" floating pins

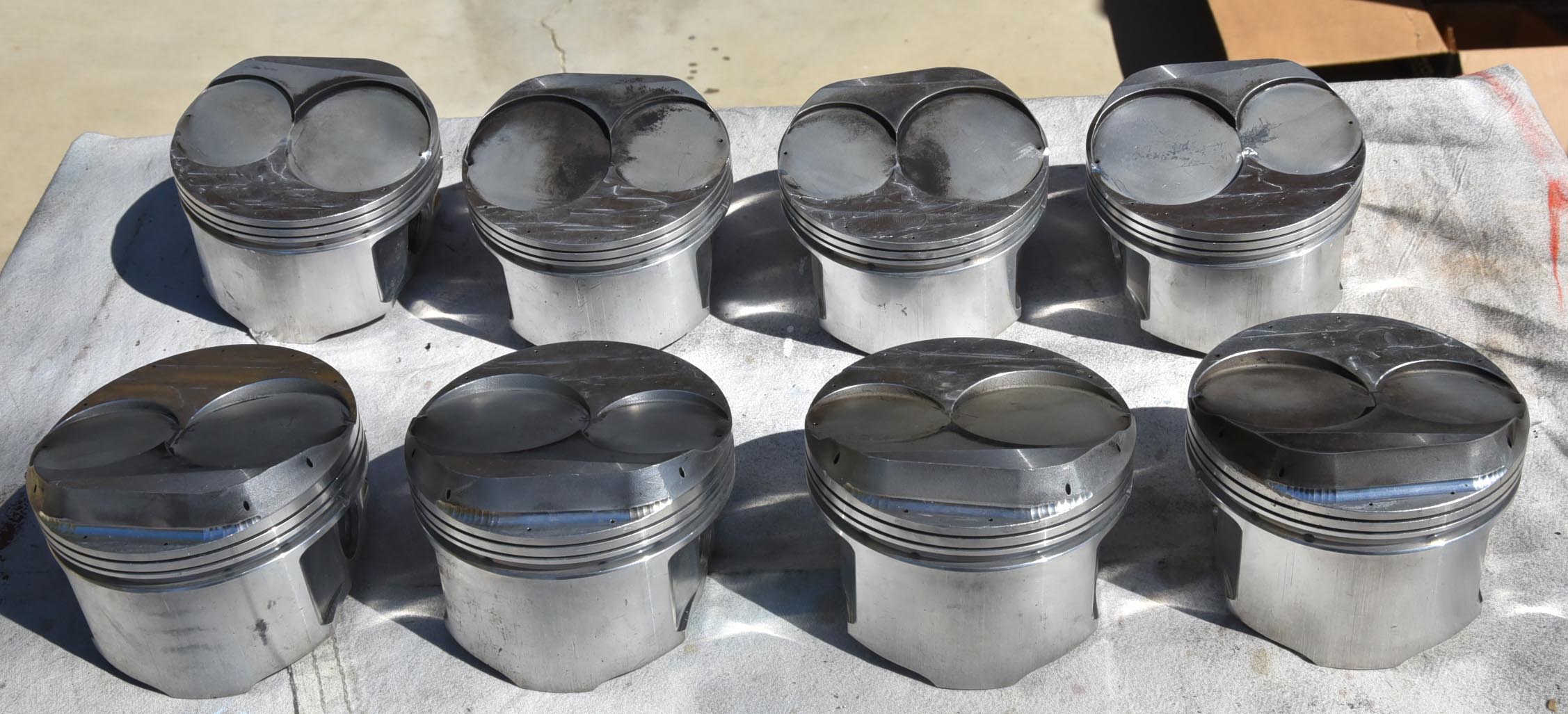

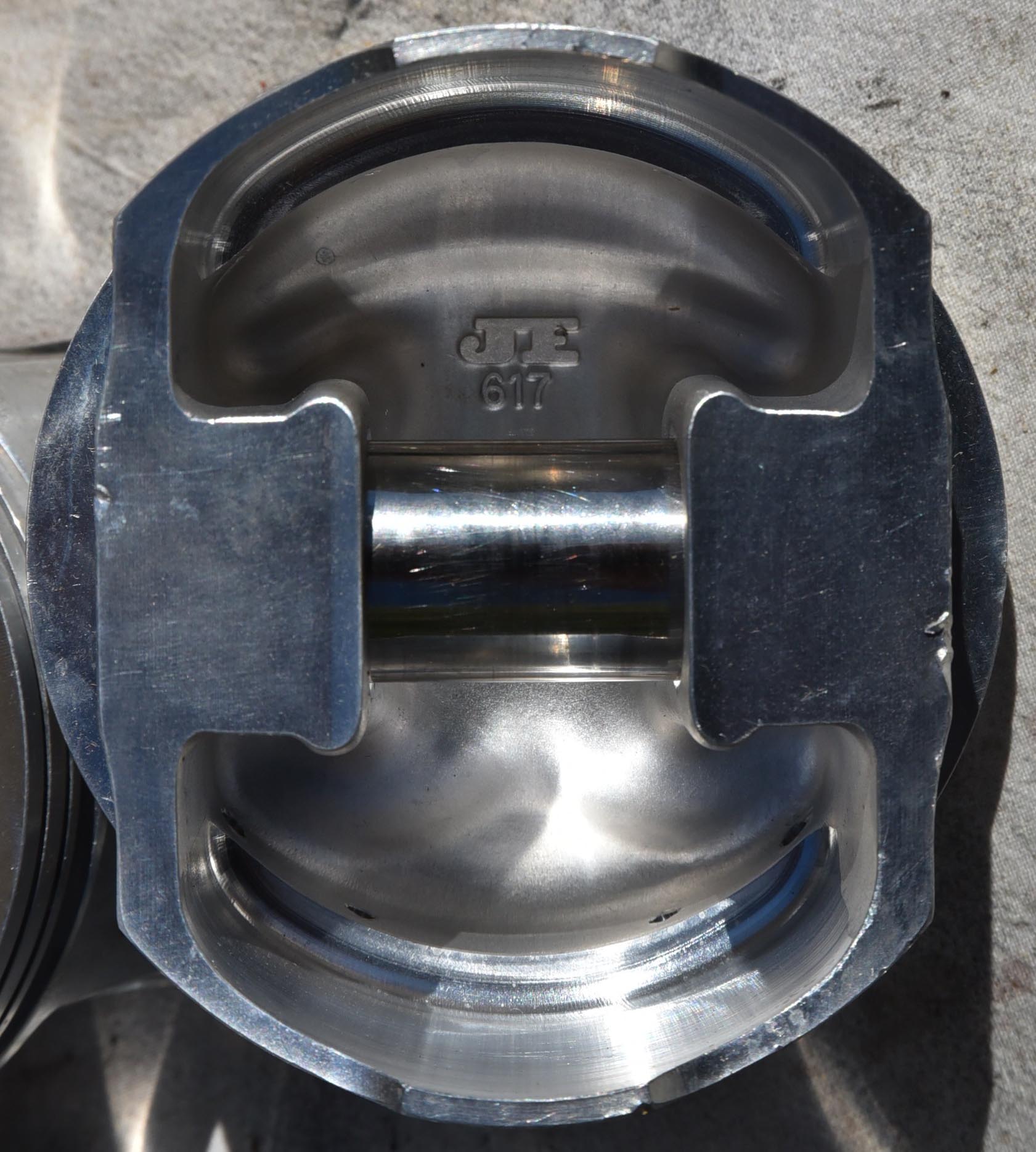

JE Racing Pistons



Used, 4.185" bore, domed, .980" floating pins

BACK TO PONTIAC PARTS PAGE























































CRANKSHAFTS
There are 6 crankshafts available
click on pictures to enlarge

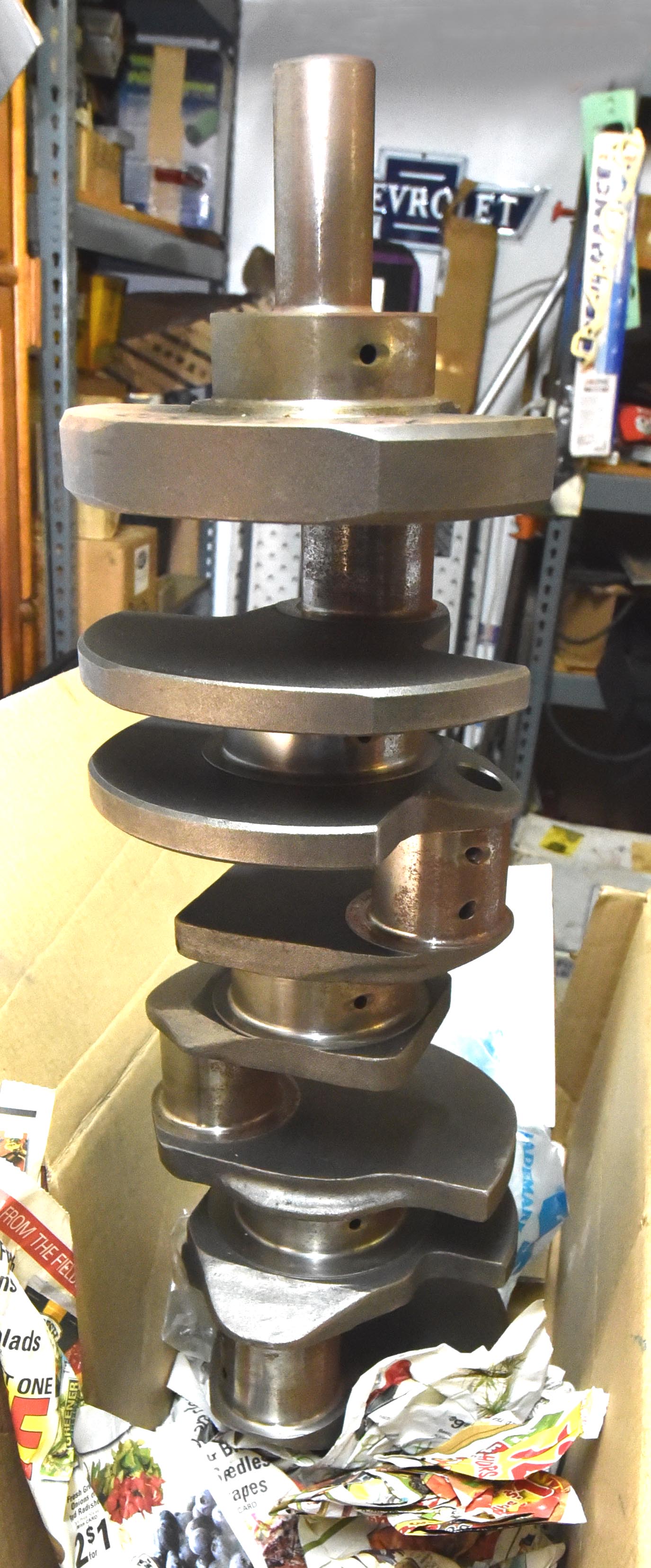

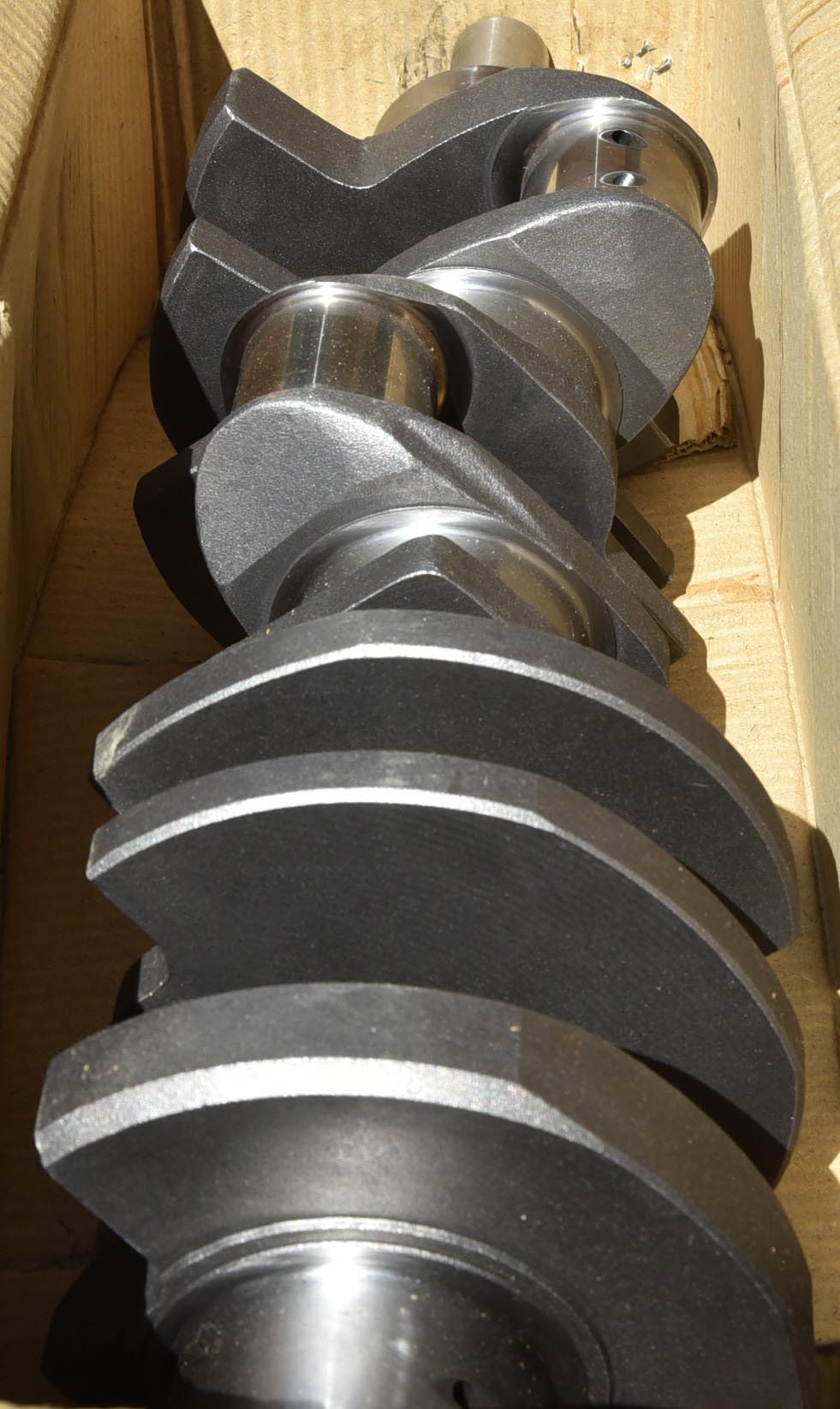

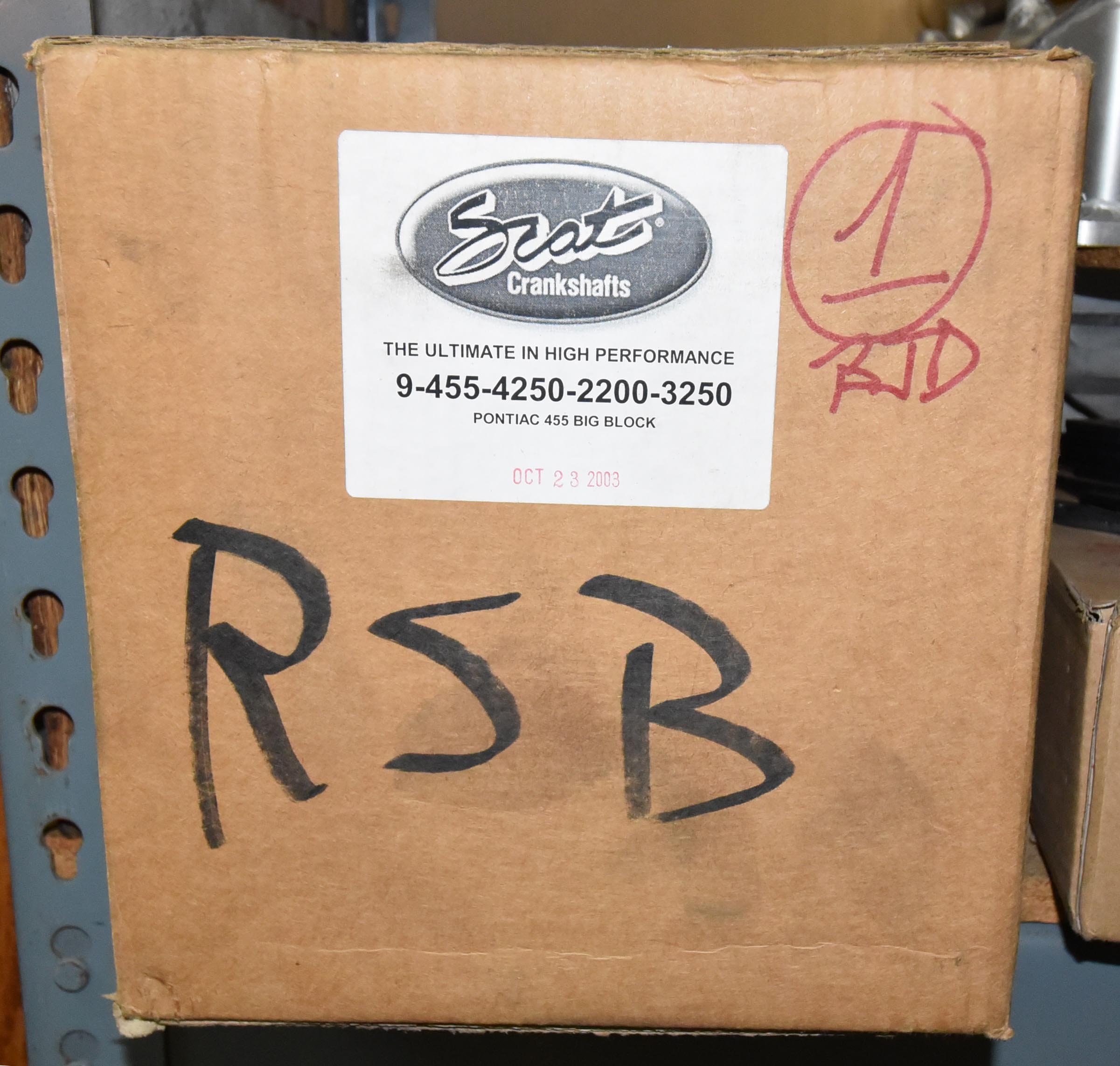

SCAT Crankshaft #1



New-in box, never opened, cast iron, 4.250" x 2.200" x 3.250"
SCAT# 9-455-4250-2200-3250
Chev BB rod journal dia


SCAT Crankshaft #2


New-in box, opened, cast iron, 4.210" x 2.249" x 3.250"
SCAT#
9-455-4210-2249325R2

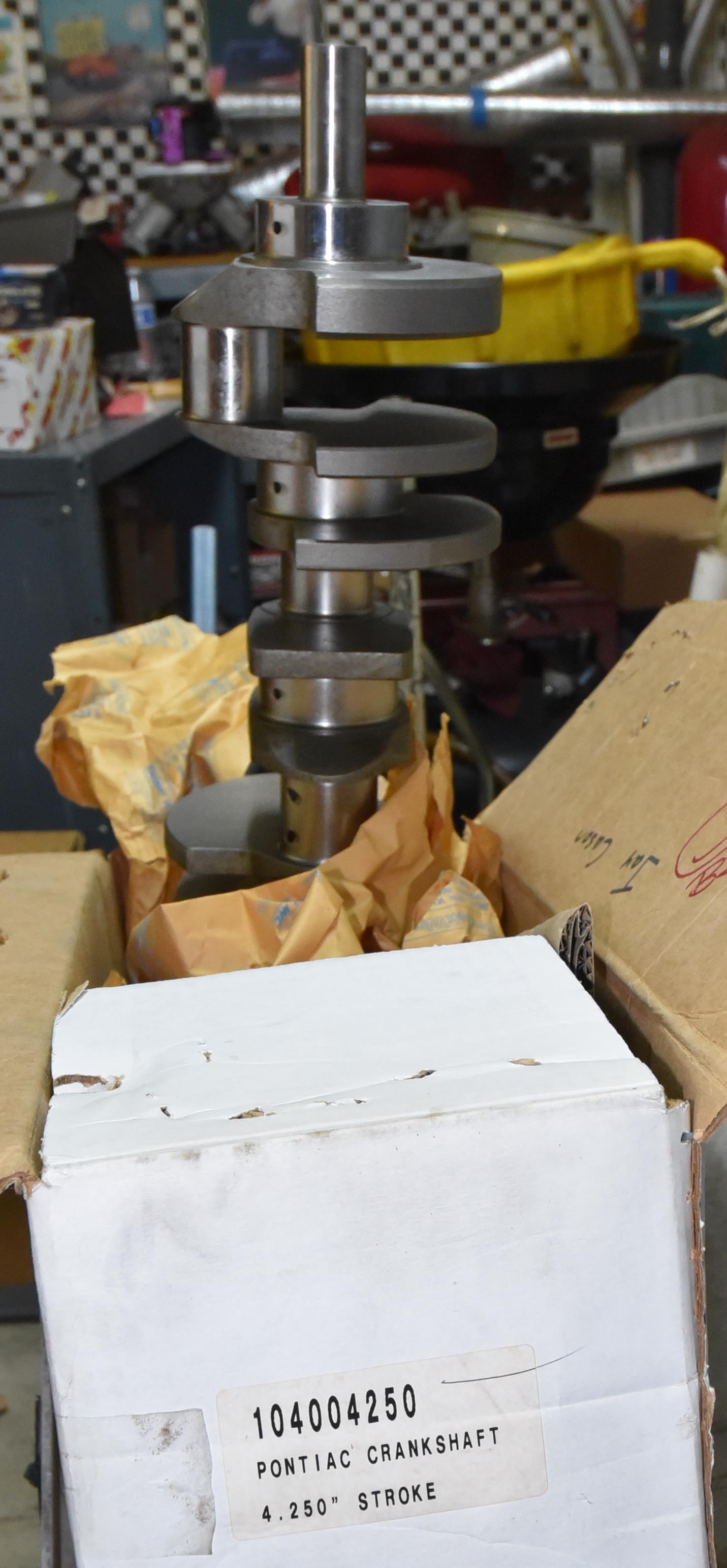

Eagle Crankshaft


New-in box, opened, cast iron, 4.250" x 2.200" x 3.250"
Eagle# 104004250
Chev BB rod journal dia


Unknown Crankshaft


Cast iron, 4.210" x 2.250" x 3.250", slightly rusty

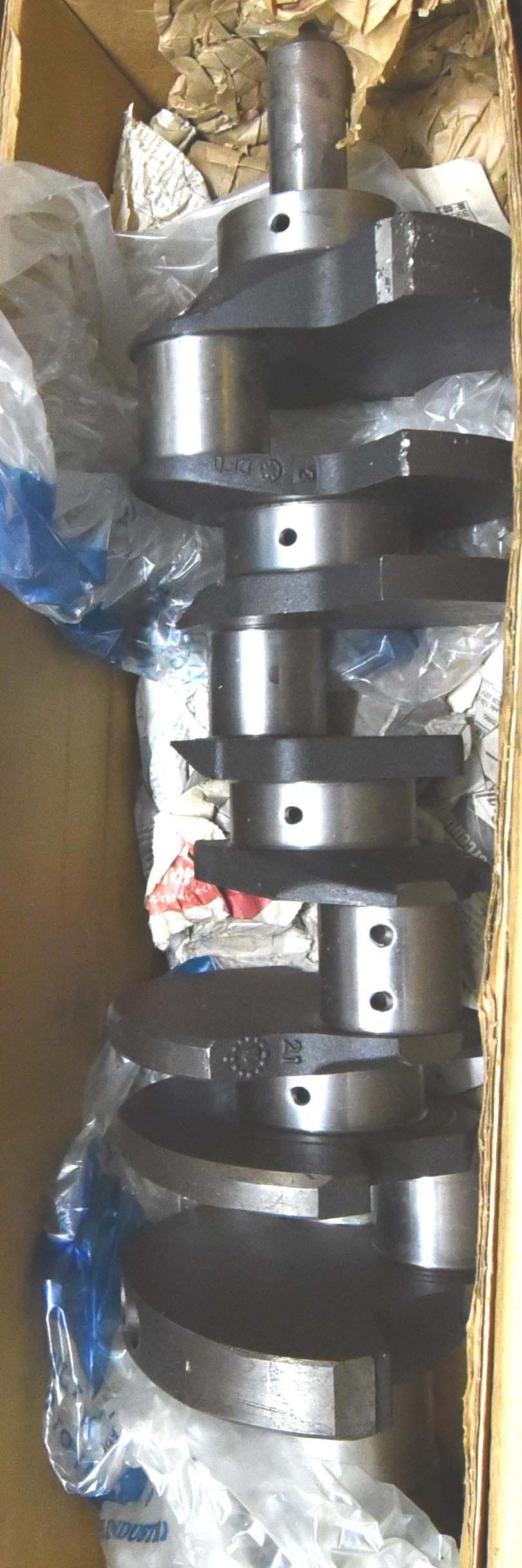

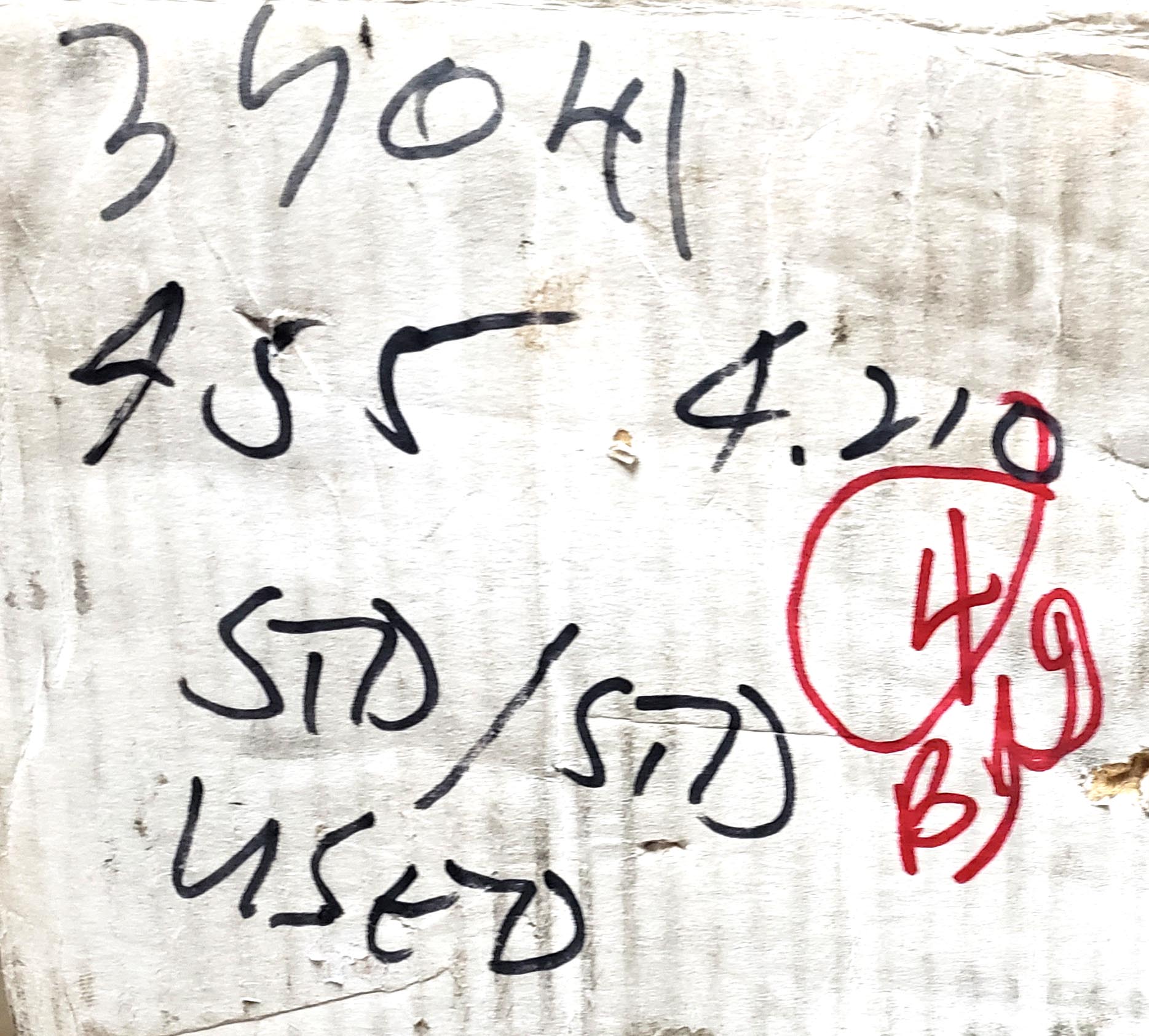

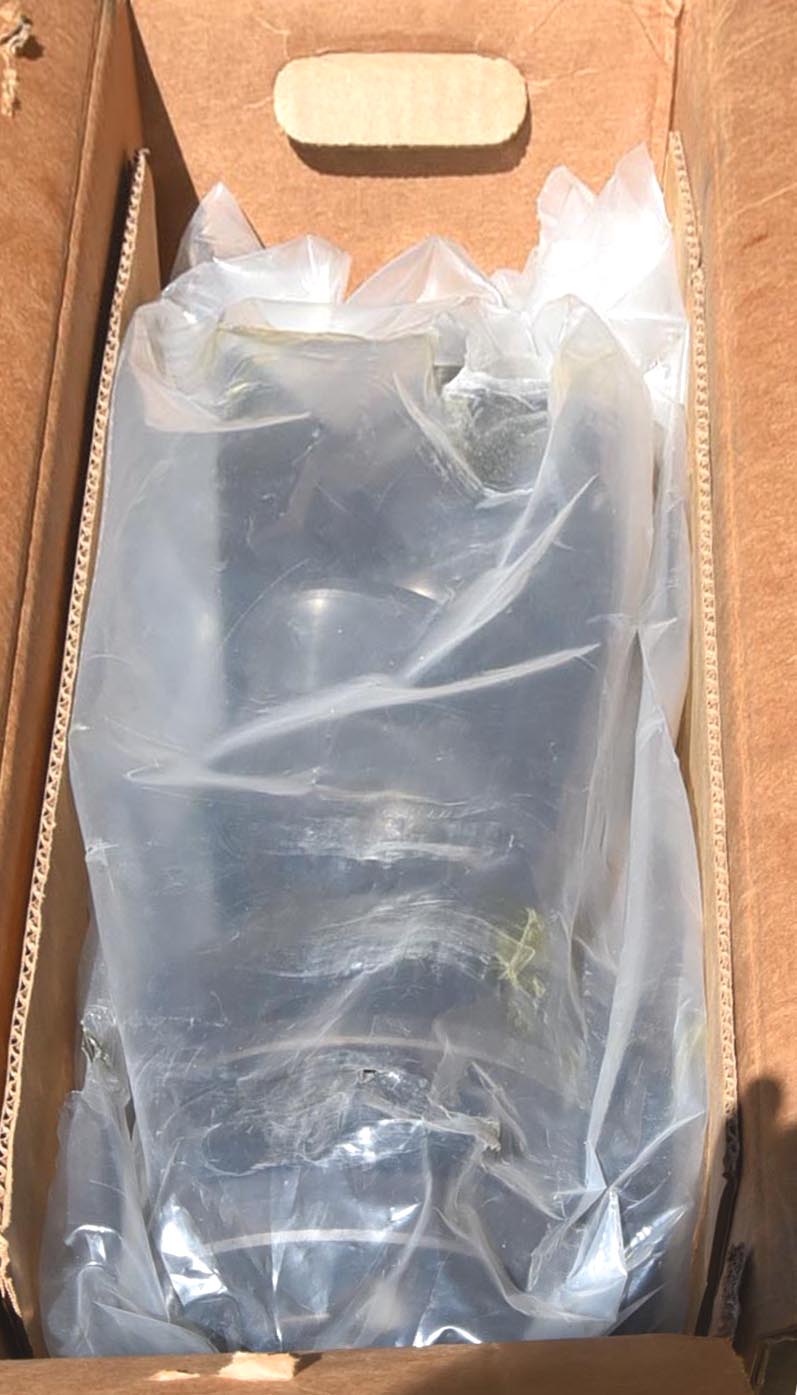

O.E.M. Cast #1


O.E.M. cast iron, 4.210" x 2.250" x 3.250", std


O.E.M. Cast #2


O.E.M. cast iron, 4.210" x 2.220" x 3.230", 20-20
NOTE: Although in an Eagle box marked std/std this is an
O.E.M. cast iron crank that is .020" under on both mains & rods

BACK TO PONTIAC PARTS PAGE























































CONNECTING RODS
click on pictures to enlarge

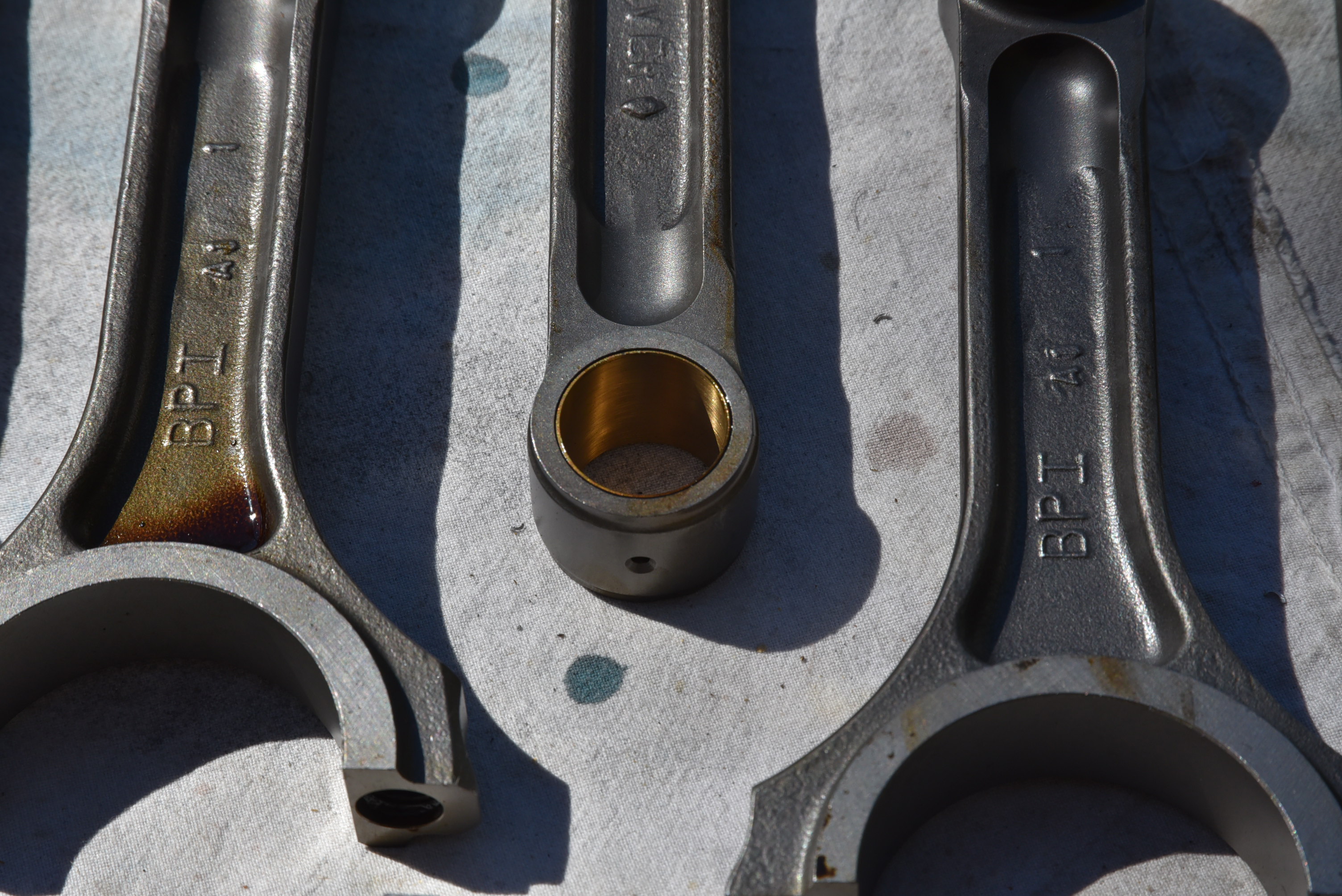

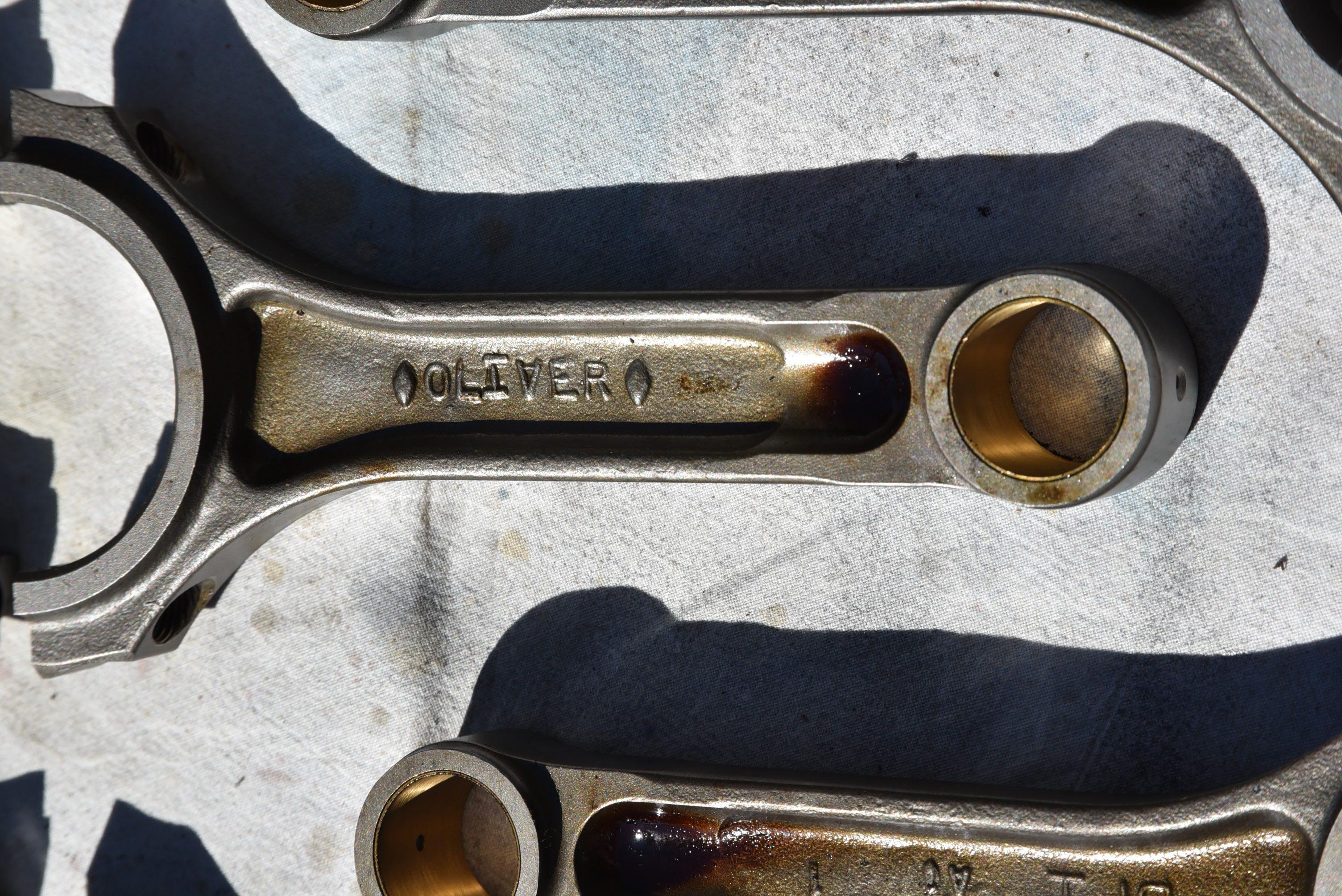

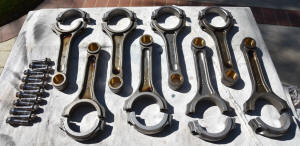

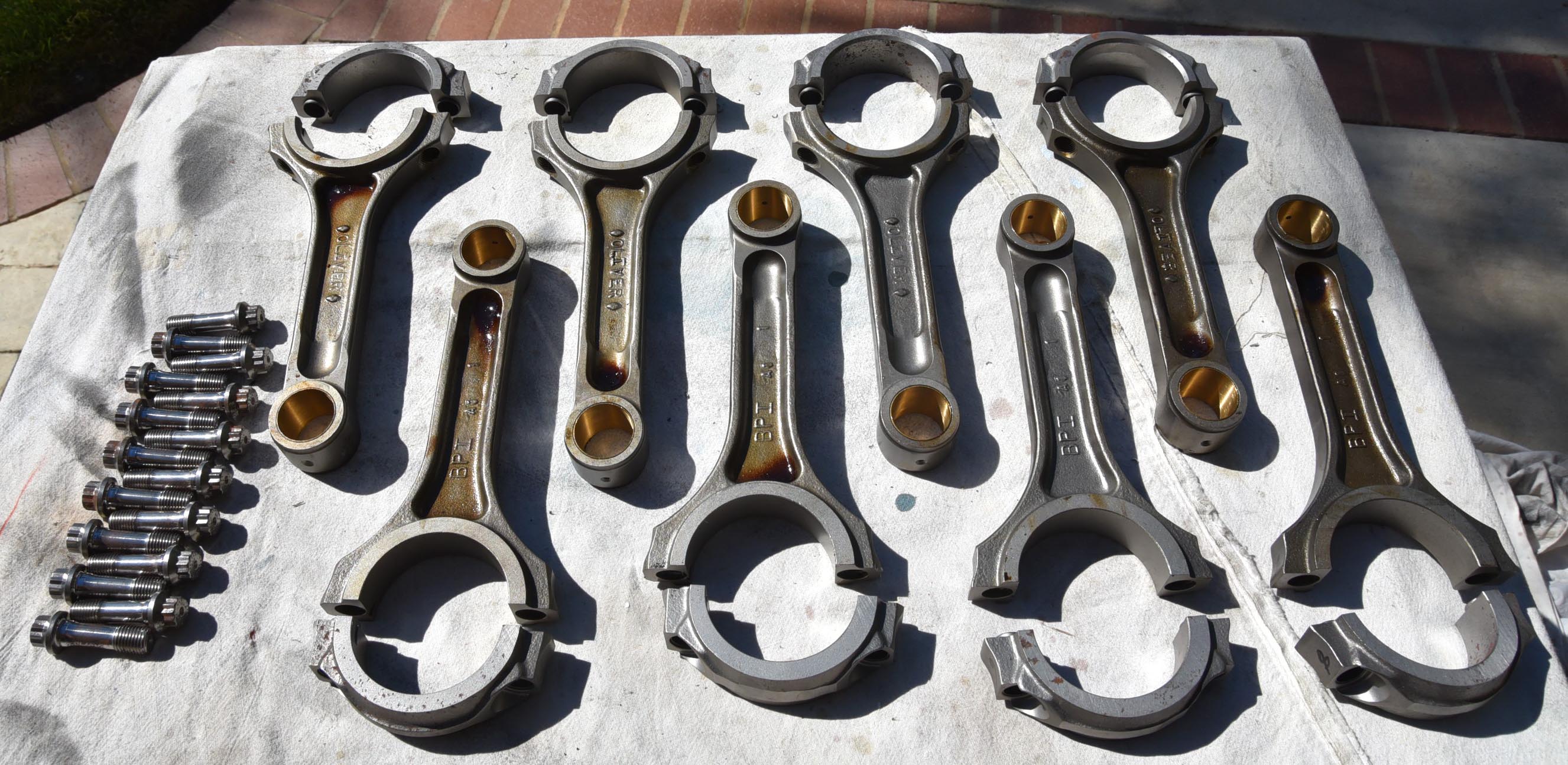

Oliver Racing Parts


New, Oliver Racing Parts, 6.800" length,
.980" pin, 2.325" Chev BB big end dia

BACK TO PONTIAC PARTS PAGE



























































CAMSHAFTS
click on pictures to enlarge

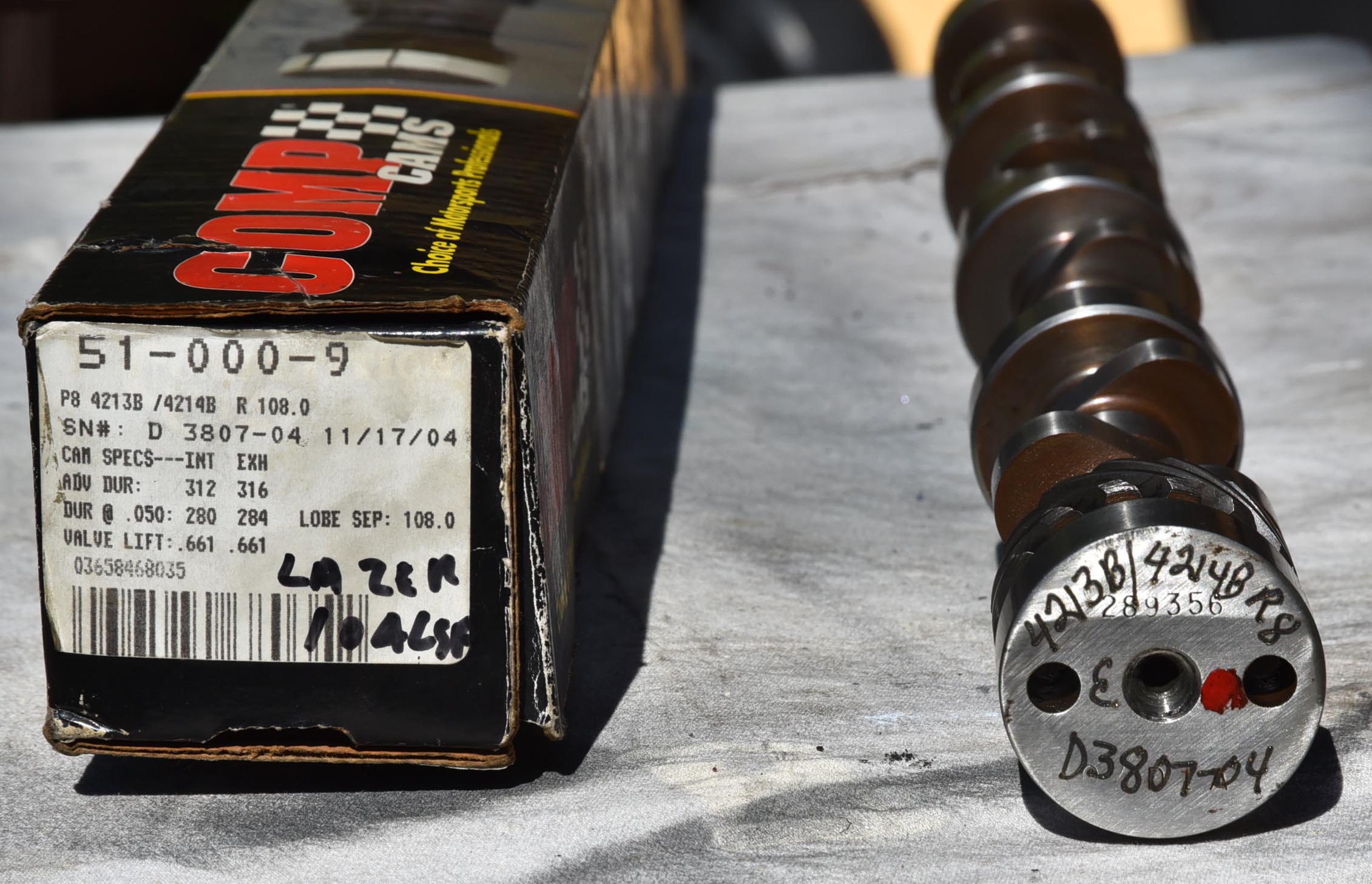

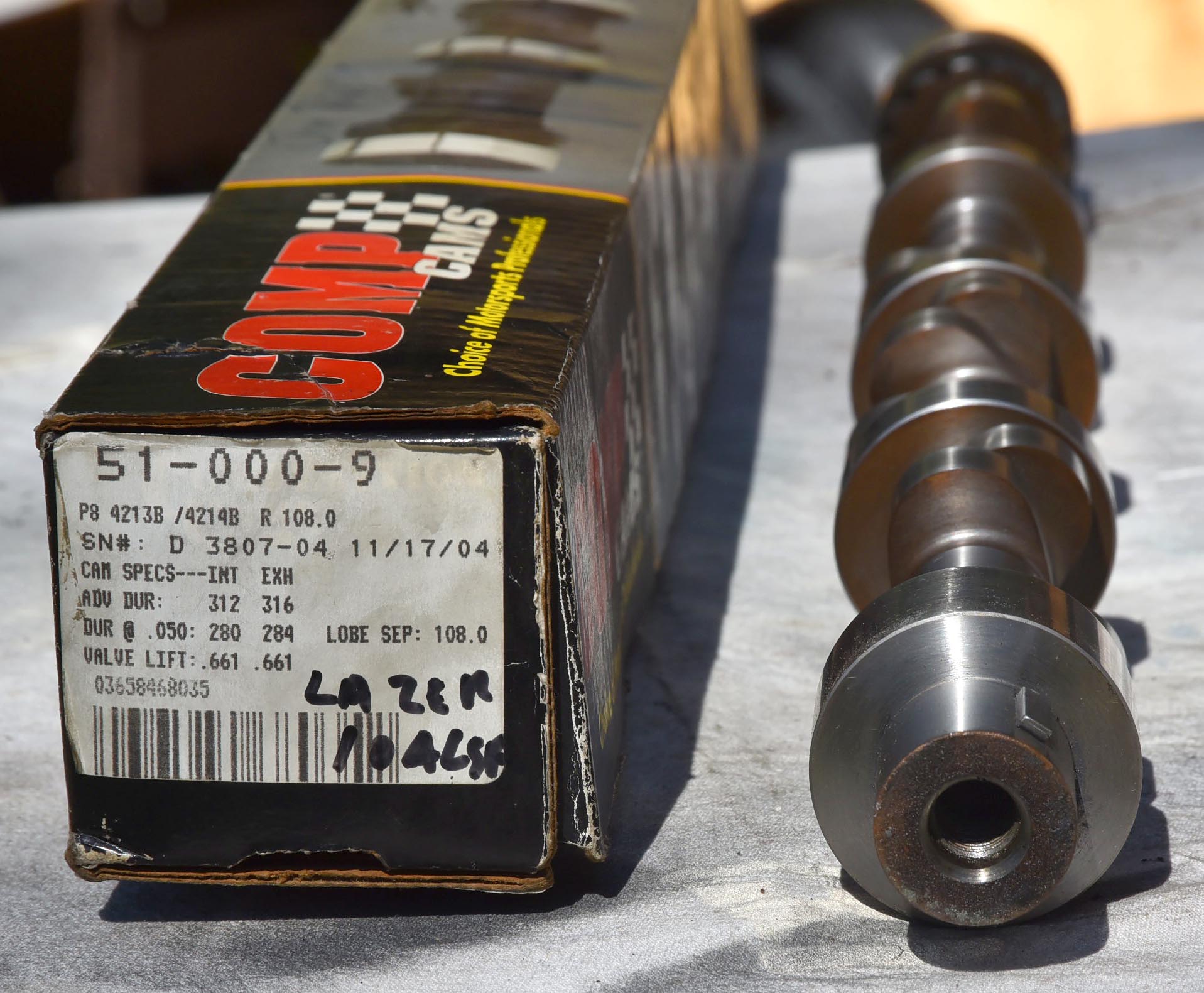

Comp Cams Solid Roller Camshaft


Custom grind
, .661"/.661", 312O/316O Adv,
280O/284O @ .050", 108.0O Lobe Spread

BACK TO PONTIAC PARTS PAGE



























































INTAKE MANIFOLDS
click on pictures to enlarge

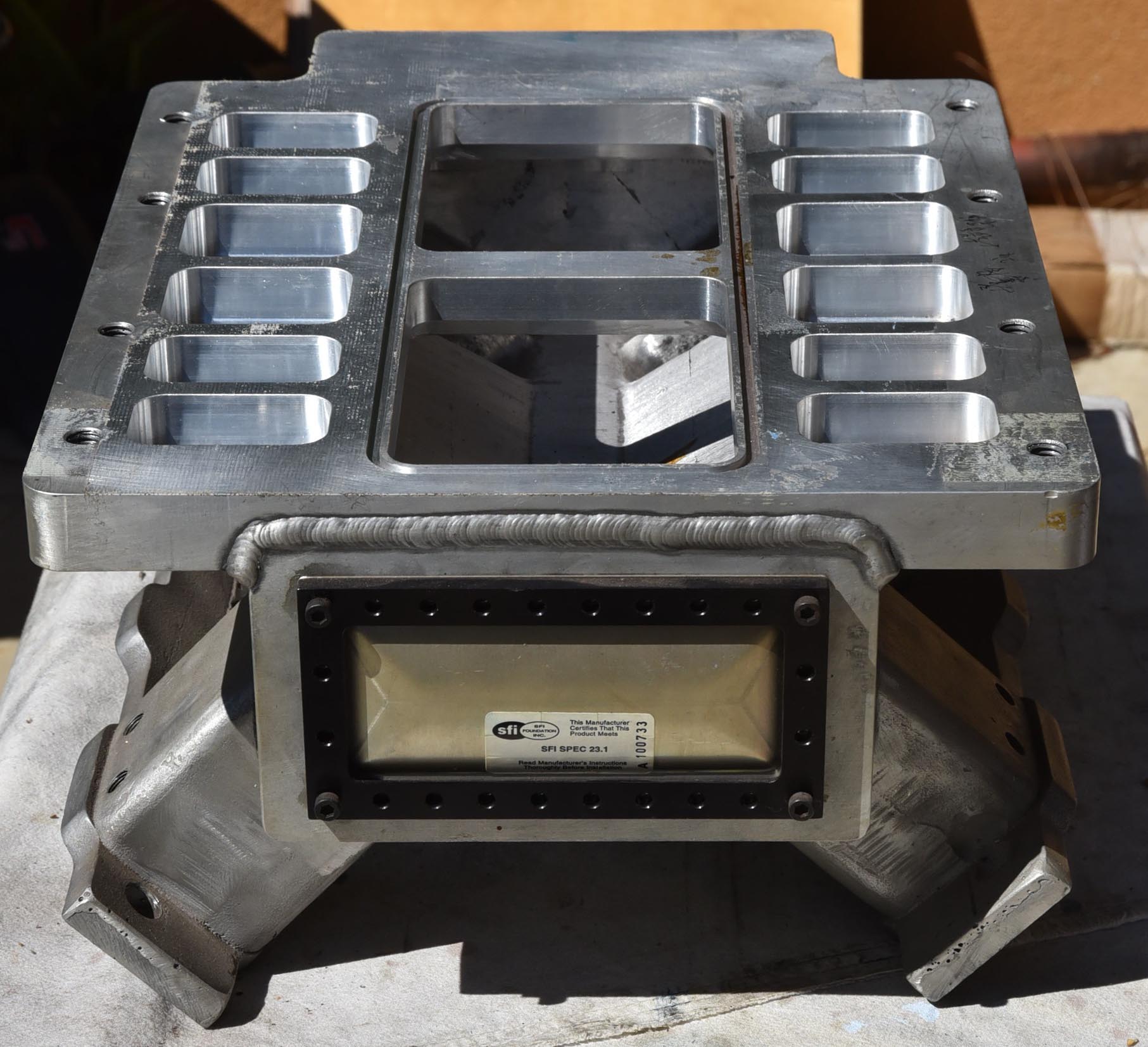

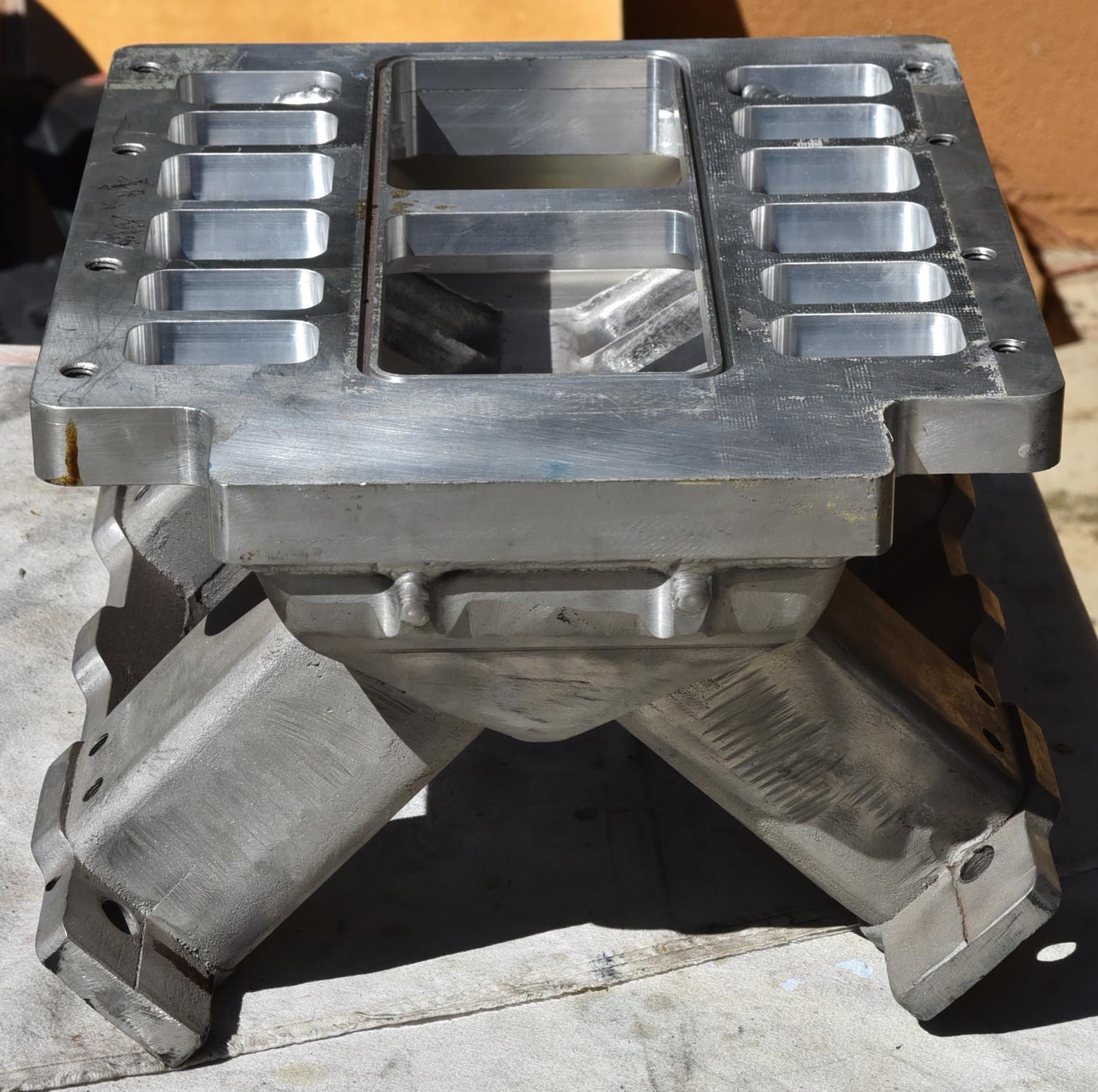

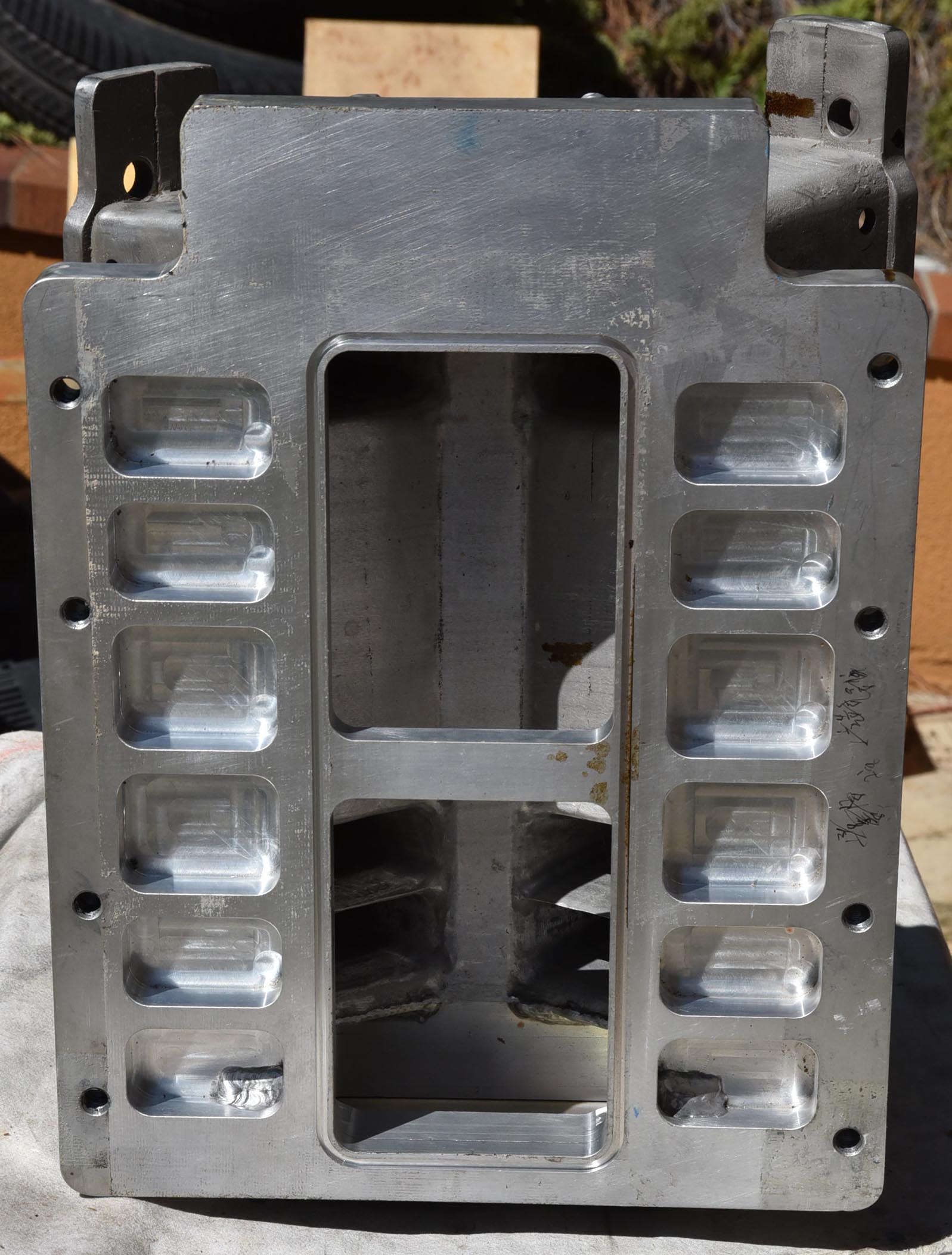

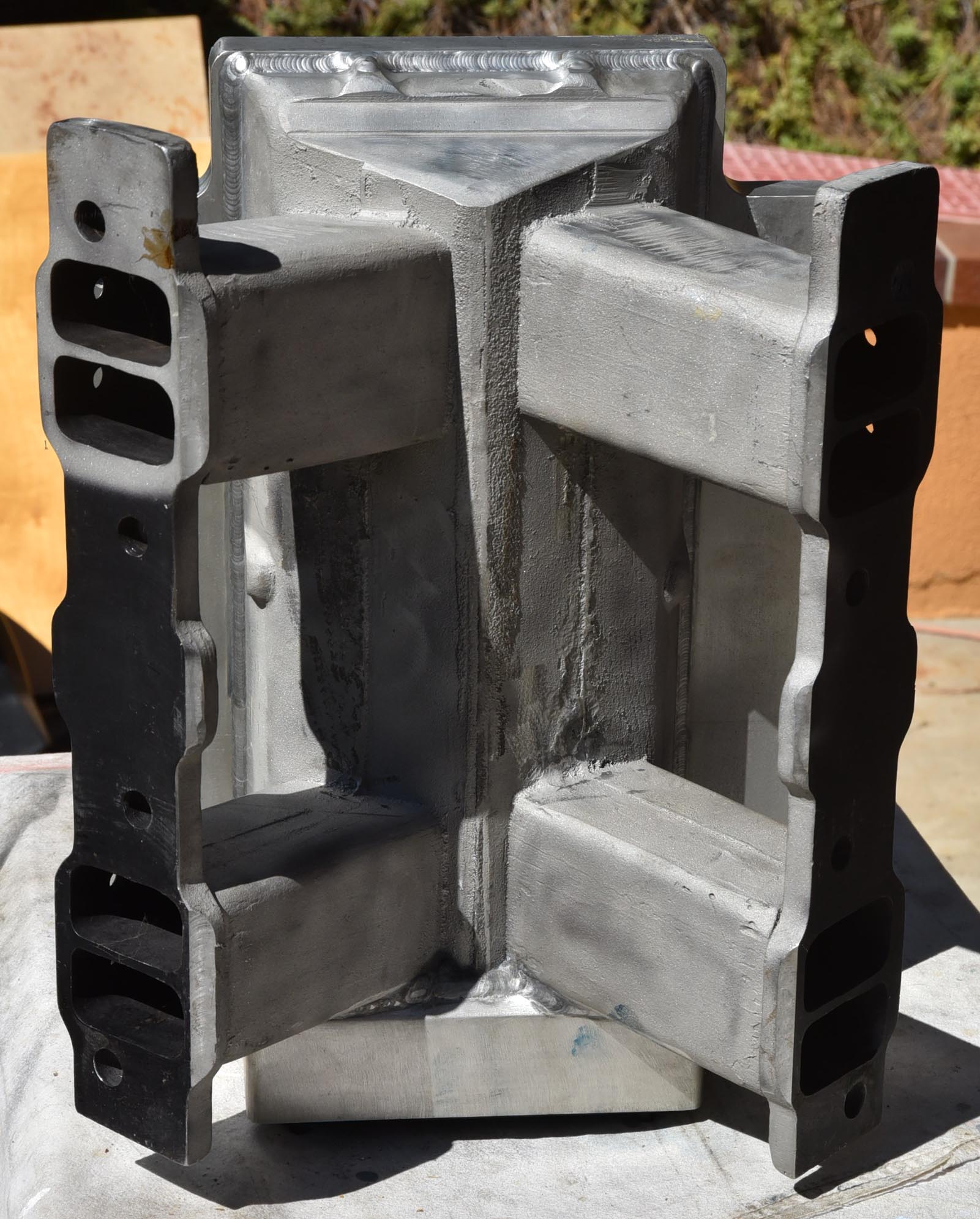

Fabricated Cast Blower Manifold

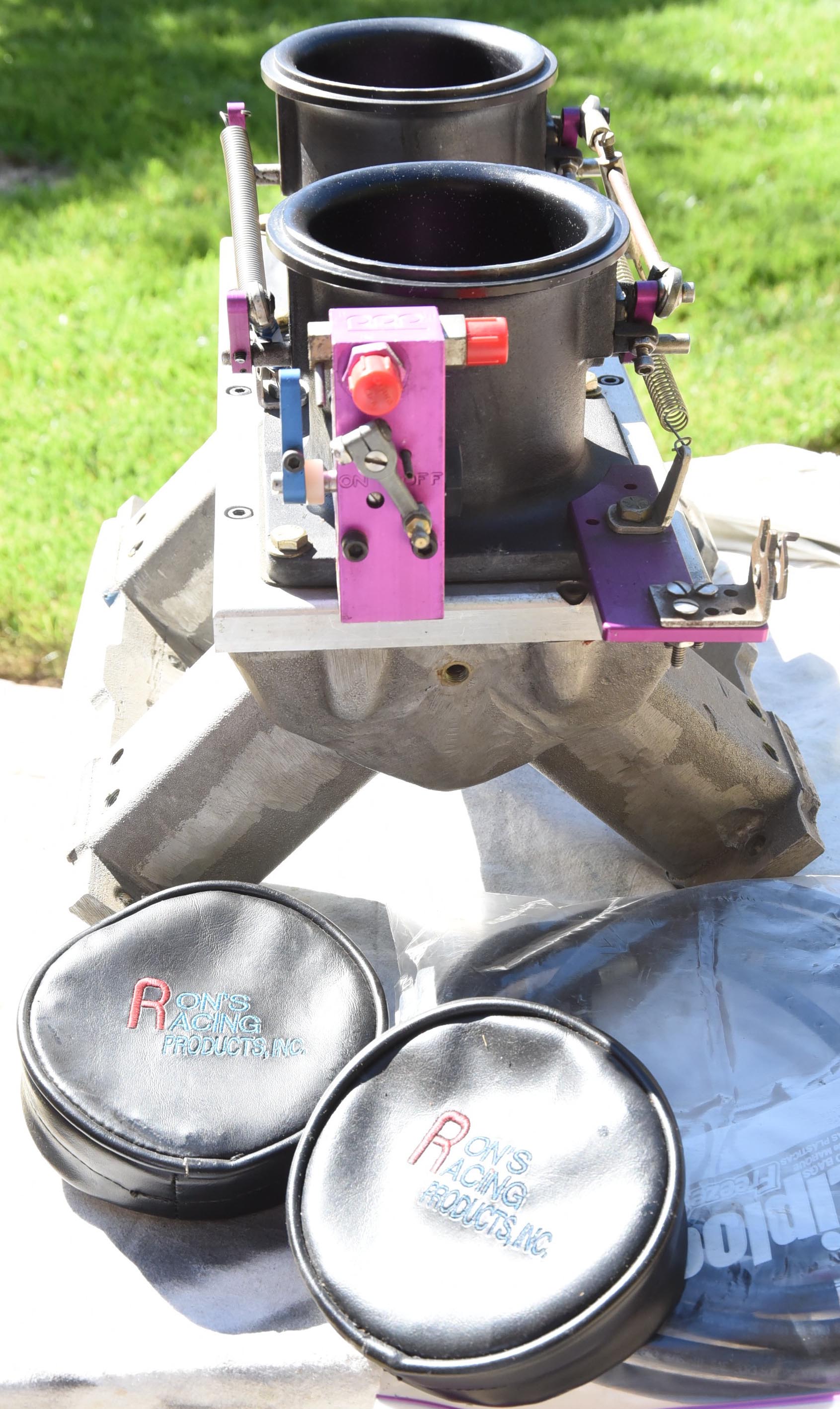

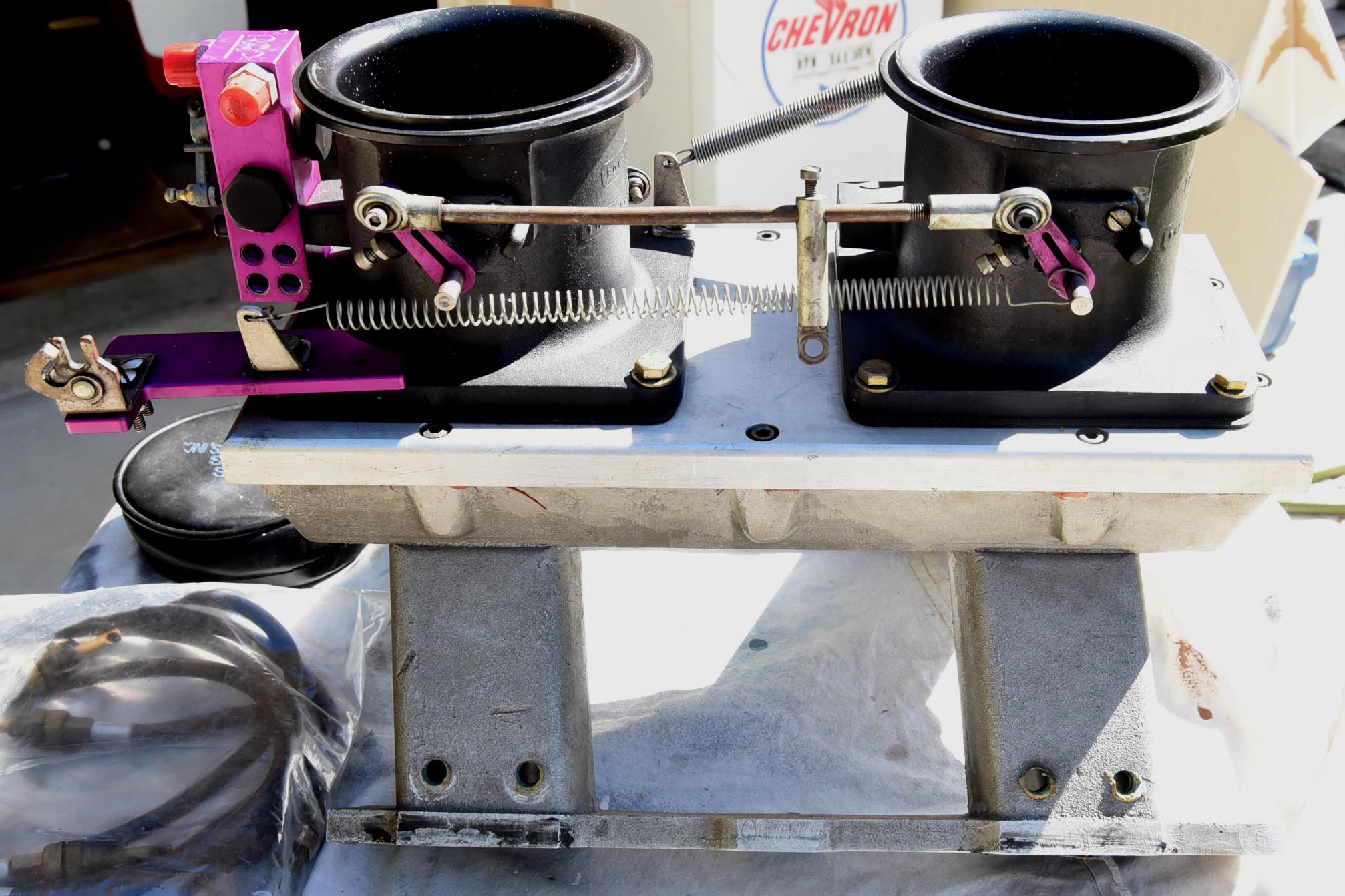

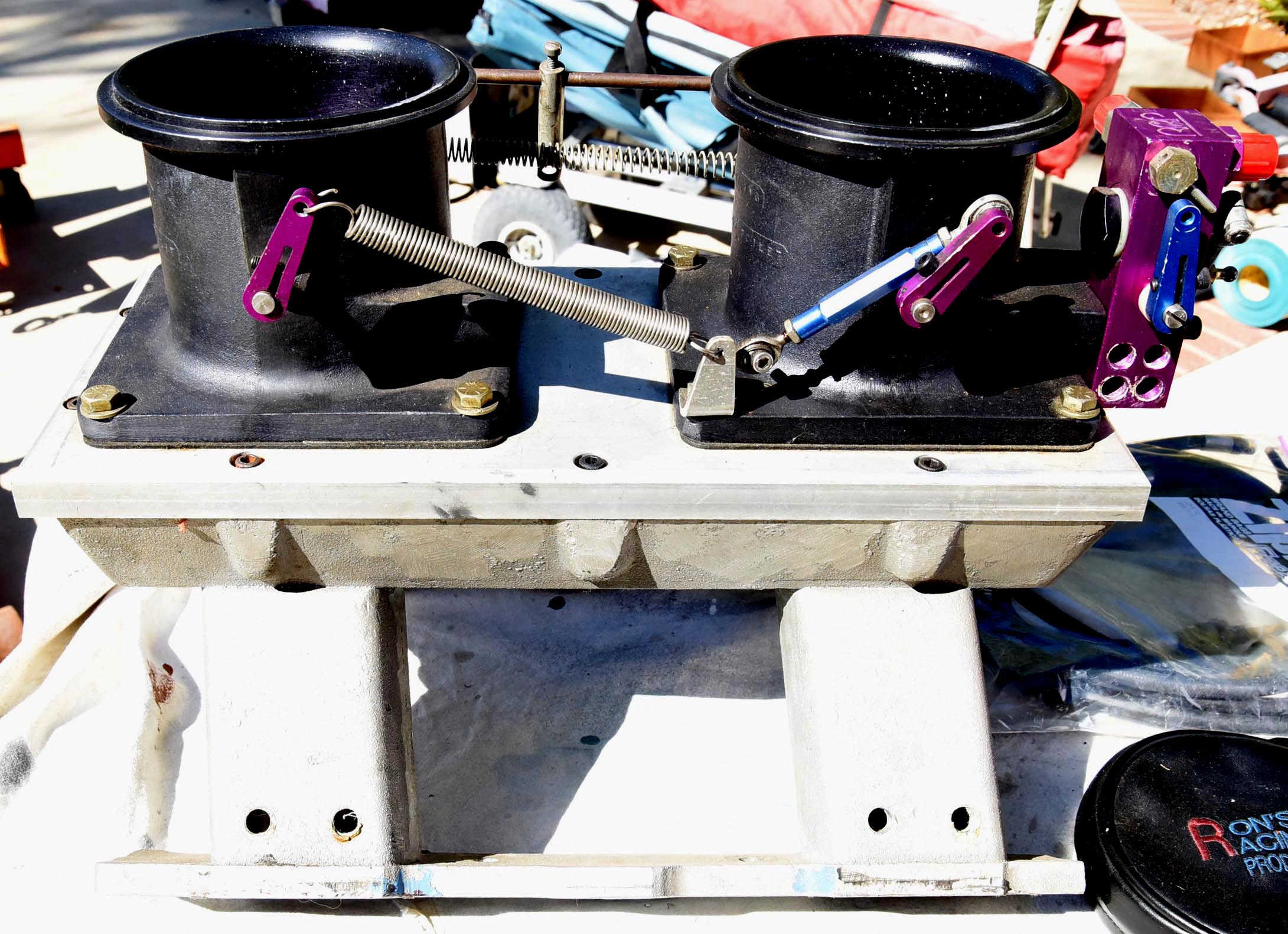

Fabricated Cast Injector Manifold



Comes with Ron's Racing Fuel Injectors & Fuel Pump

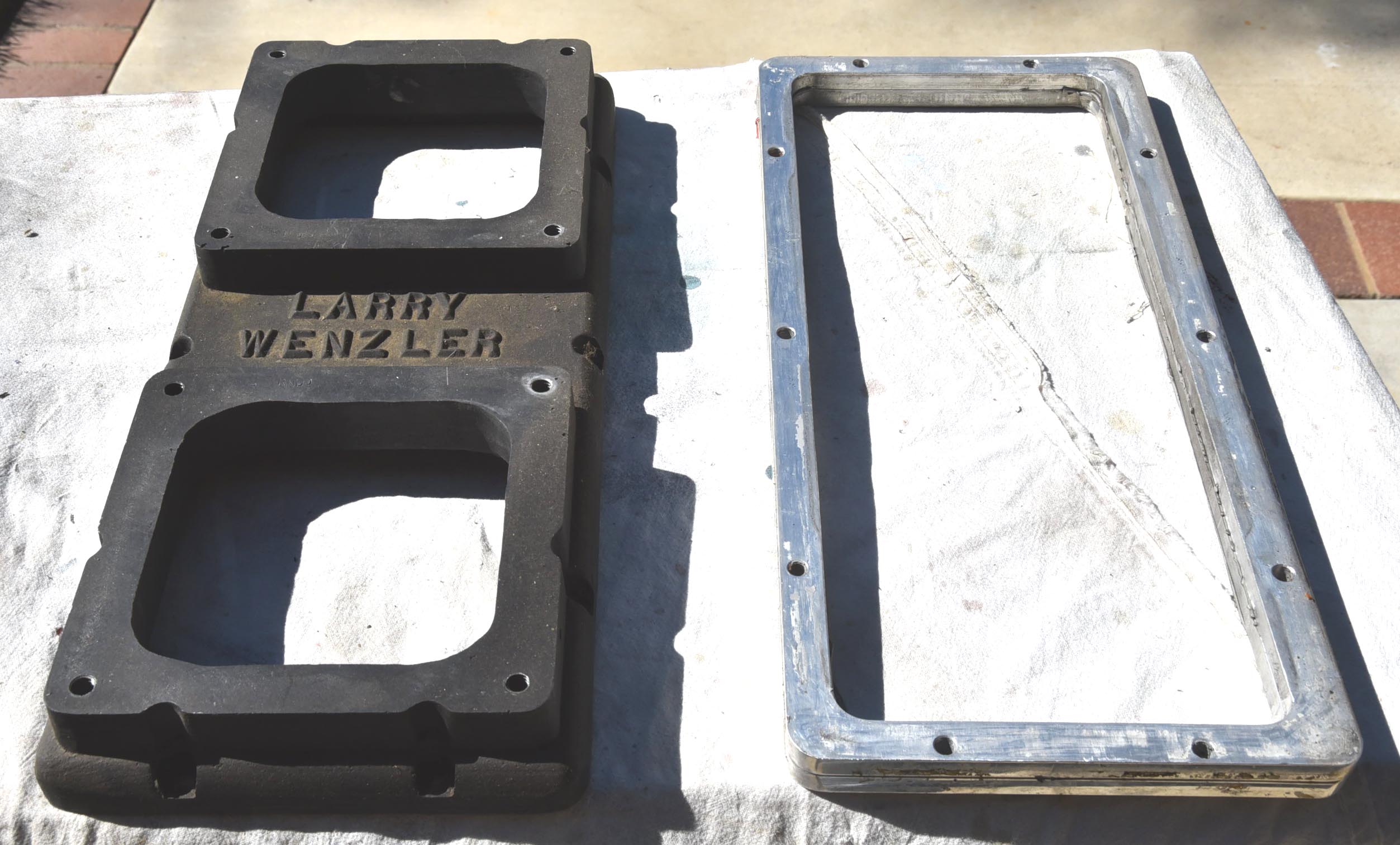

Manifold Carburetor Adaptor & Spacer

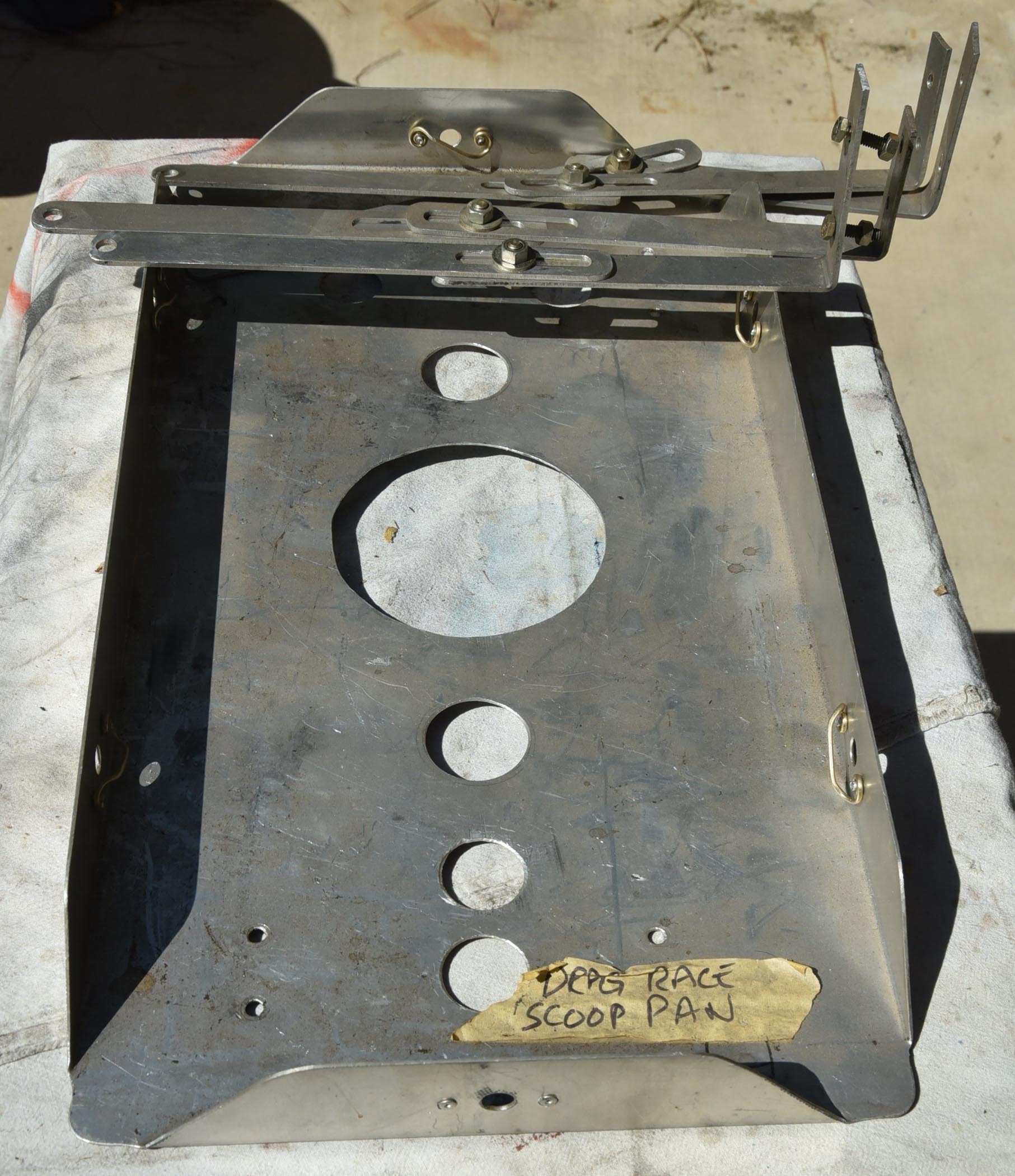

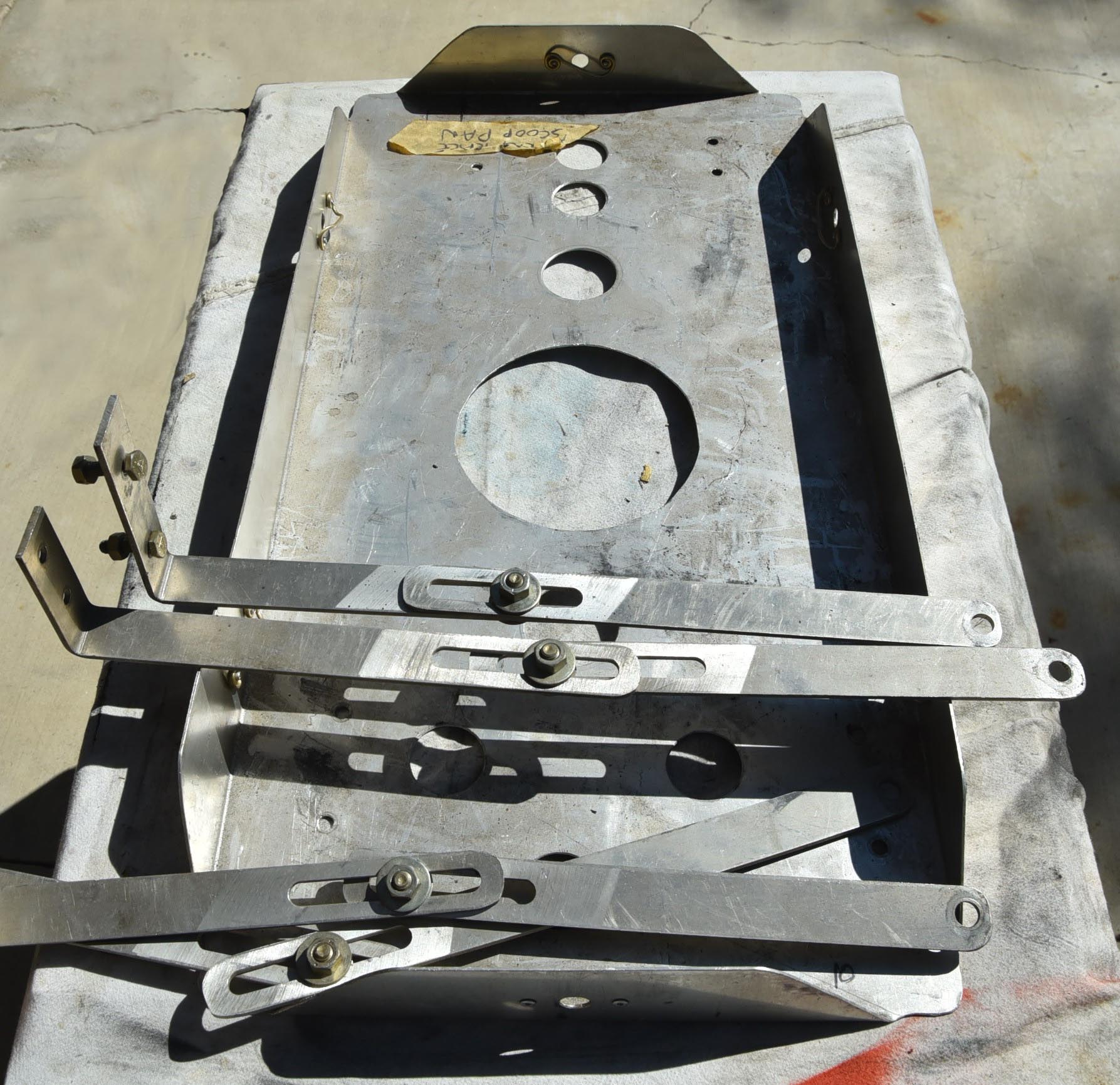

Scoop Pan

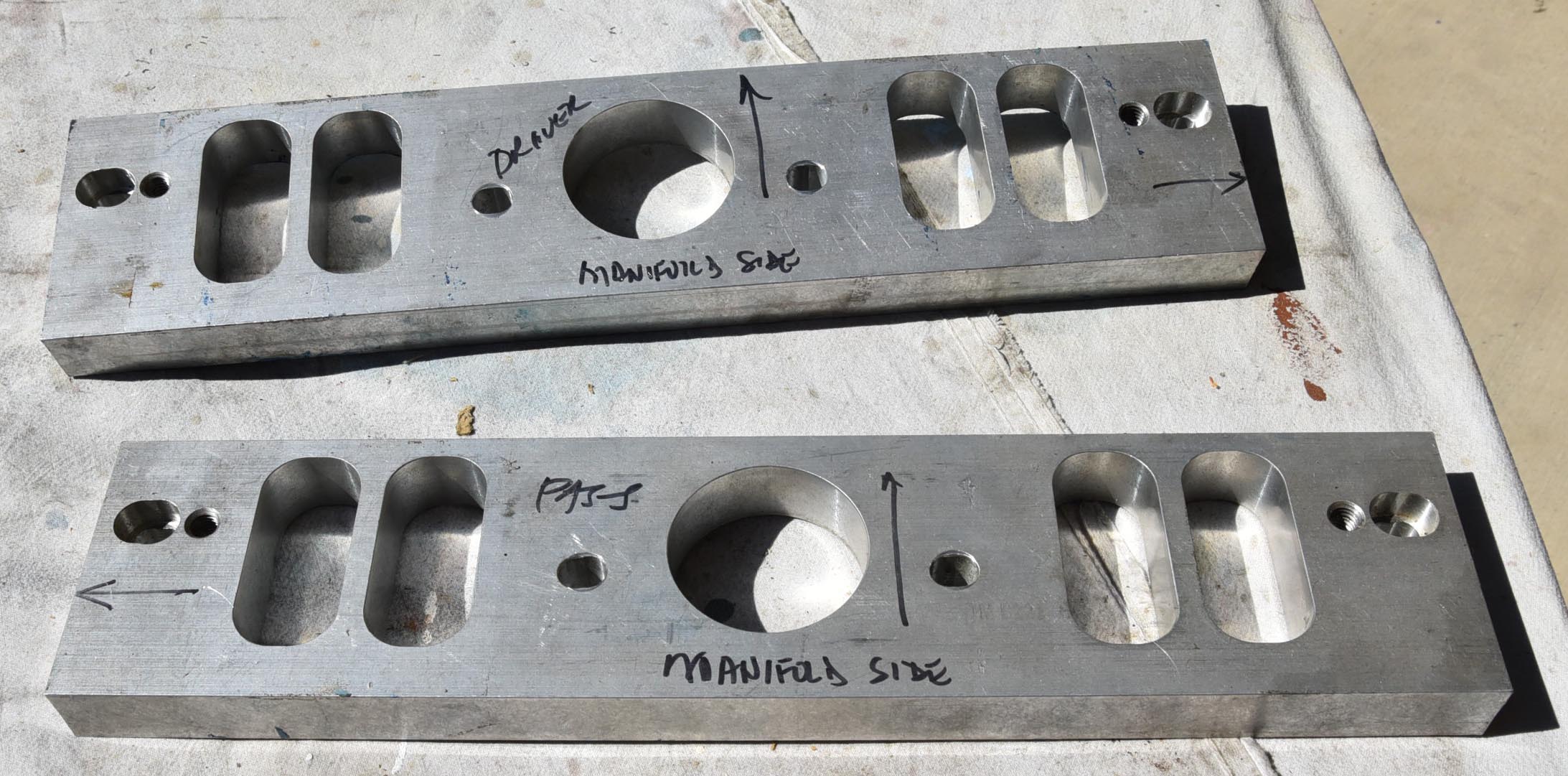

Machined Intake Manifold Plates

BACK TO PONTIAC PARTS PAGE



























































OIL PUMP
click on pictures to enlarge

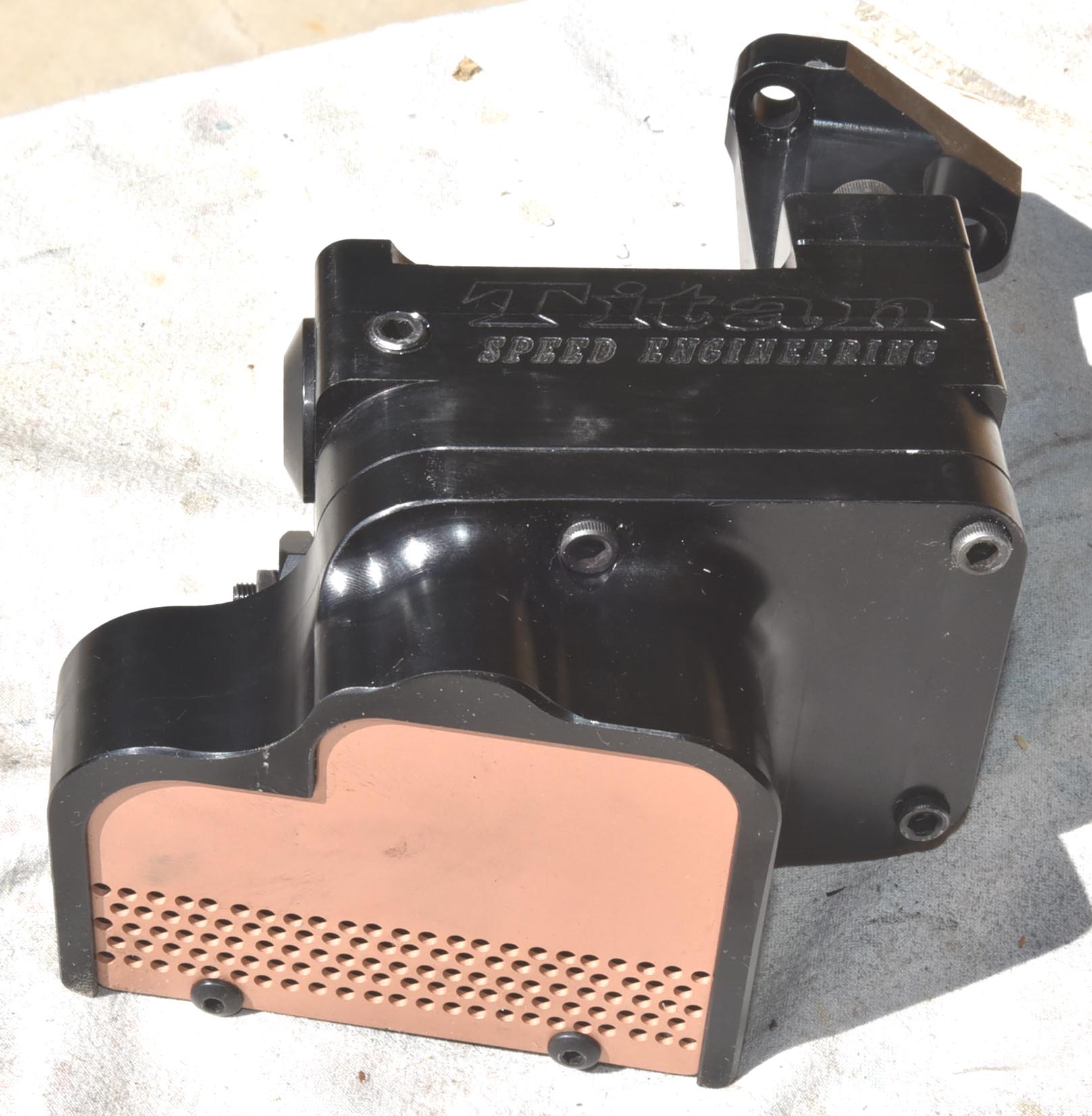

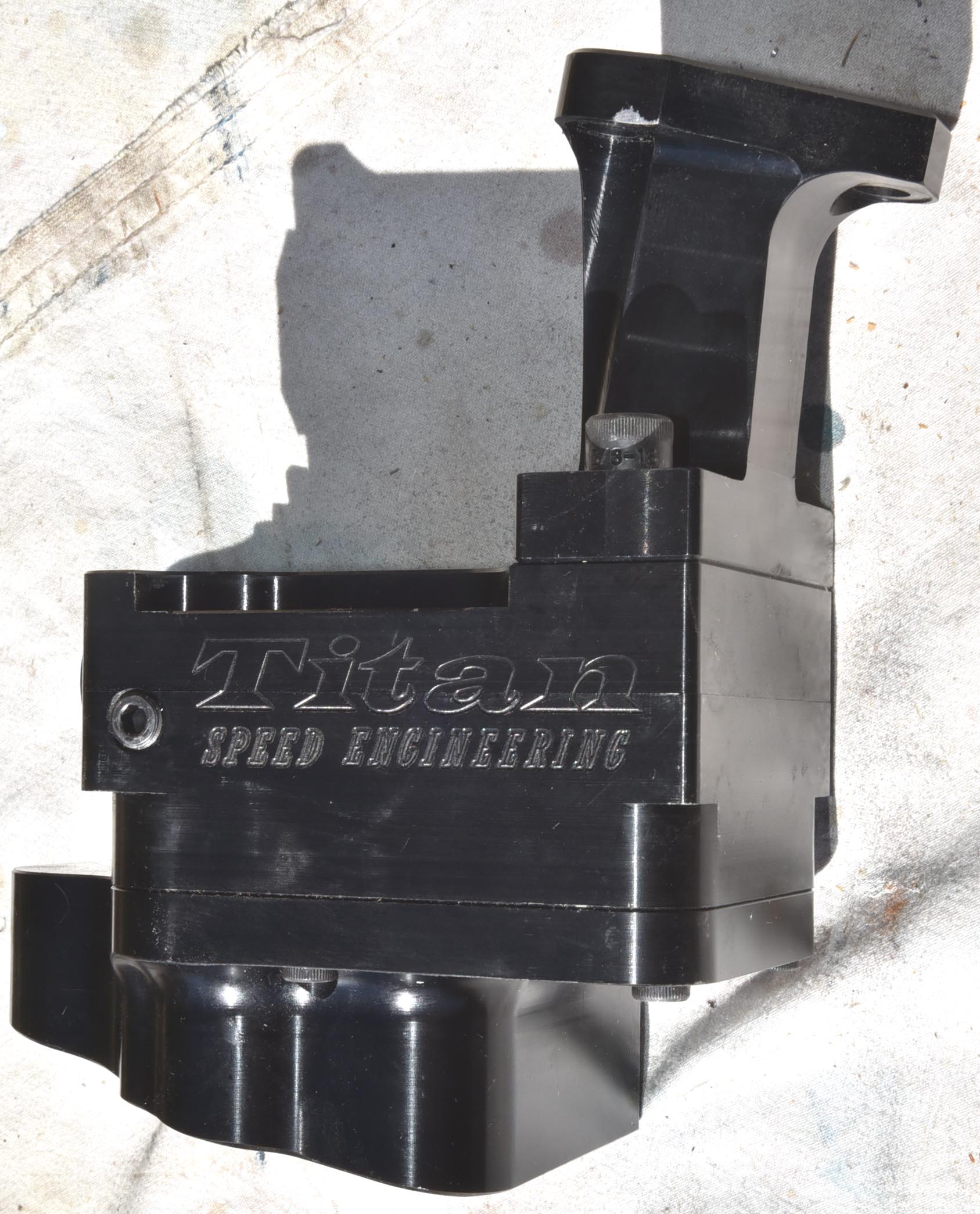

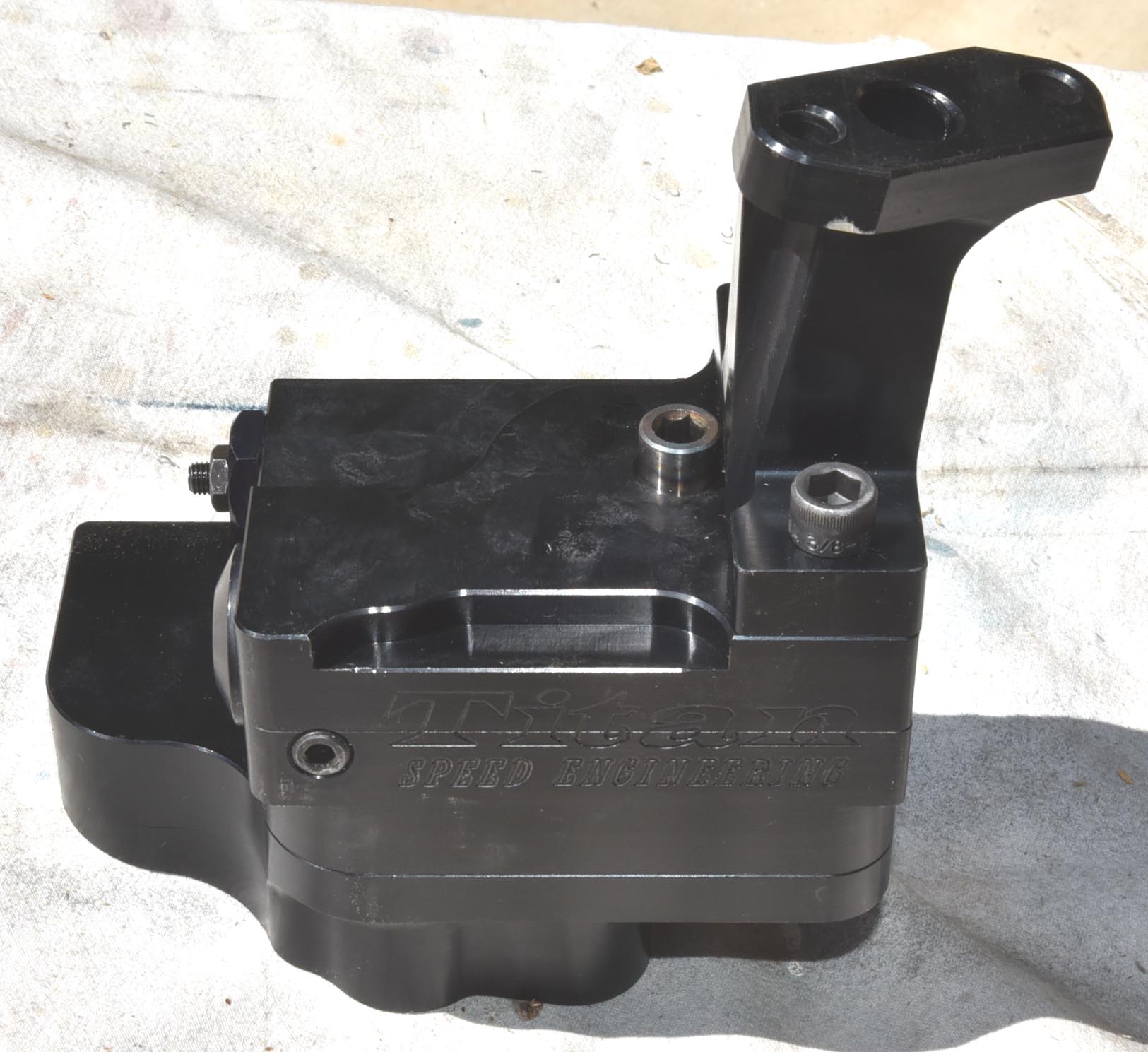

Titan Oil Pump

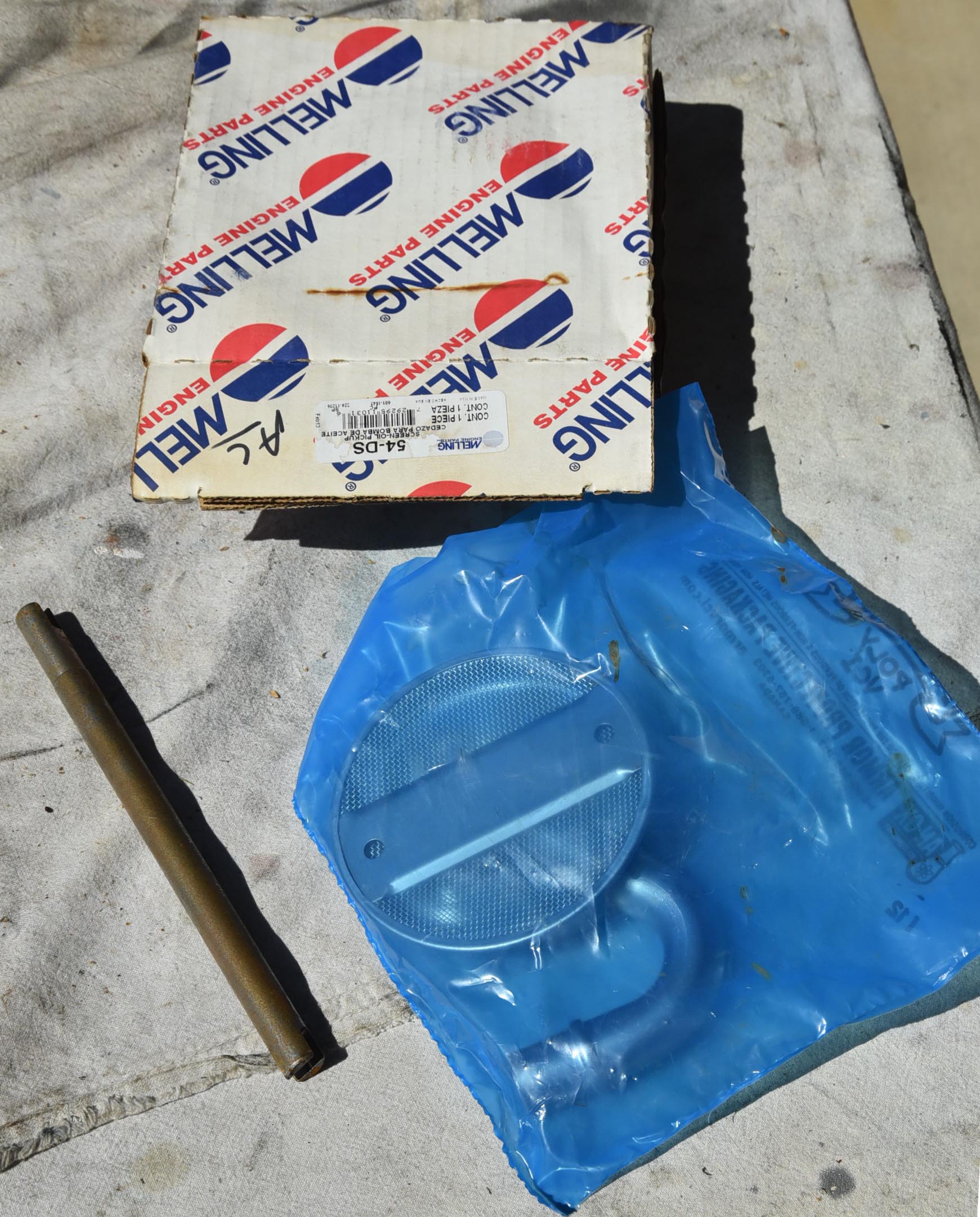

Melling Stock Oil Screen & Shaft

BACK TO PONTIAC PARTS PAGE





























































OIL PAN
click on pictures to enlarge

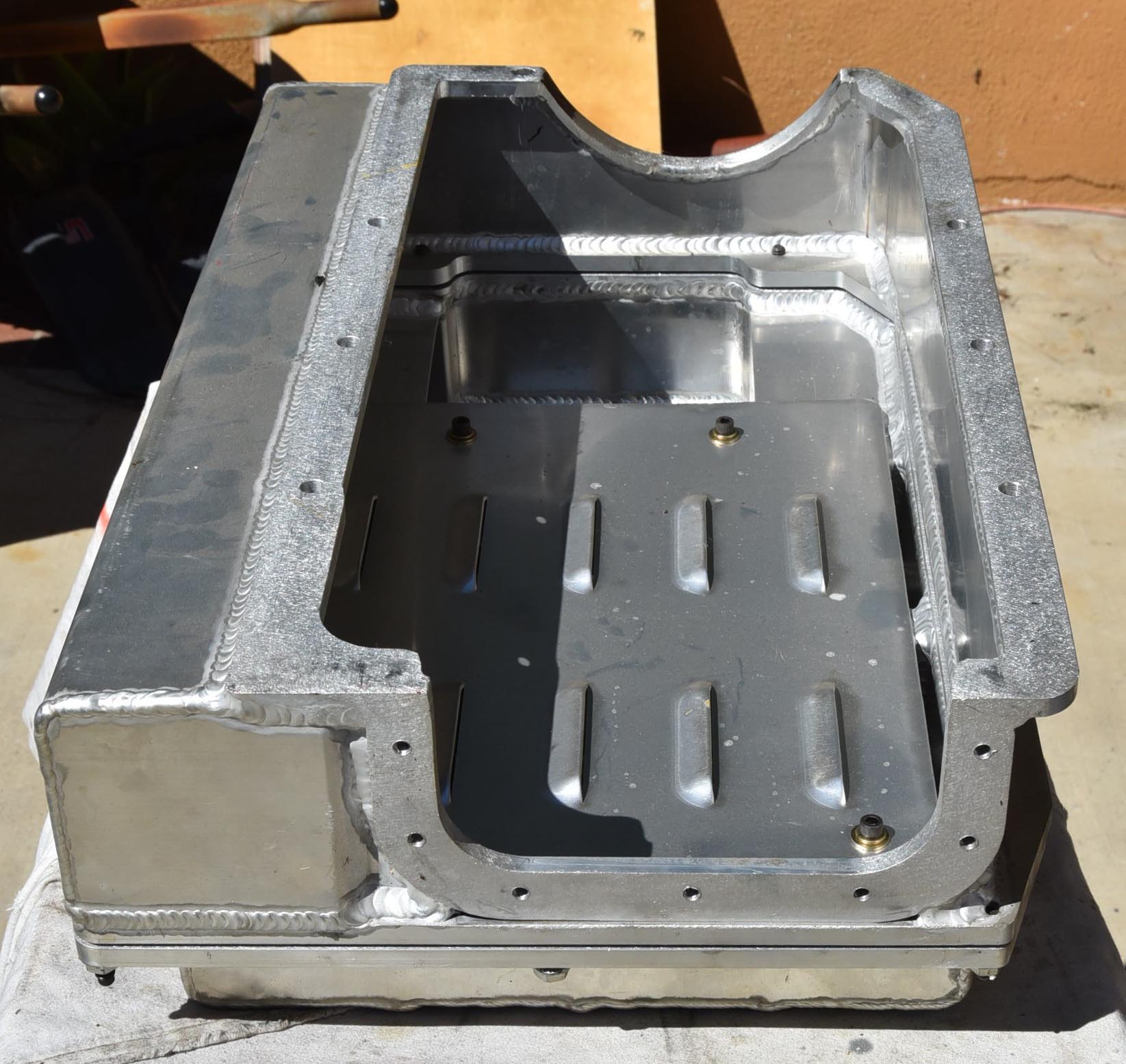

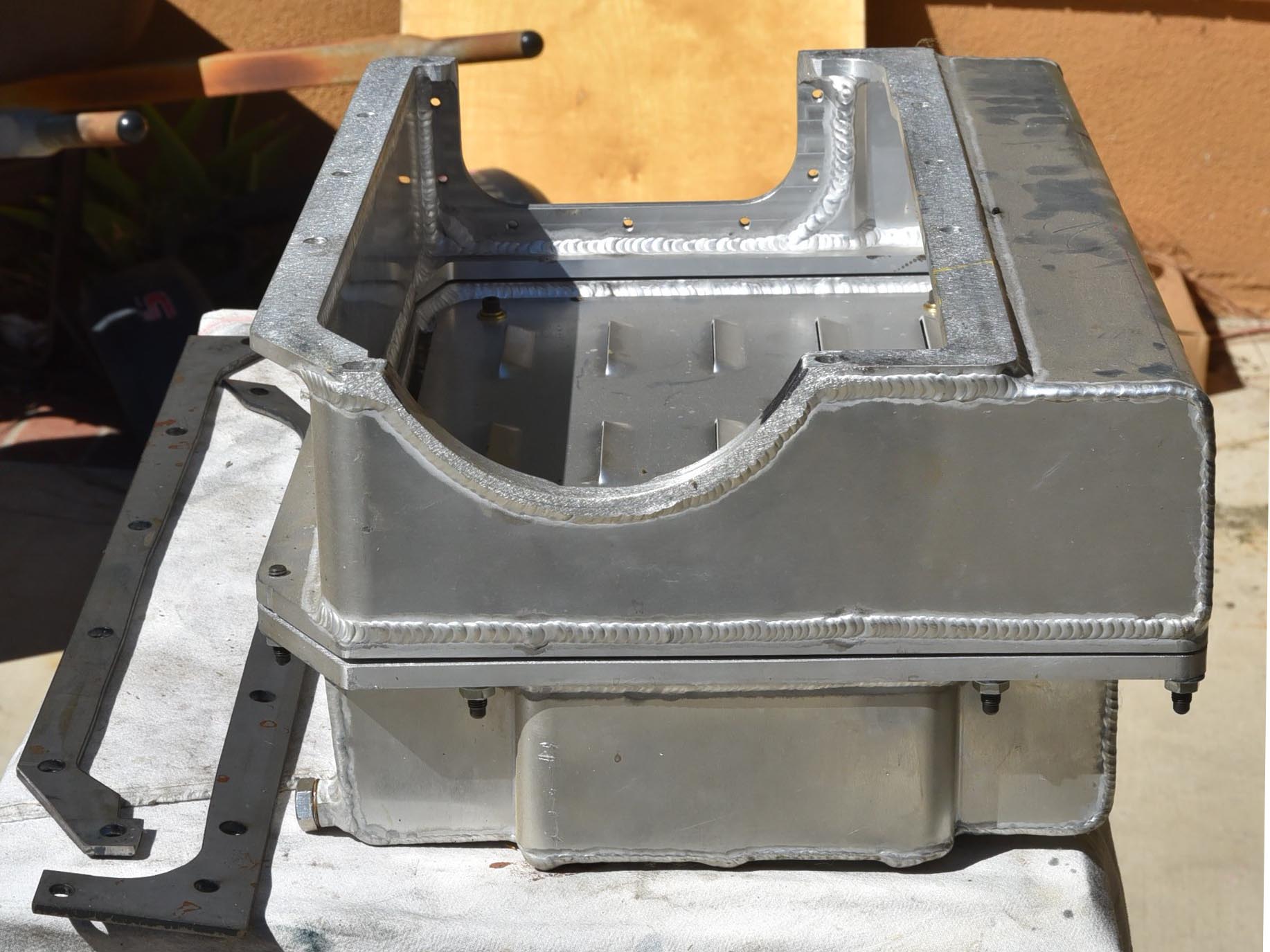

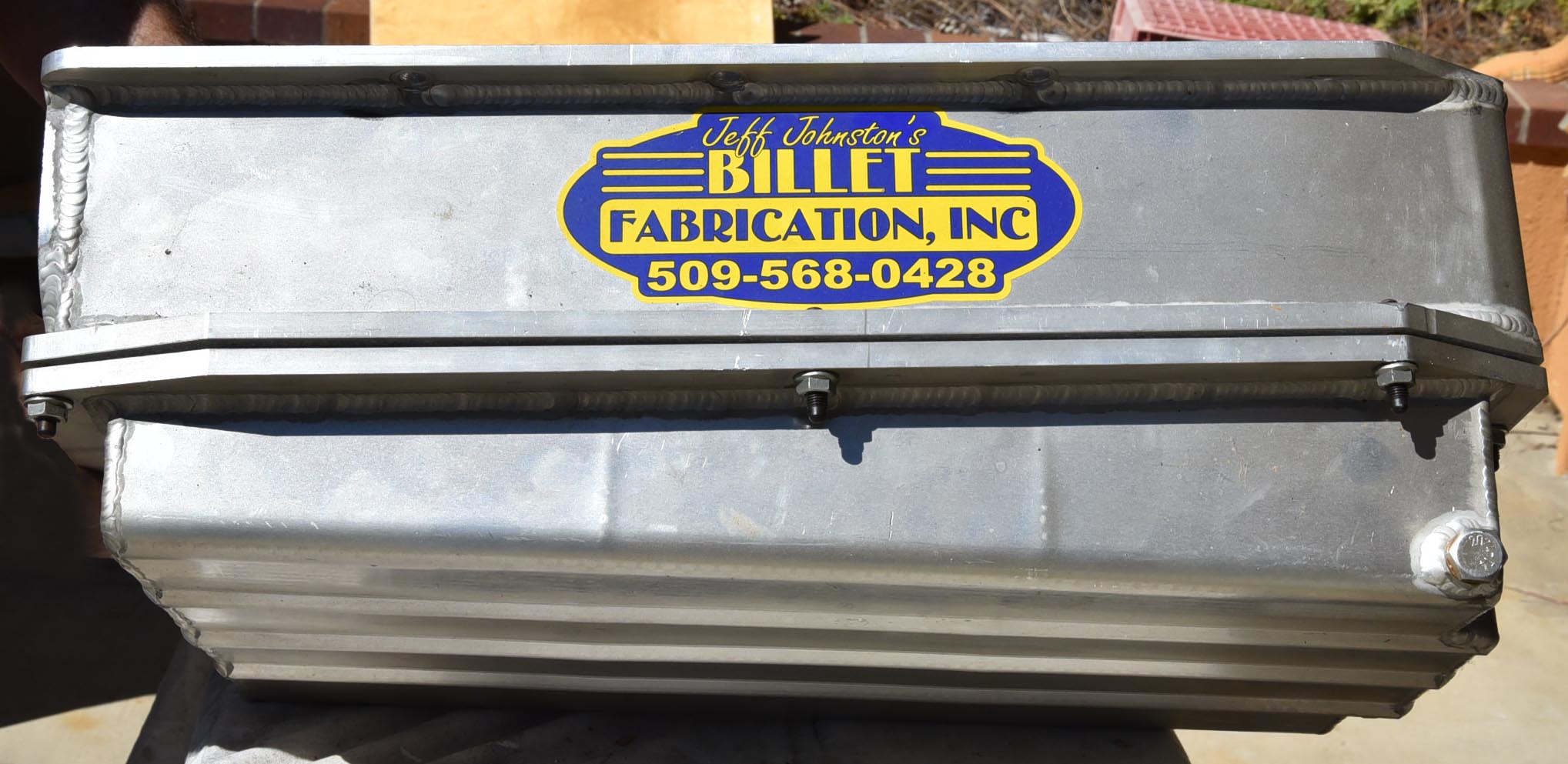

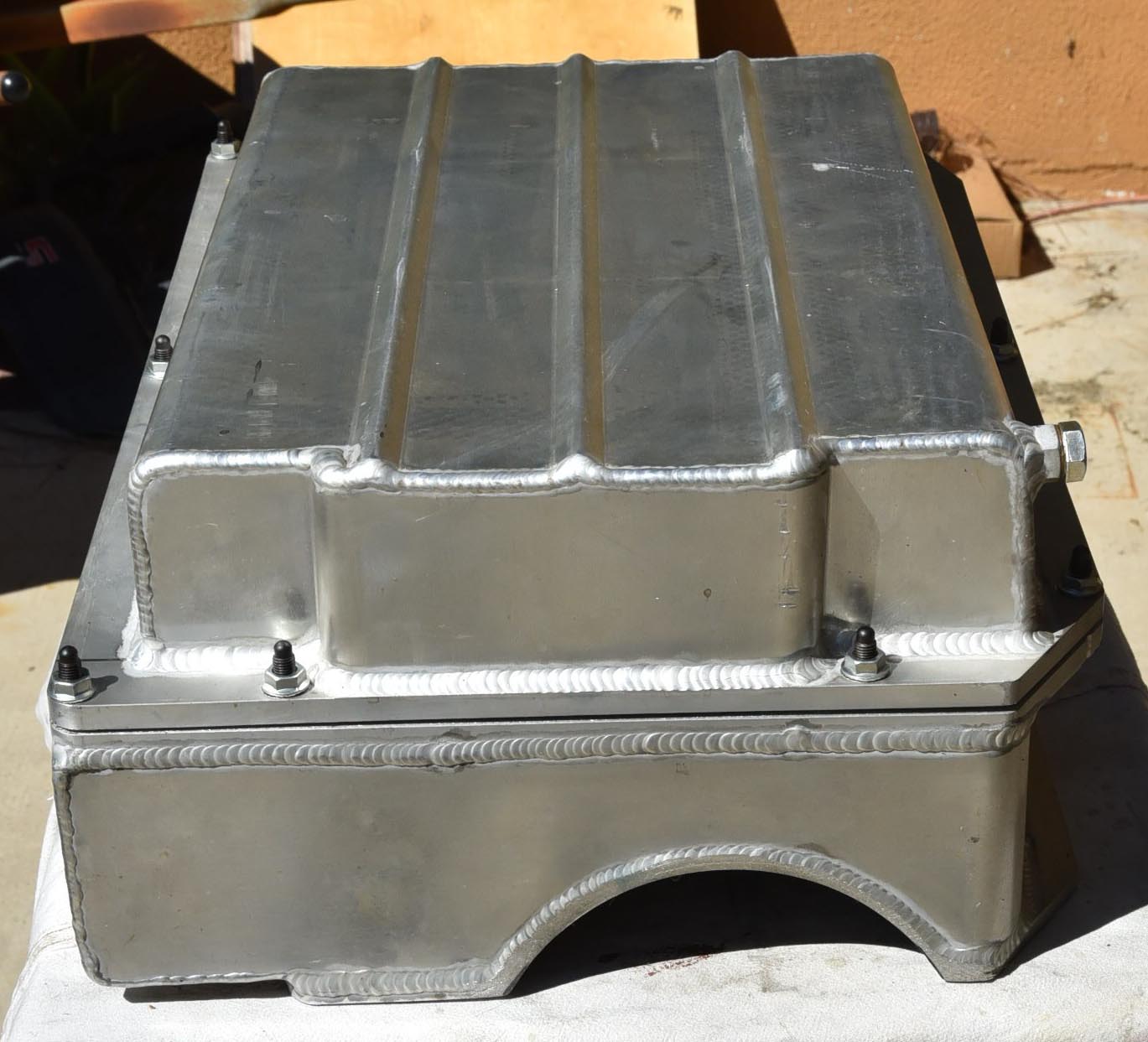

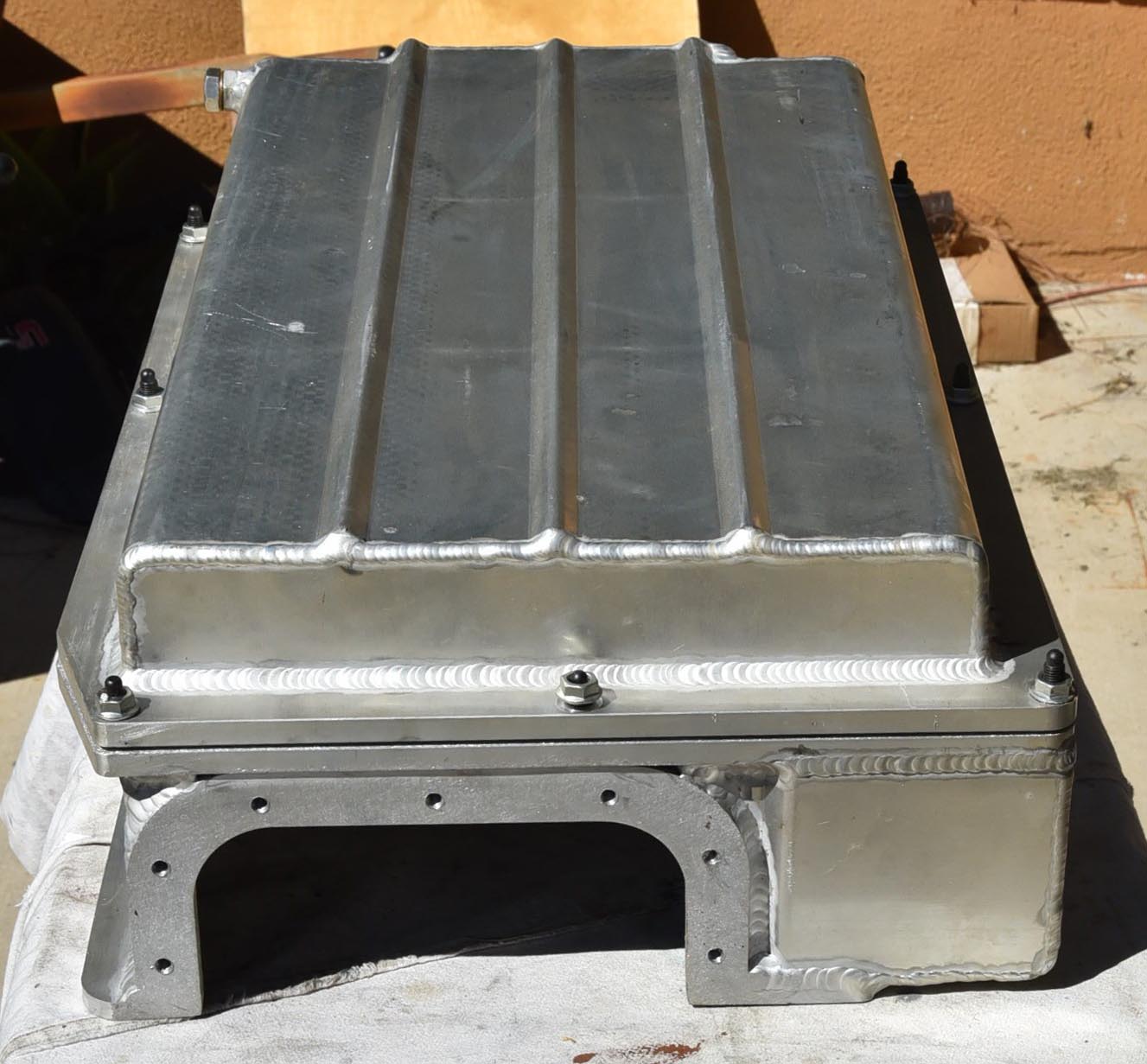

Billet Fabrication Inc Oil Pan




New, never installed, wet sump, 2 piece

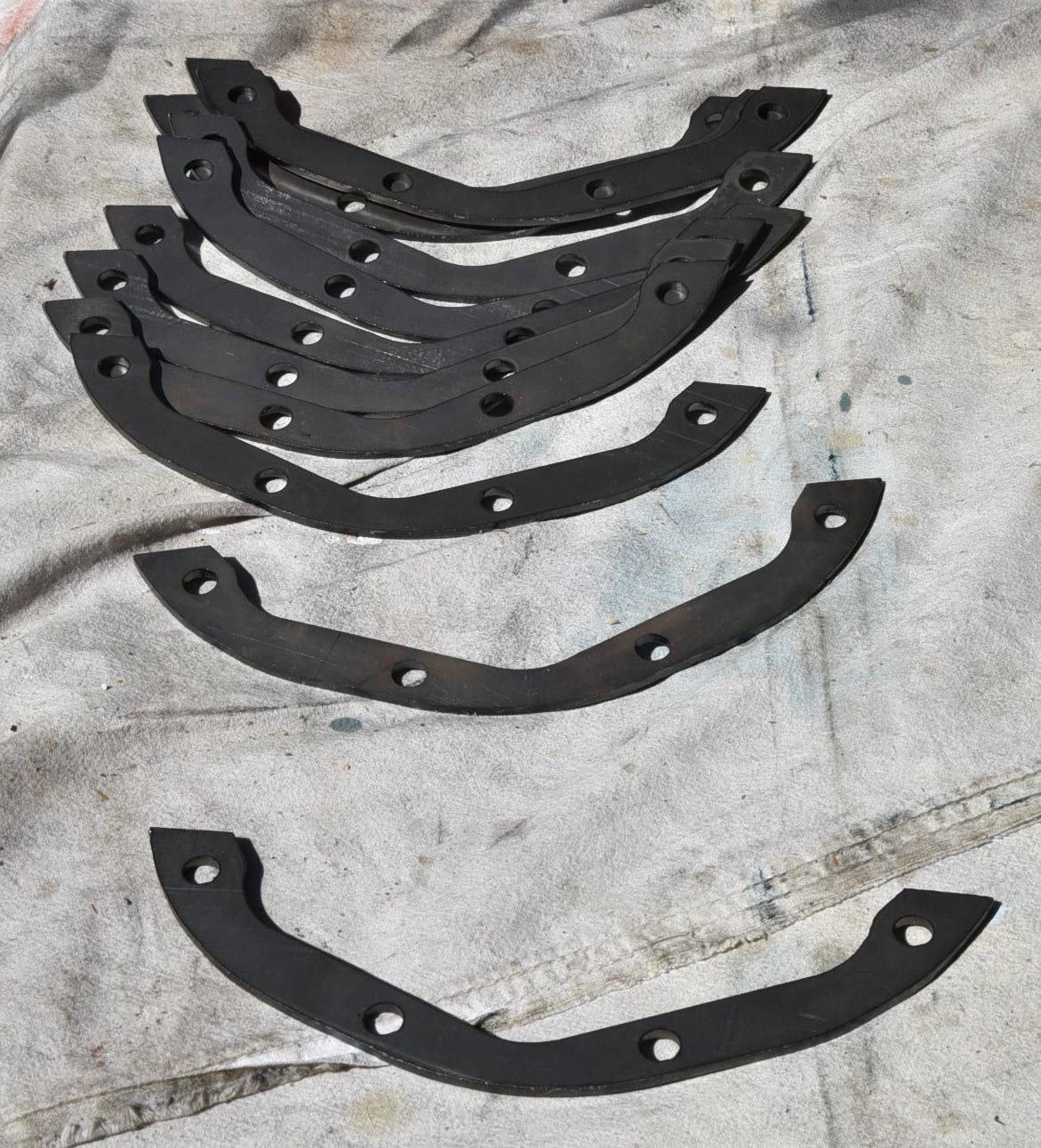

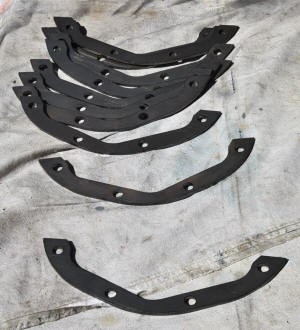

11 Oil Pan Spacers

BACK TO PONTIAC PARTS PAGE

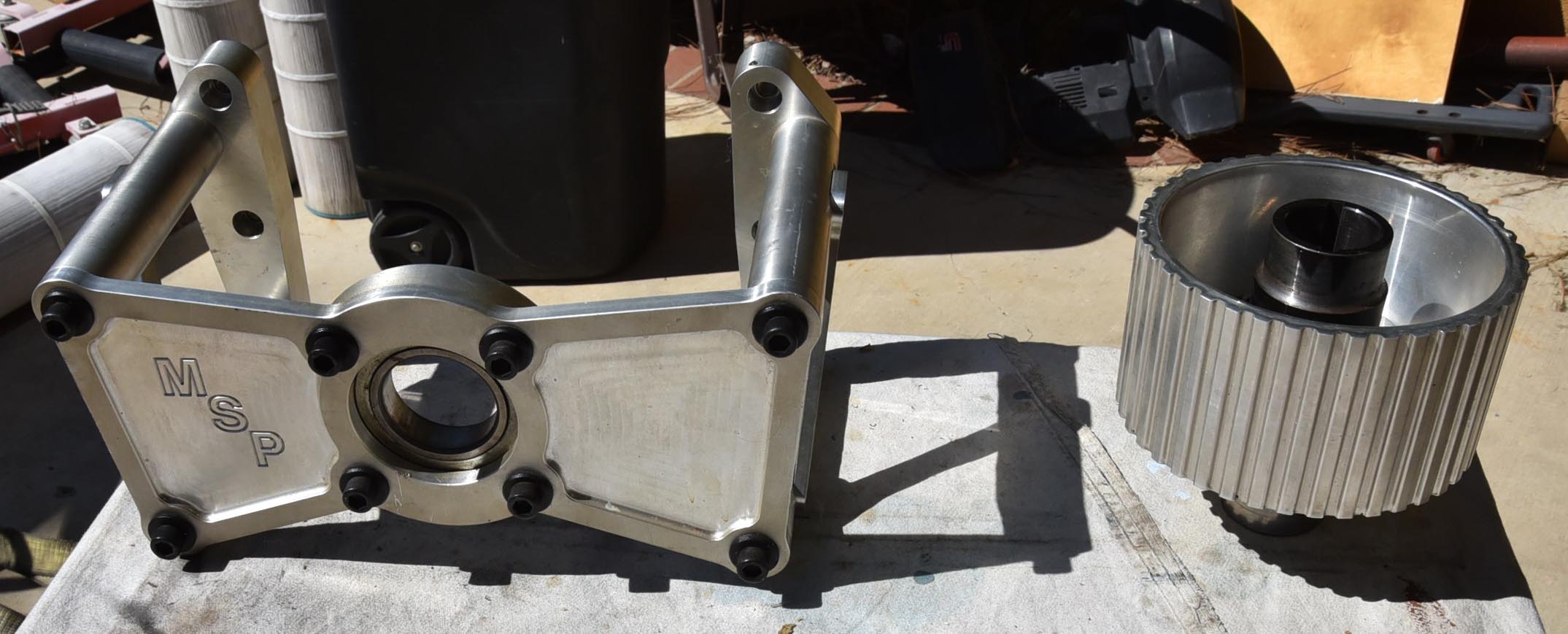

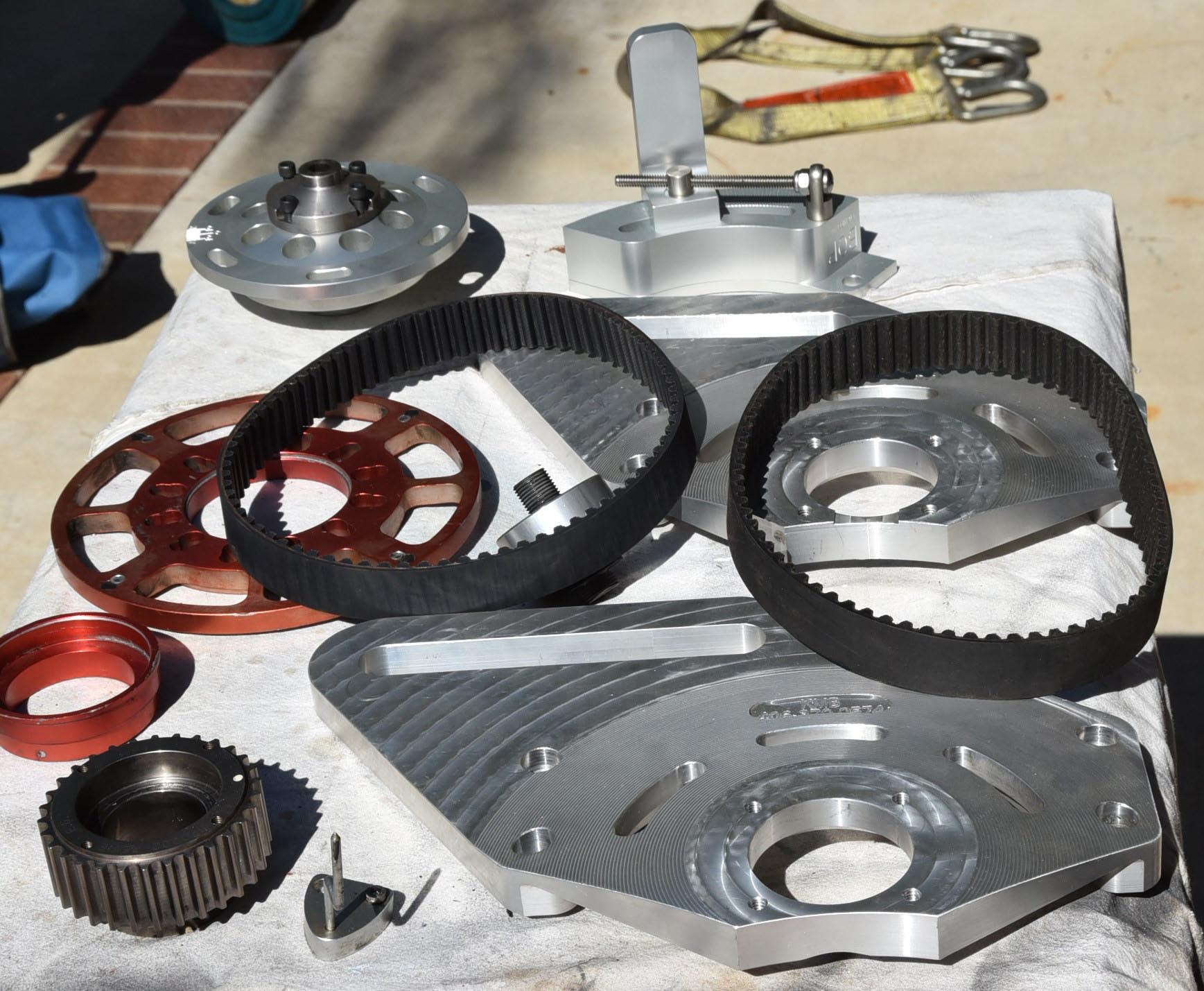

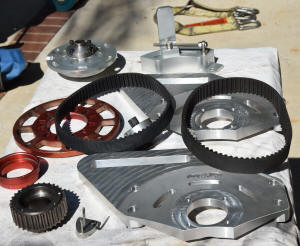

BLOWER FRONT DRIVE
click on pictures to enlarge





BACK TO PONTIAC PARTS PAGE

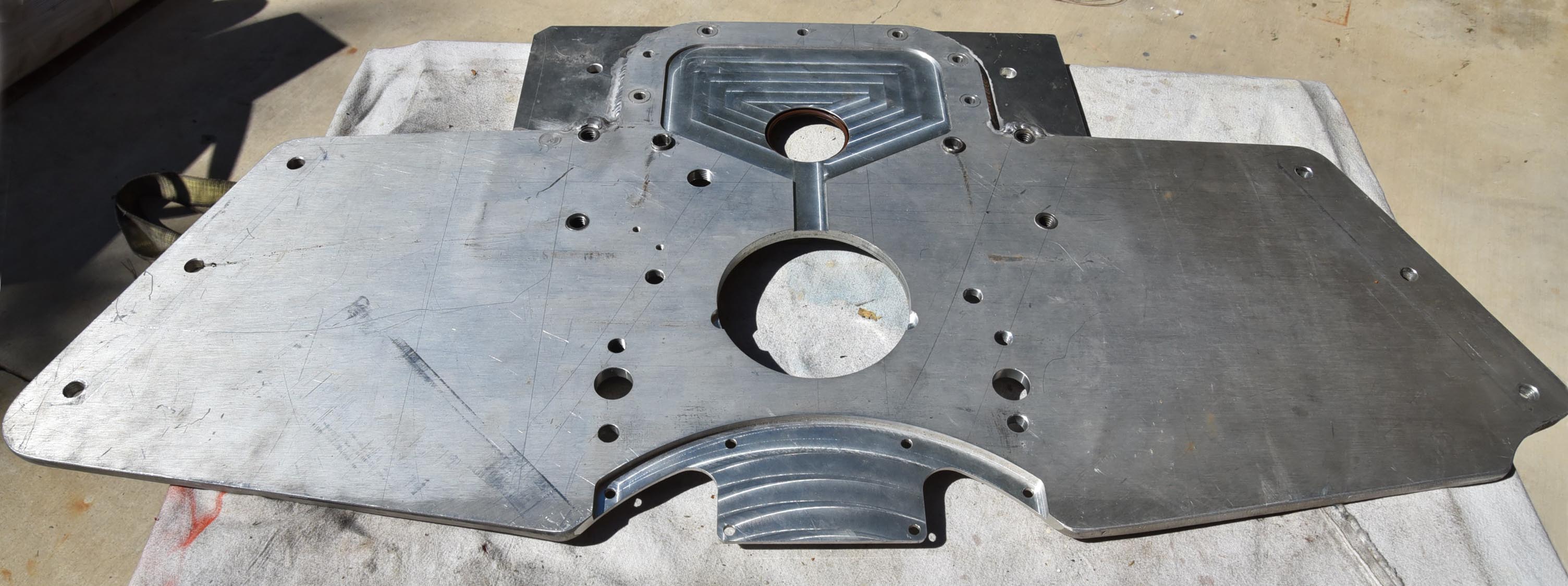

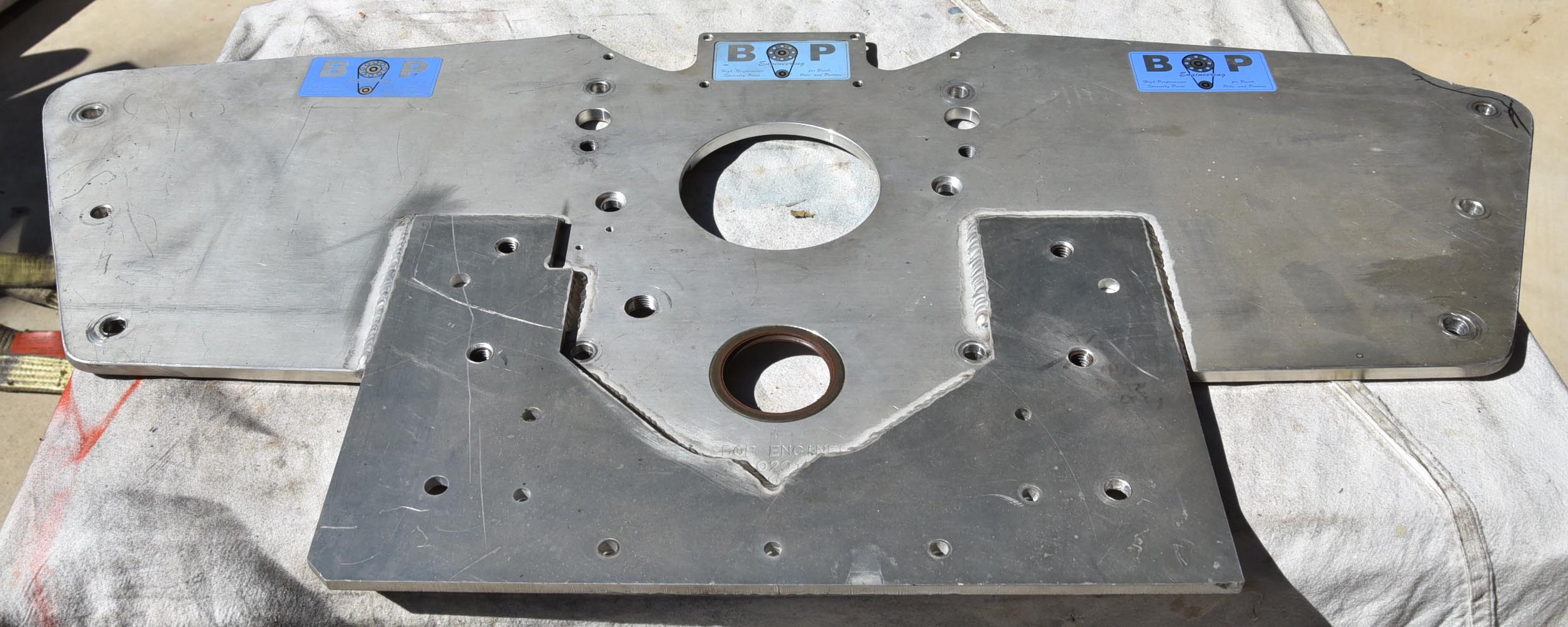

MOTOR PLATE
click on pictures to enlarge





BACK TO PONTIAC PARTS PAGE



























































VALVE COVERS
click on pictures to enlarge

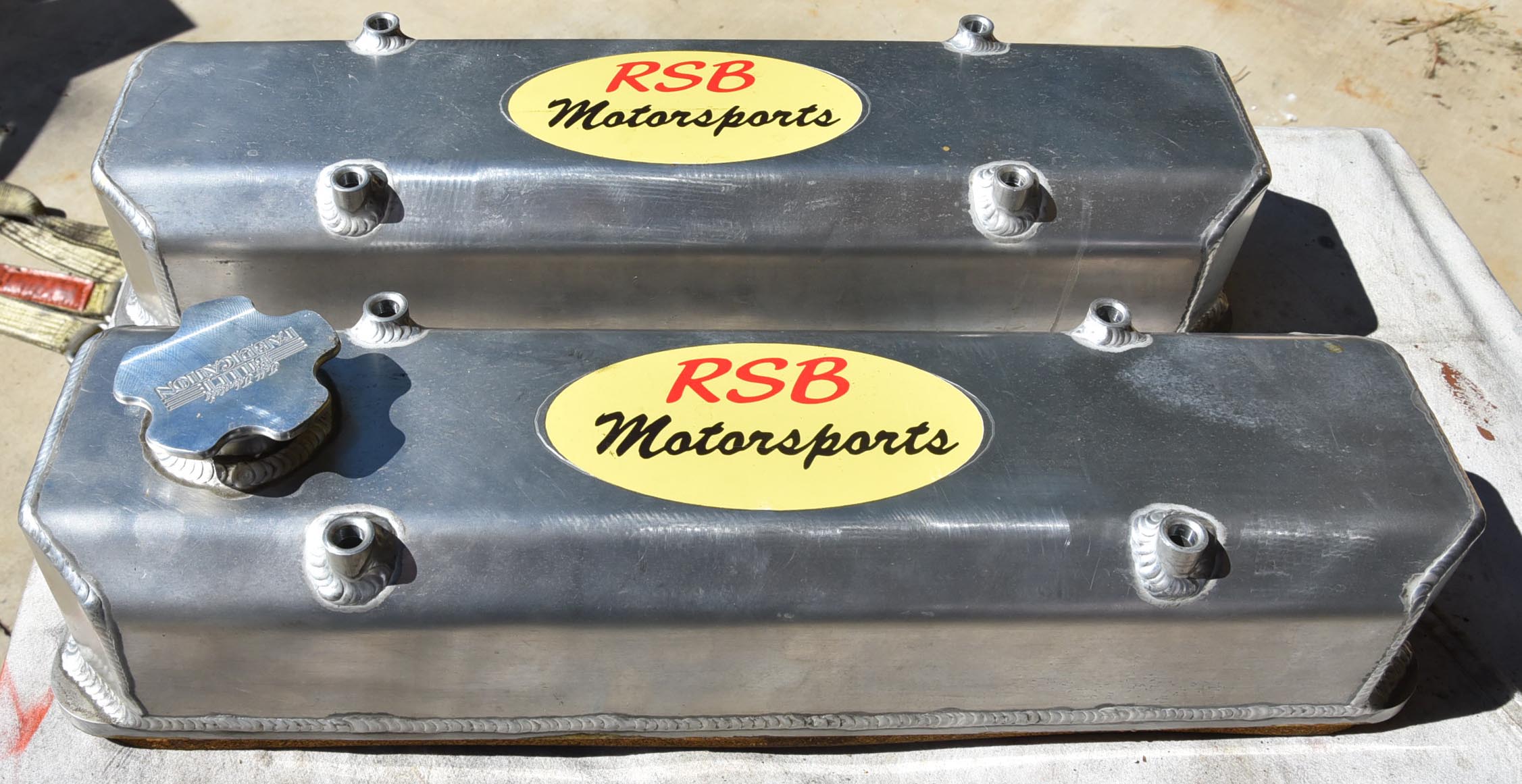

Fabricated Valve Covers



BACK TO PONTIAC PARTS PAGE

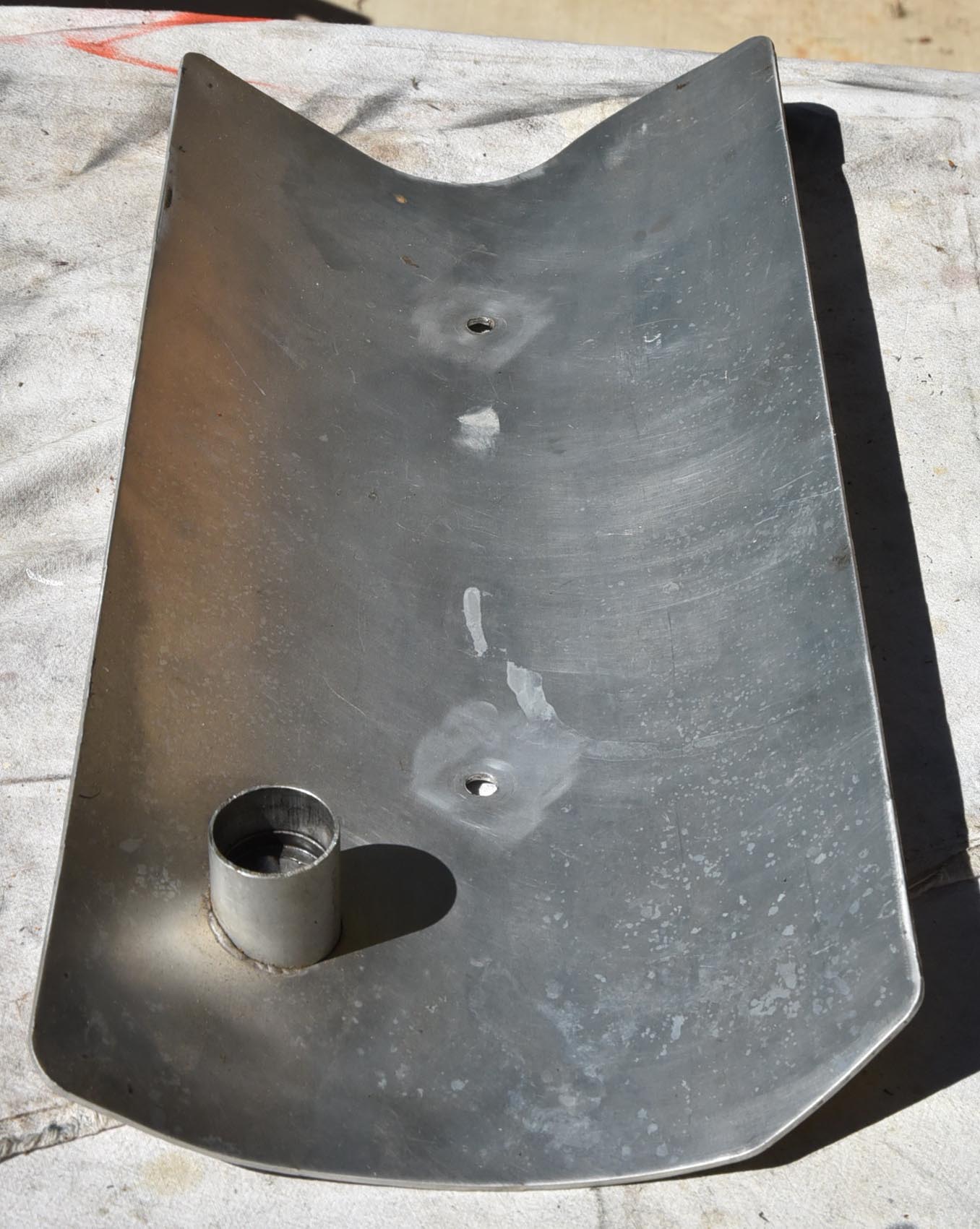

VALLEY COVER
click on pictures to enlarge



BACK TO PONTIAC PARTS PAGE

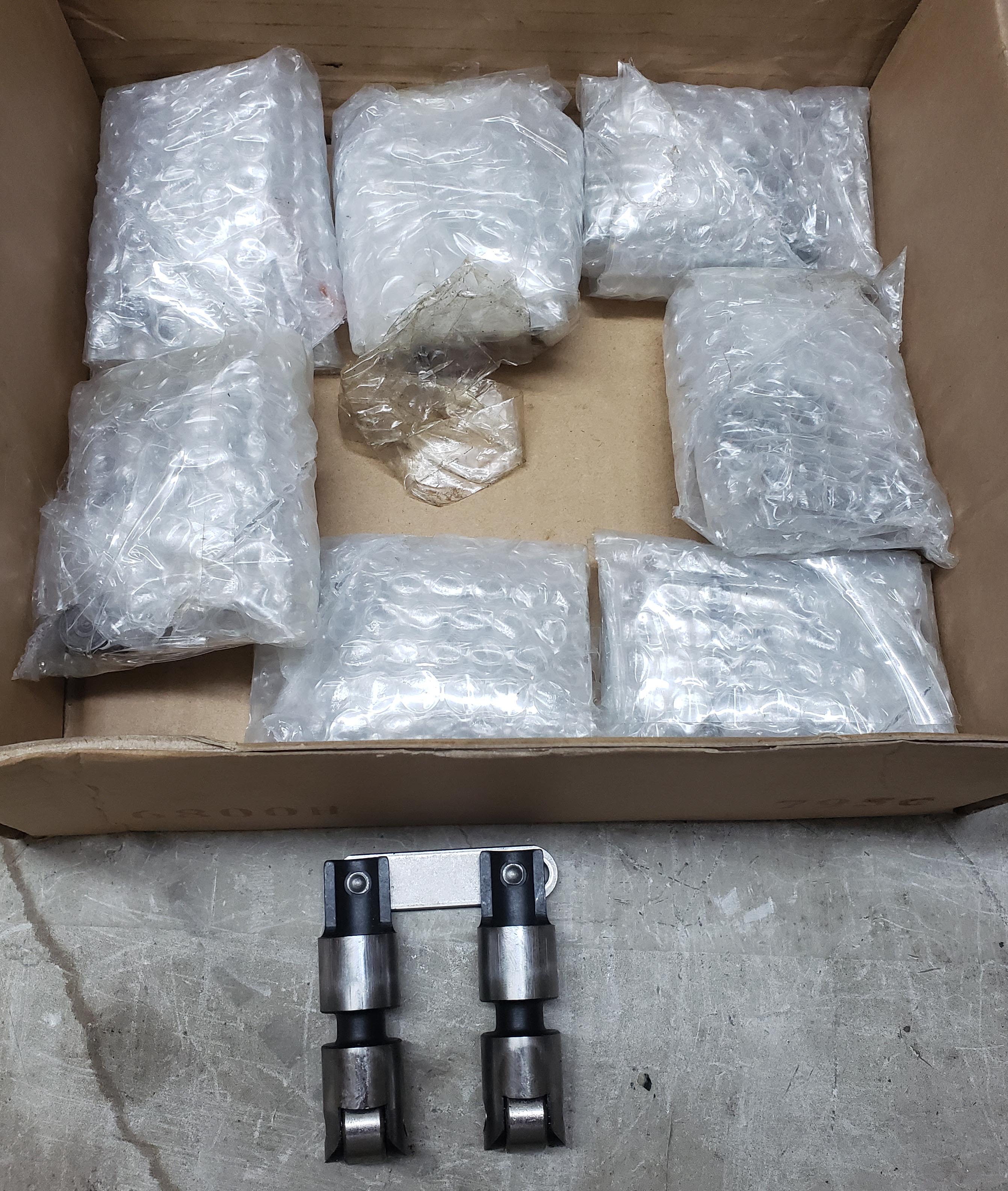

ROLLER LIFTERS
click on pictures to enlarge

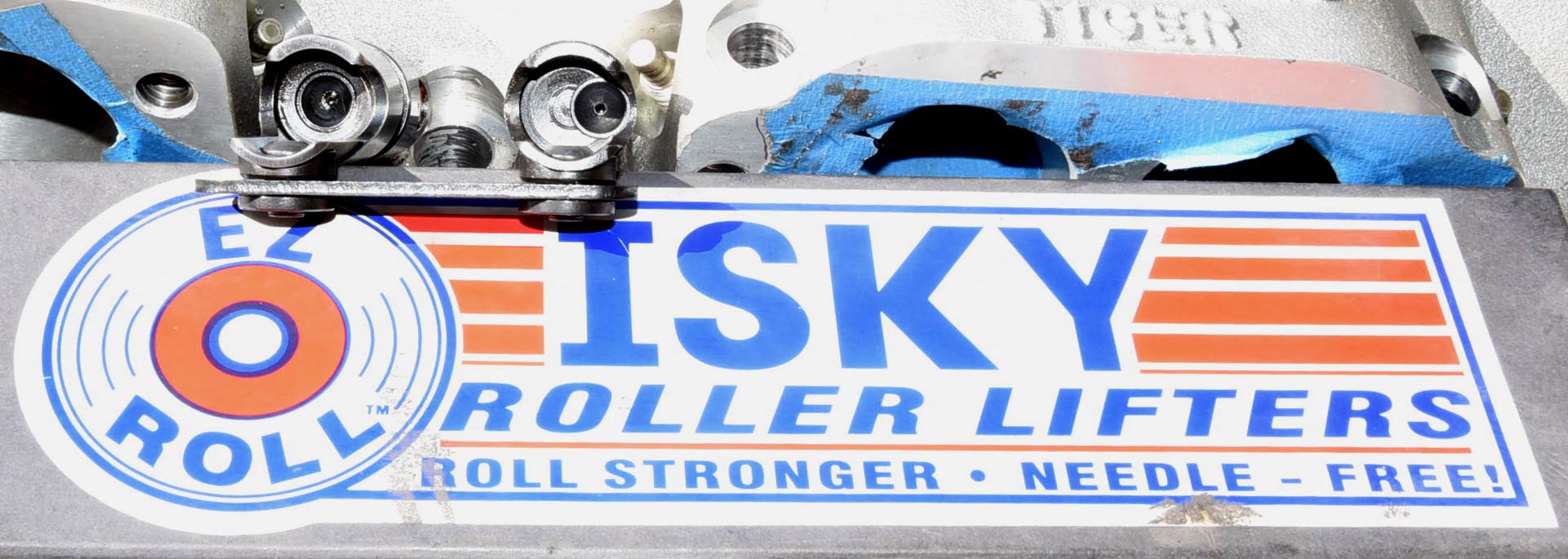

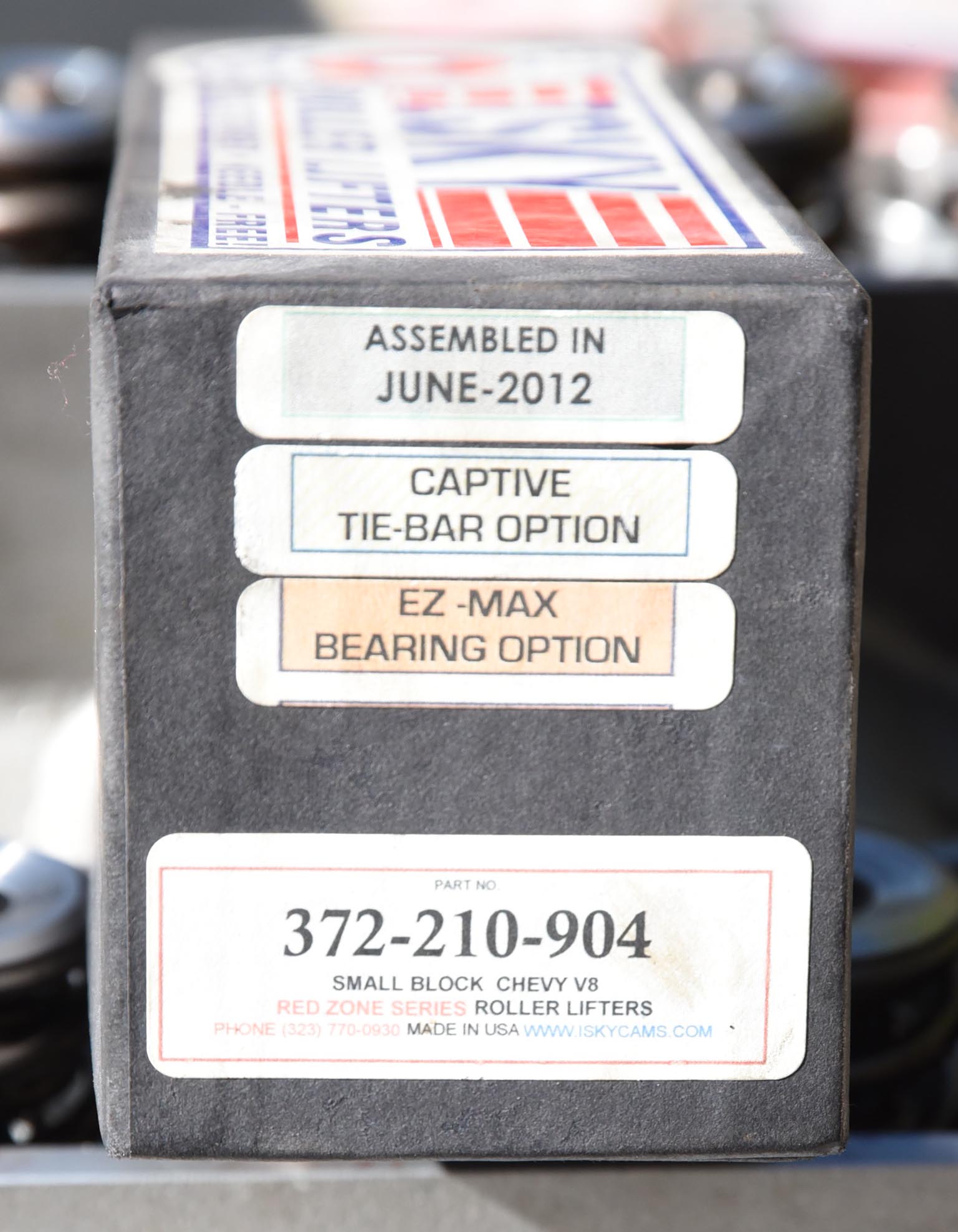

Isky Cams Solid Roller Lifters



New-in box, never installed
Isky# 372-210-904
fits Pontiac V8 & Chevrolet SB V8
.904" Dia, .210" Int P/Rod offset

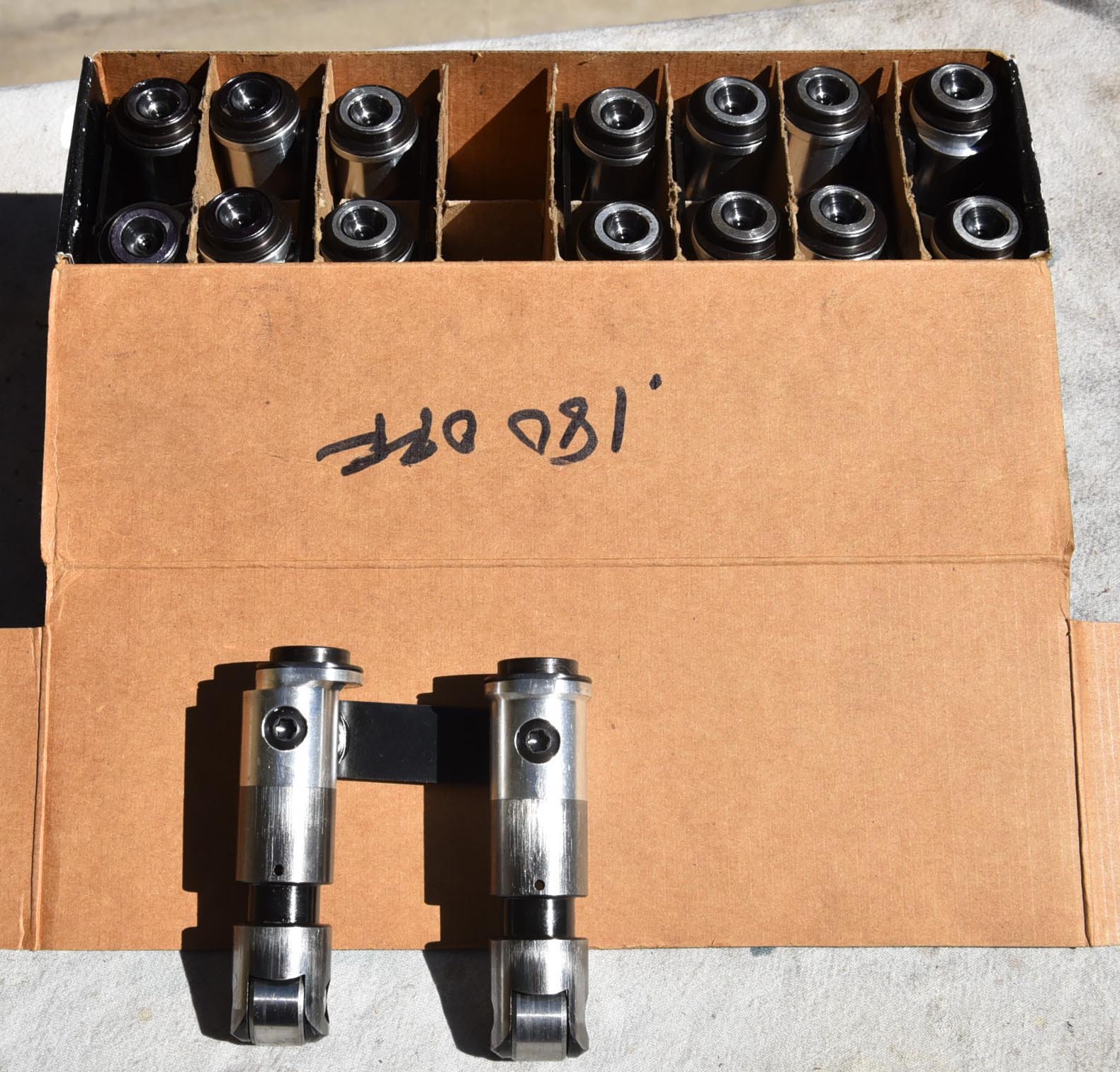

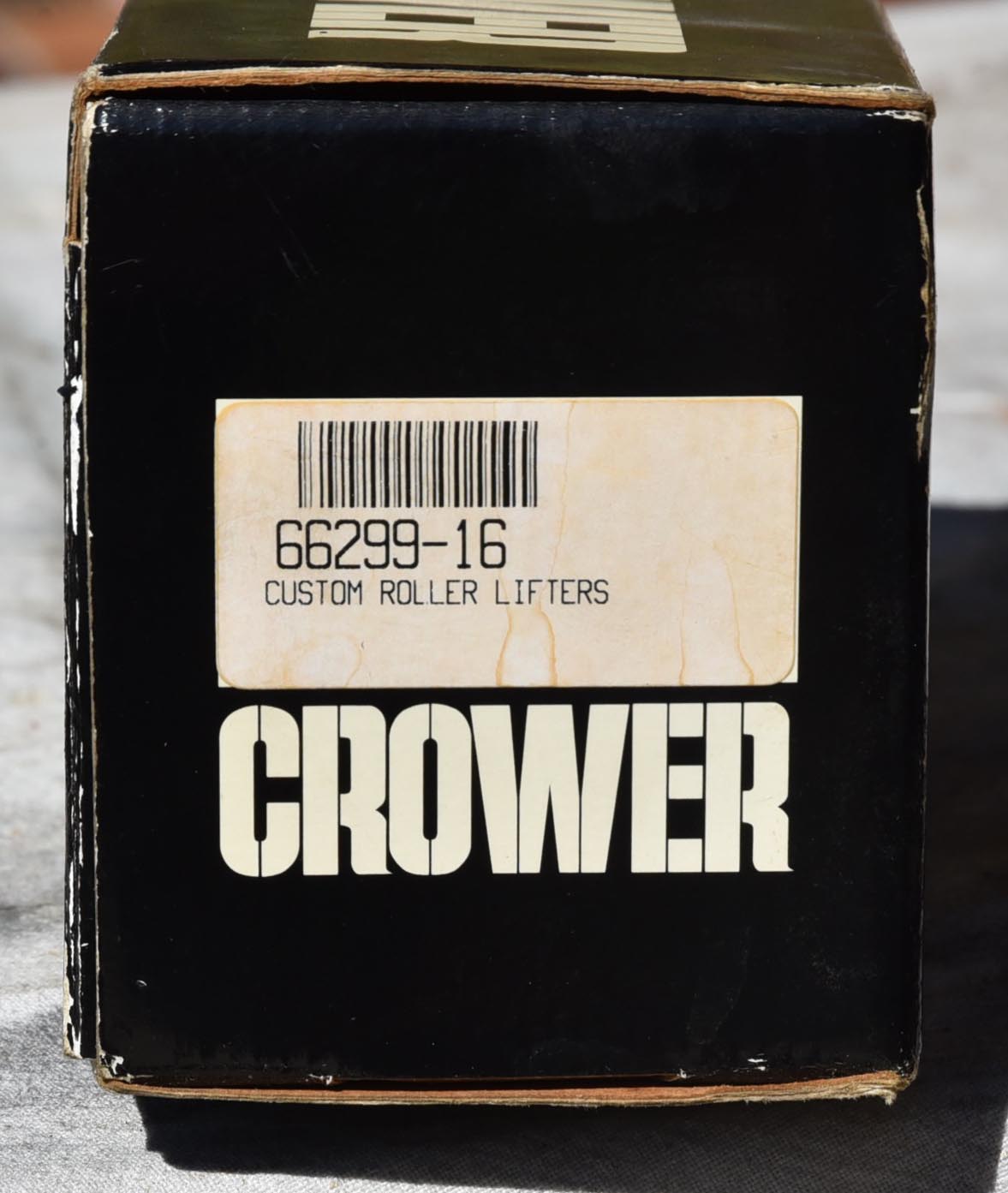

Crower Cams Custom Solid Roller Lifters


Used, Crower# 66299-16 Custom
.842" Dia, .180" Int P/Rod offset
fits Pontiac V8 & Chevrolet SB V8


Unknown Solid Roller Lifters

Used, .842" Dia, no P/Rod offset
fits Pontiac V8 & Chevrolet SB V8

BACK TO PONTIAC PARTS PAGE



























































VALVE SPRING RETAINERS
click on pictures to enlarge

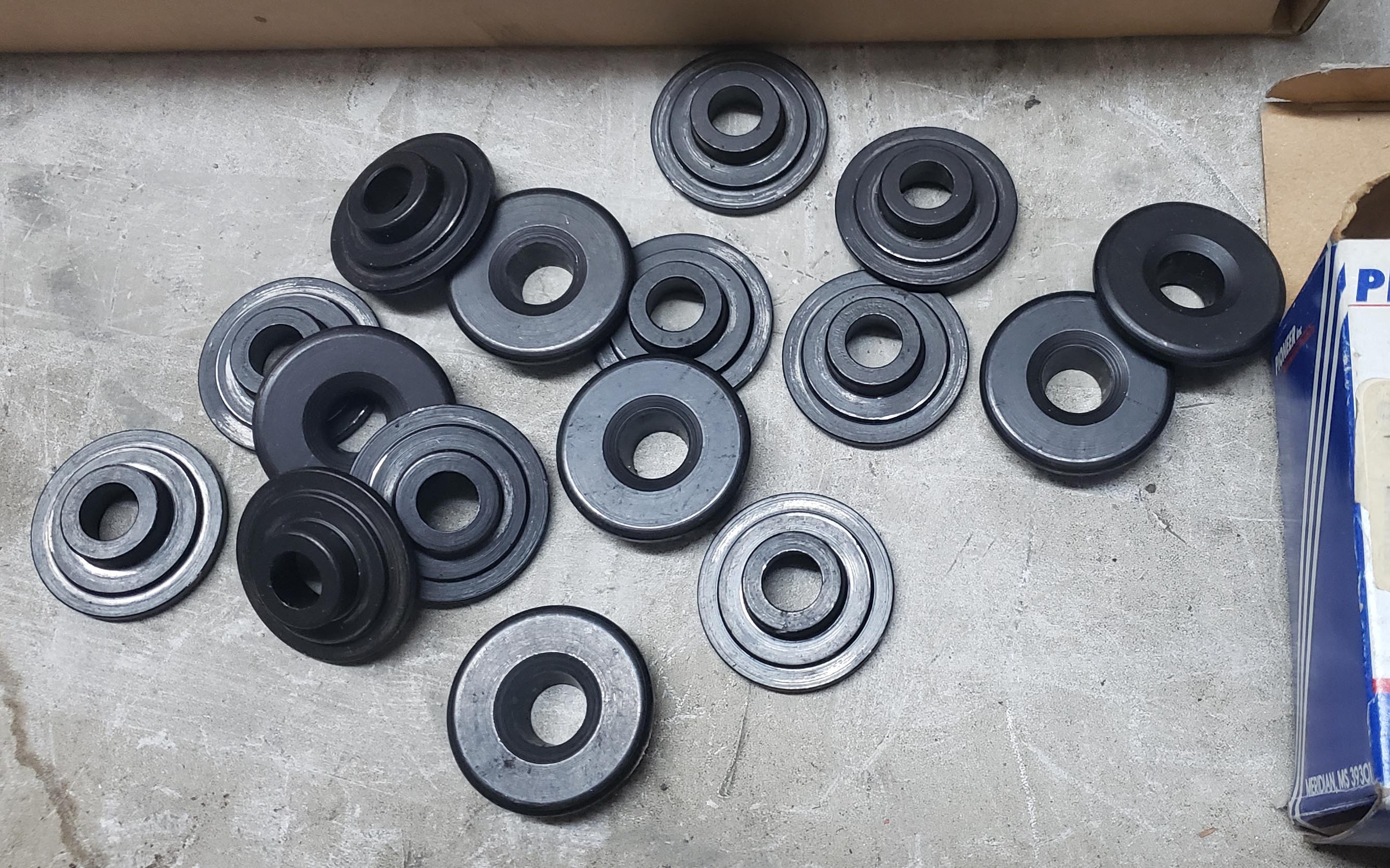

Used, Pioneer, Steel, Dual Spring, 10O

BACK TO PONTIAC PARTS PAGE

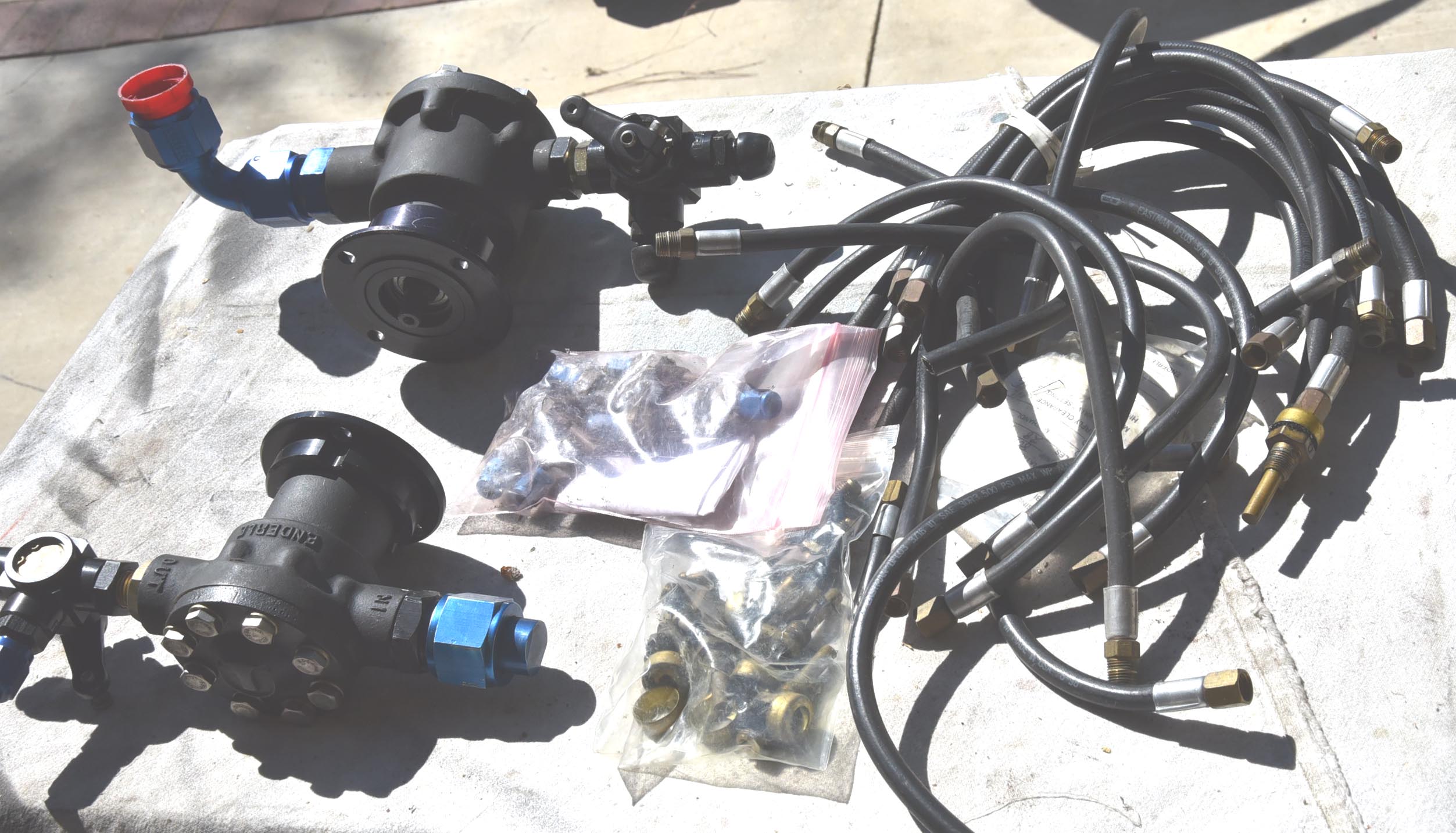

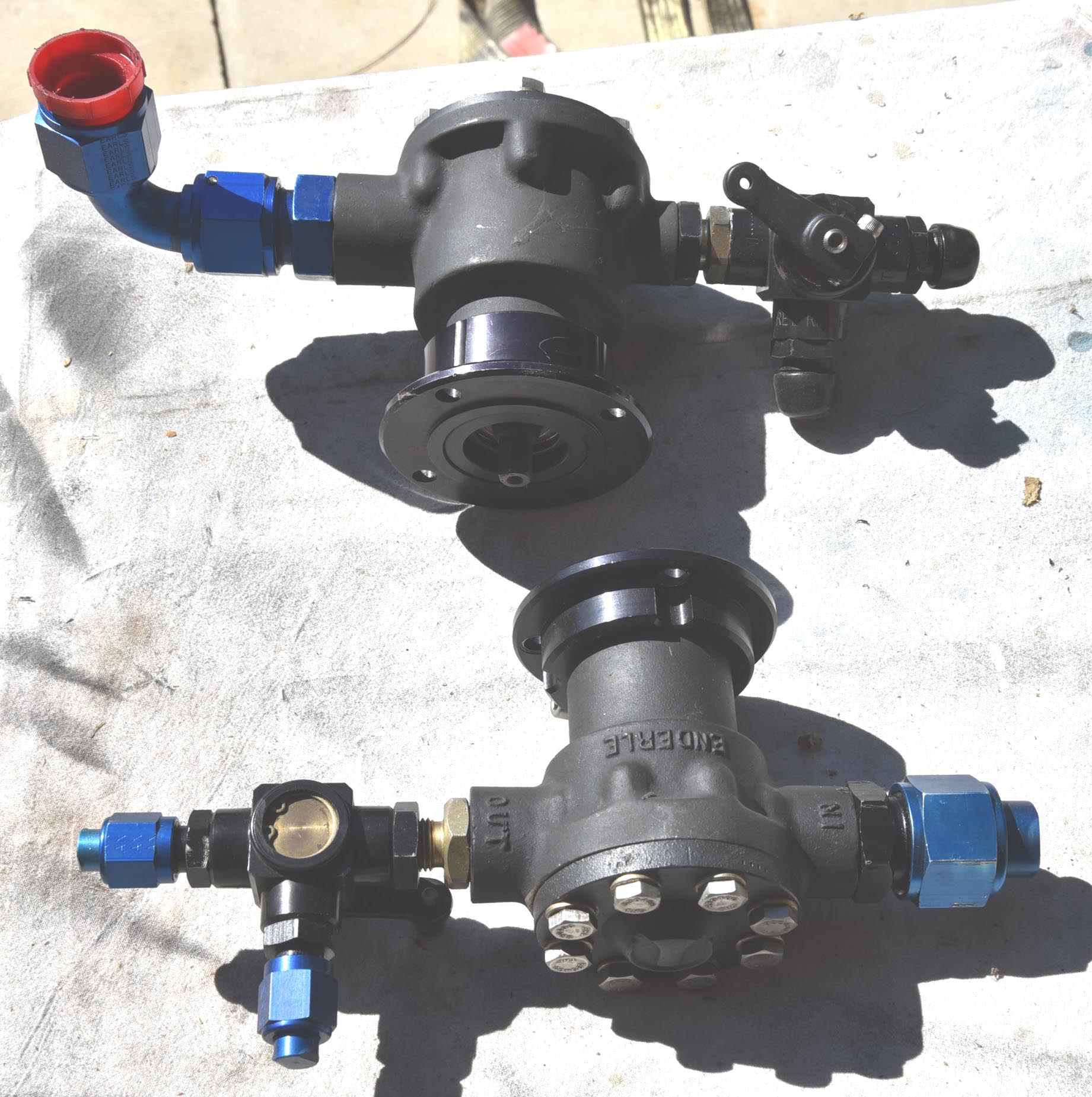

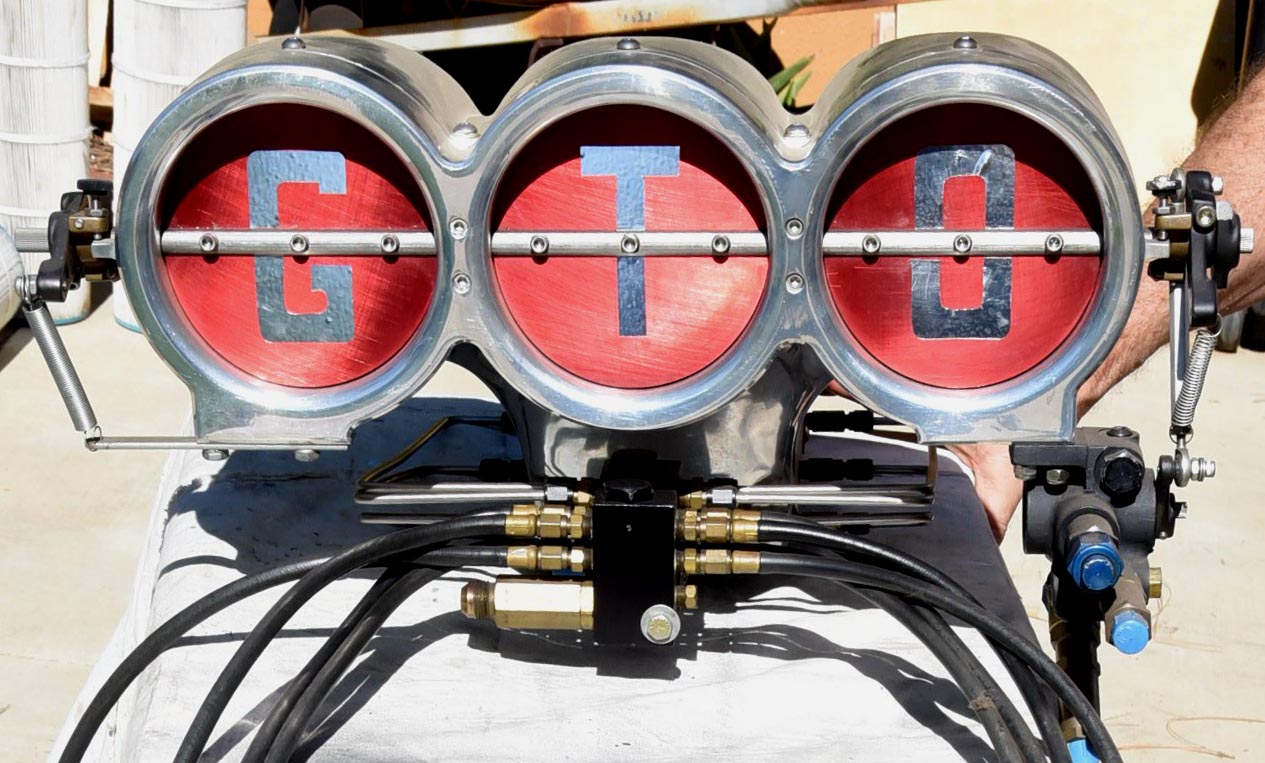

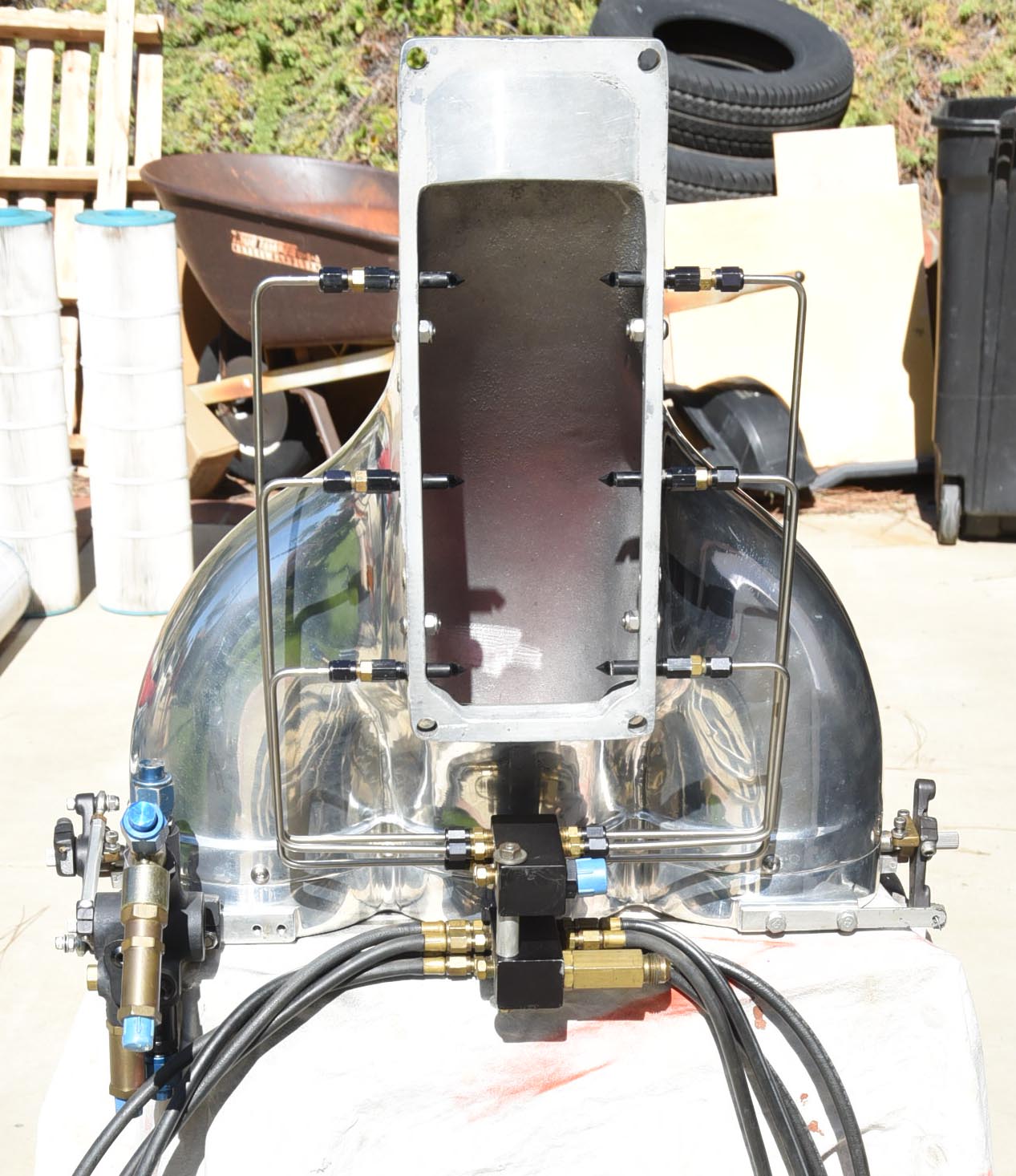

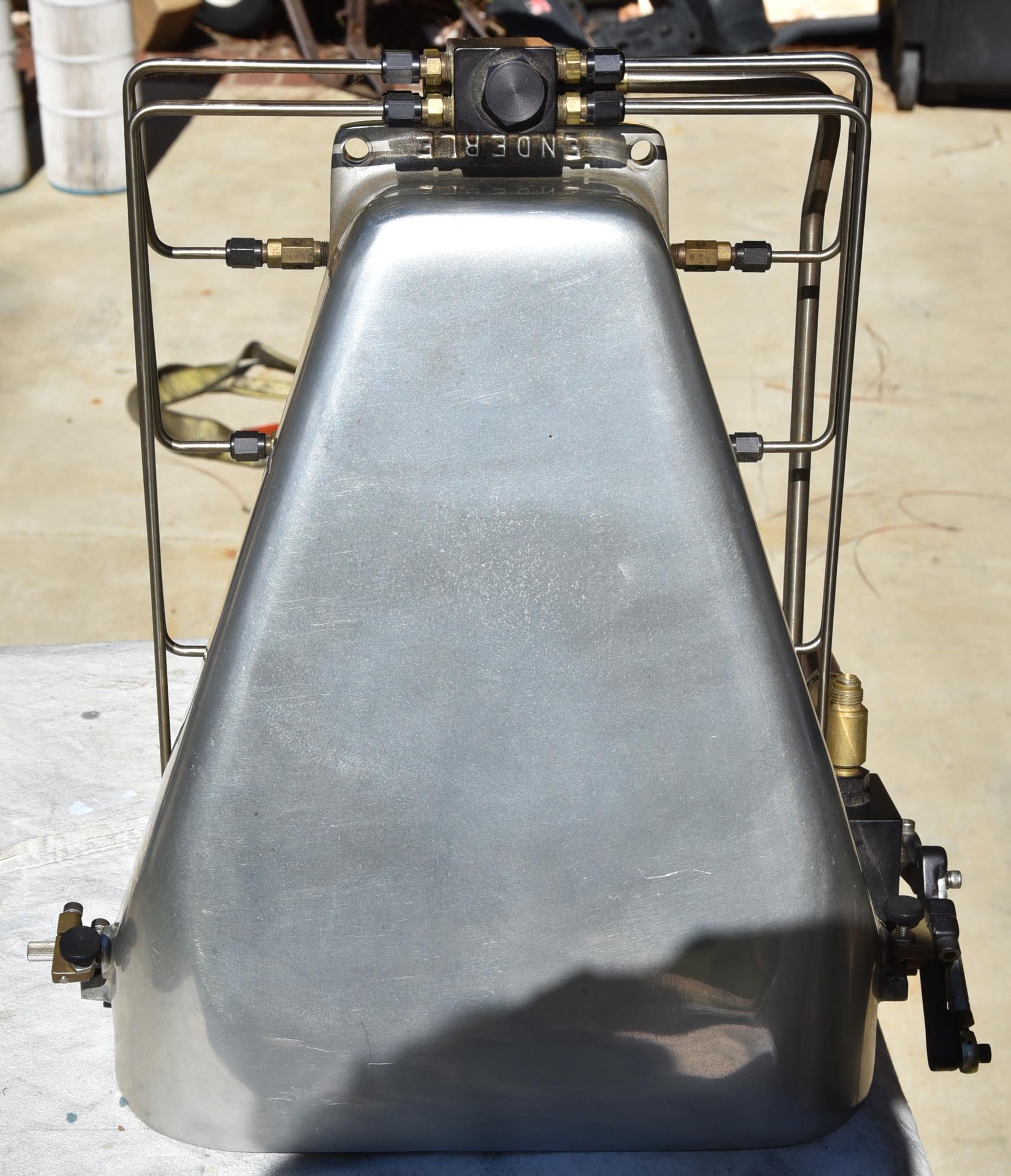

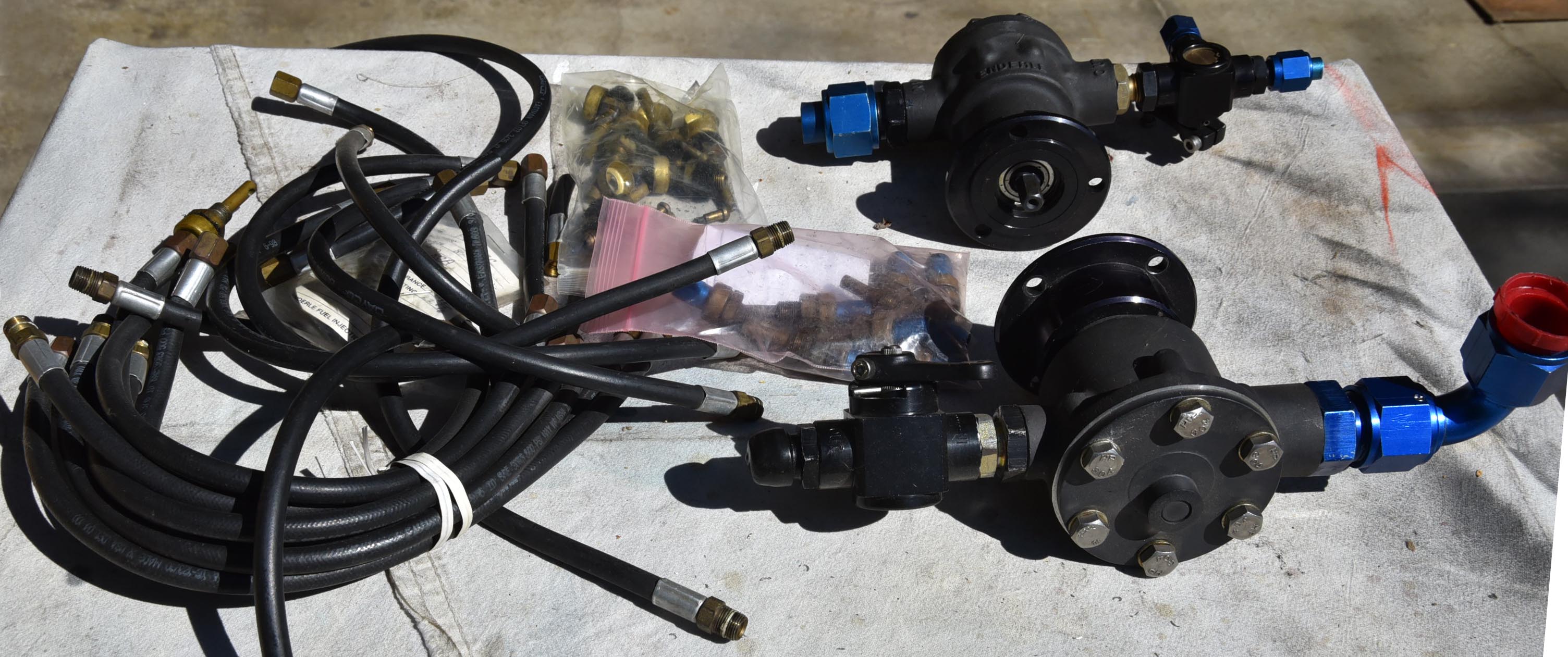

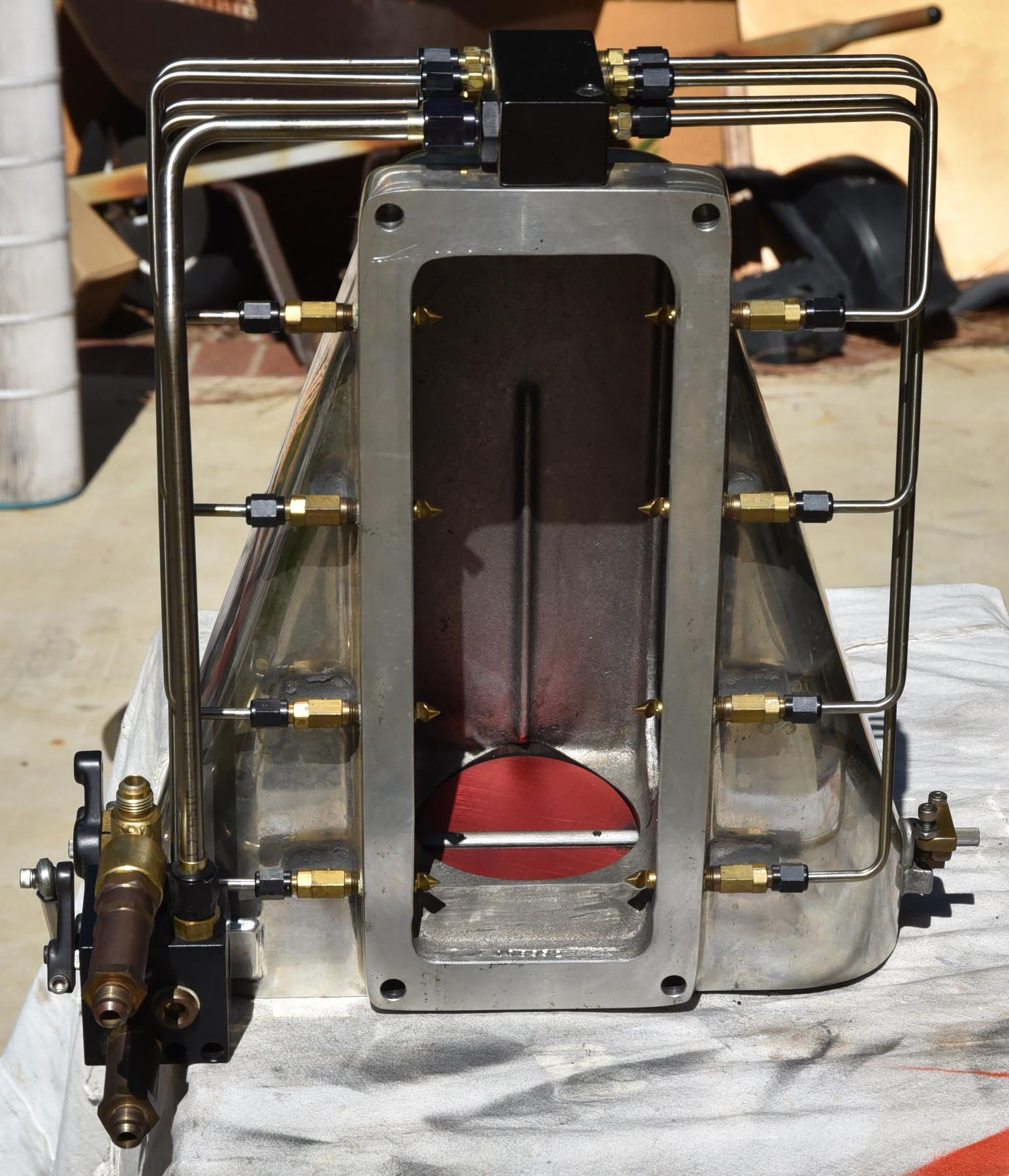

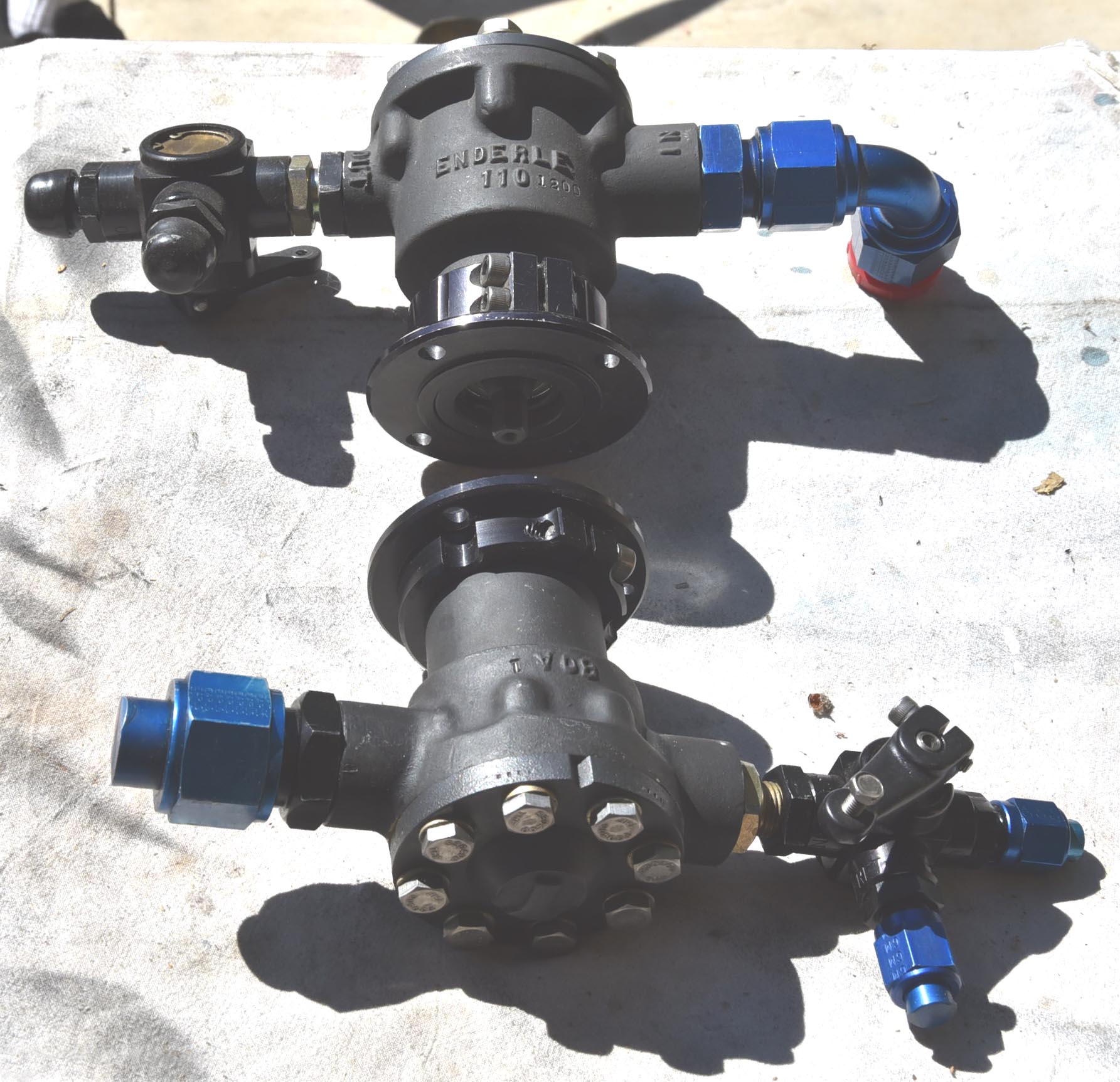

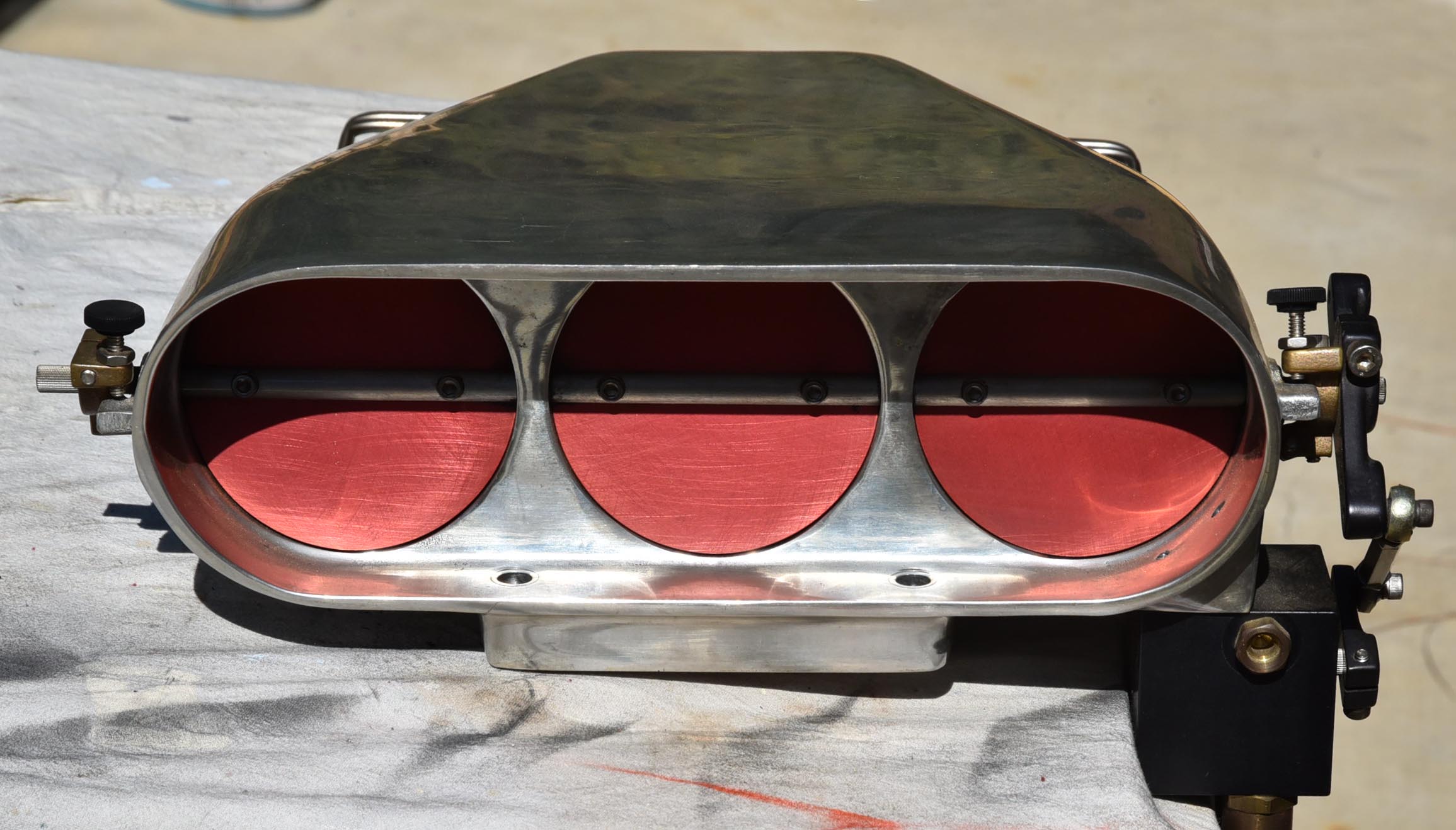

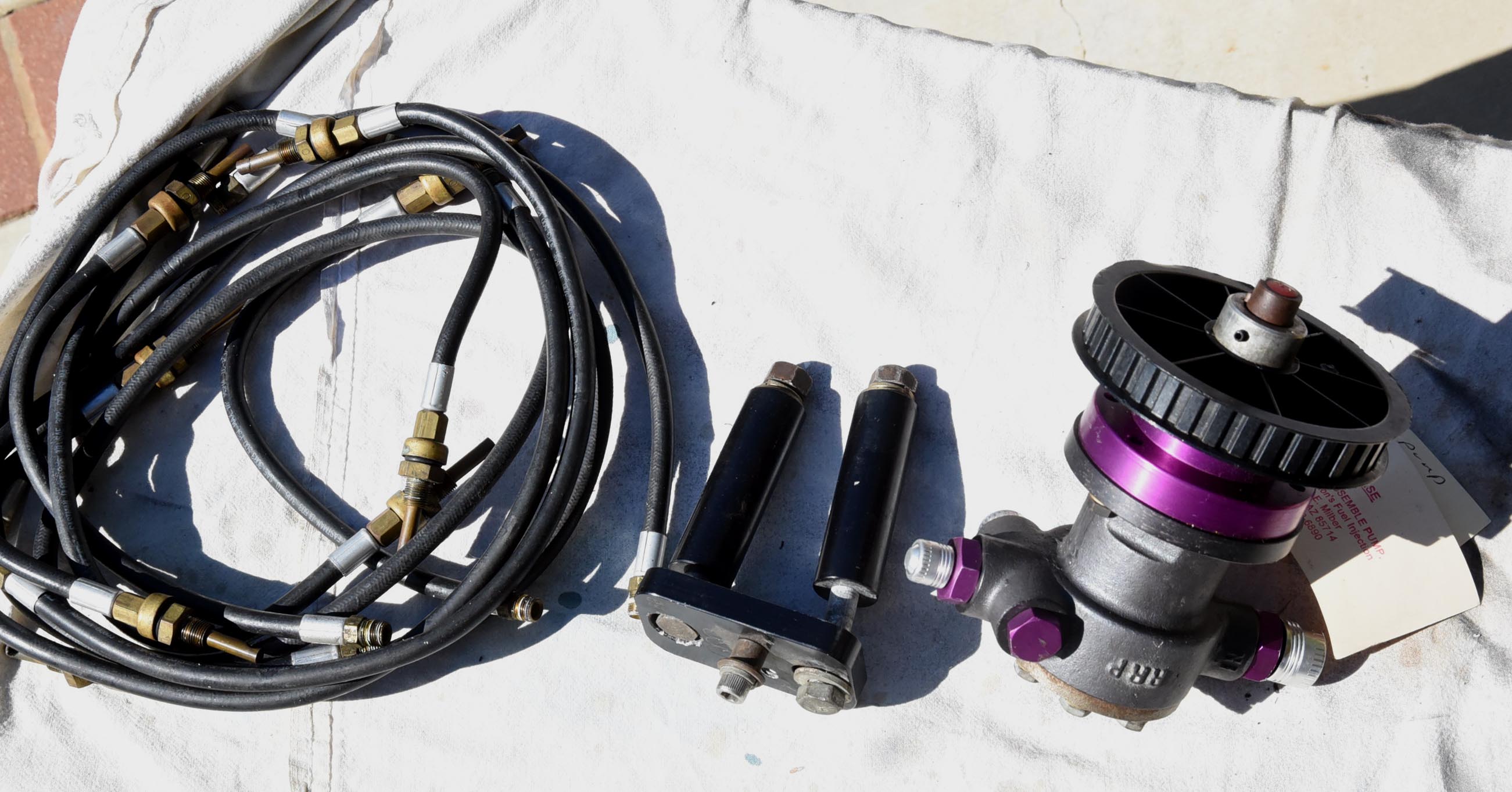

FUEL INJECTOR HATS & PUMPS
click on pictures to enlarge




NOTE: THIS INJECTOR HAS BEEN SOLD











BACK TO PONTIAC PARTS PAGE



























































STARTER
click on pictures to enlarge

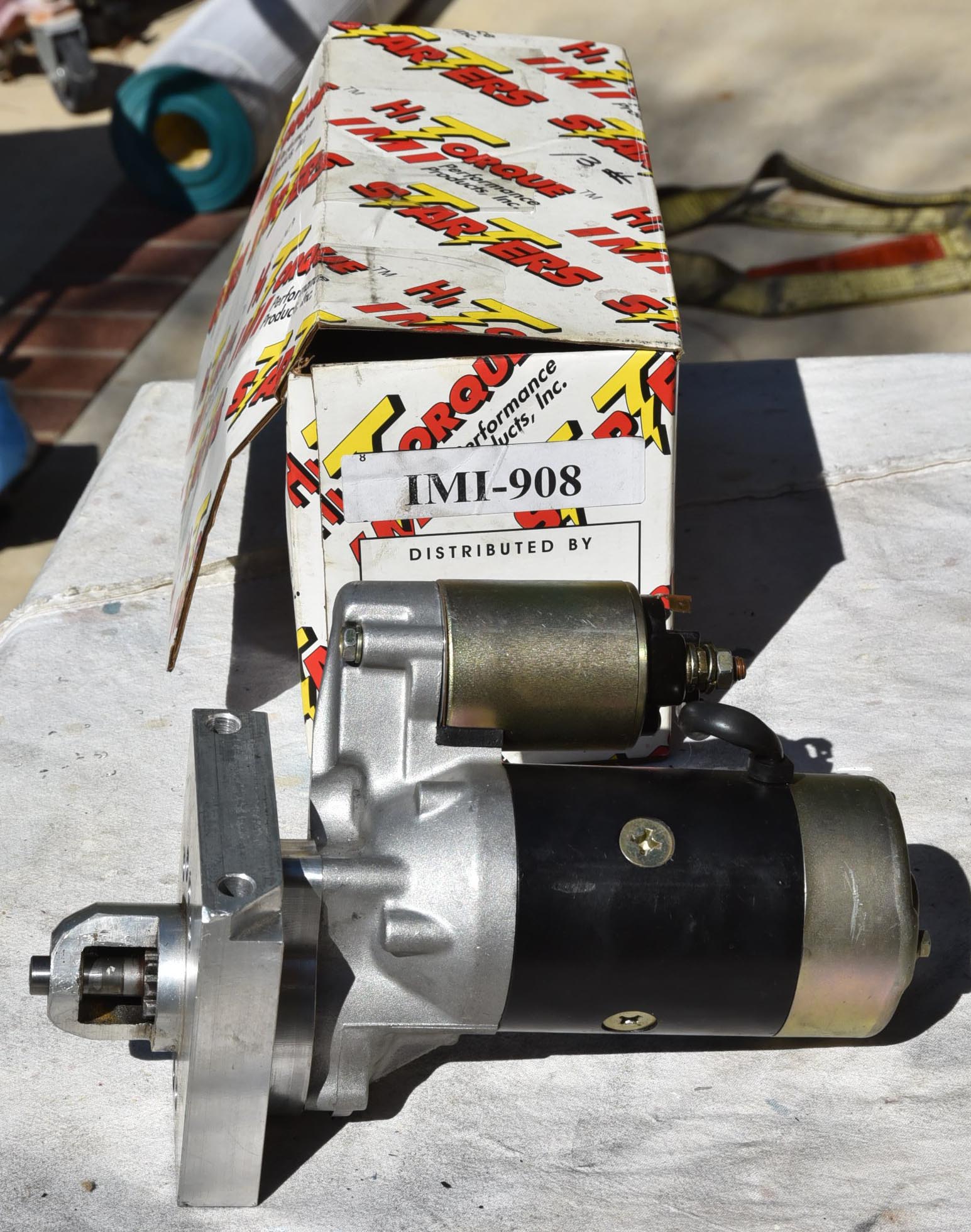

New- in box, IMI Hi-Torque Starter
fits Pontiac, Oldsmobile & Oldsmobile KB

BACK TO PONTIAC PARTS PAGE































































HEADER COLLECTORS
click on pictures to enlarge

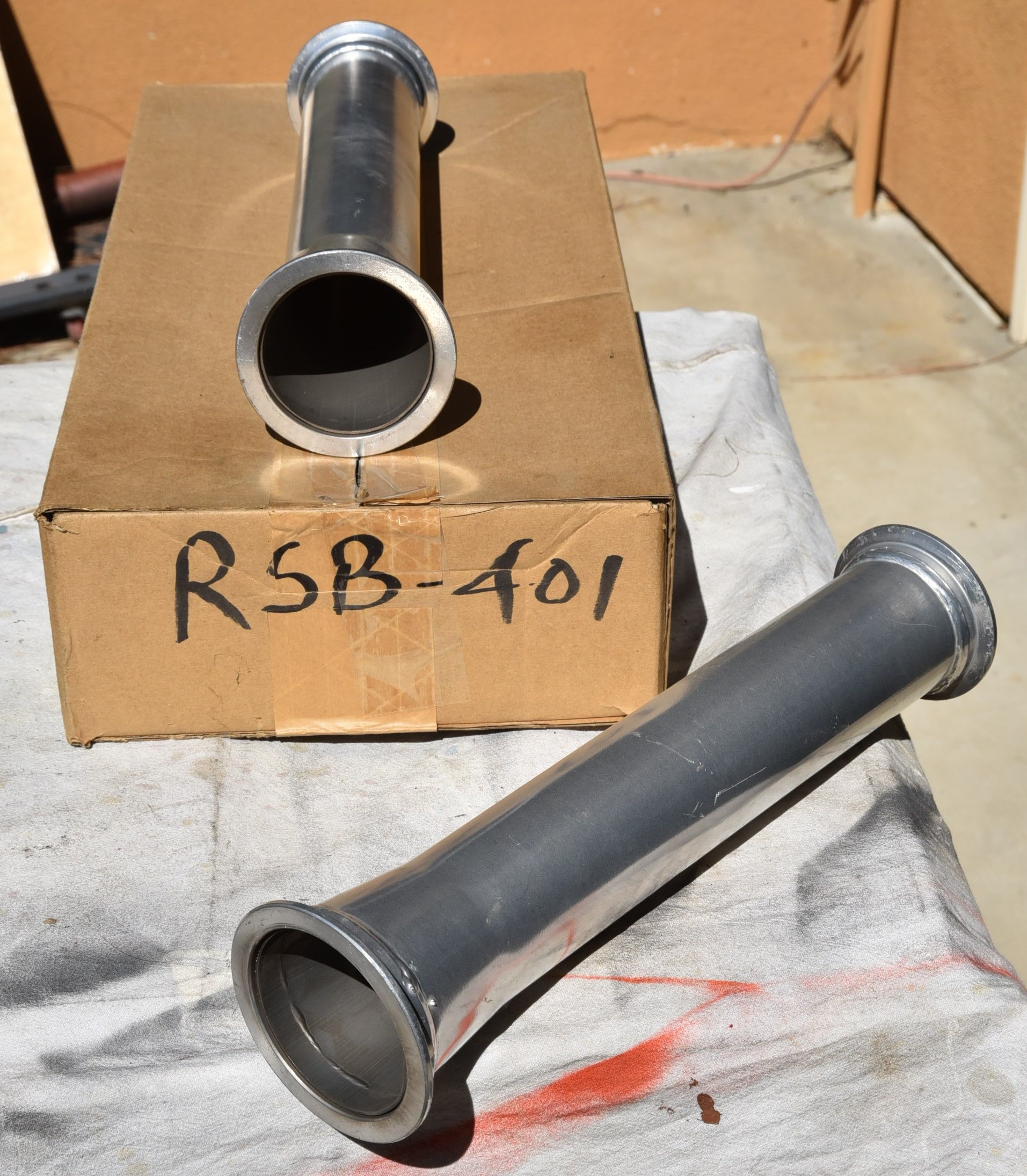

New, V-band Header Collector Extensions
Steel, 3.000" x 2.375" x 14 1/2"

BACK TO PONTIAC PARTS PAGE



























































GASKETS
click on pictures to enlarge

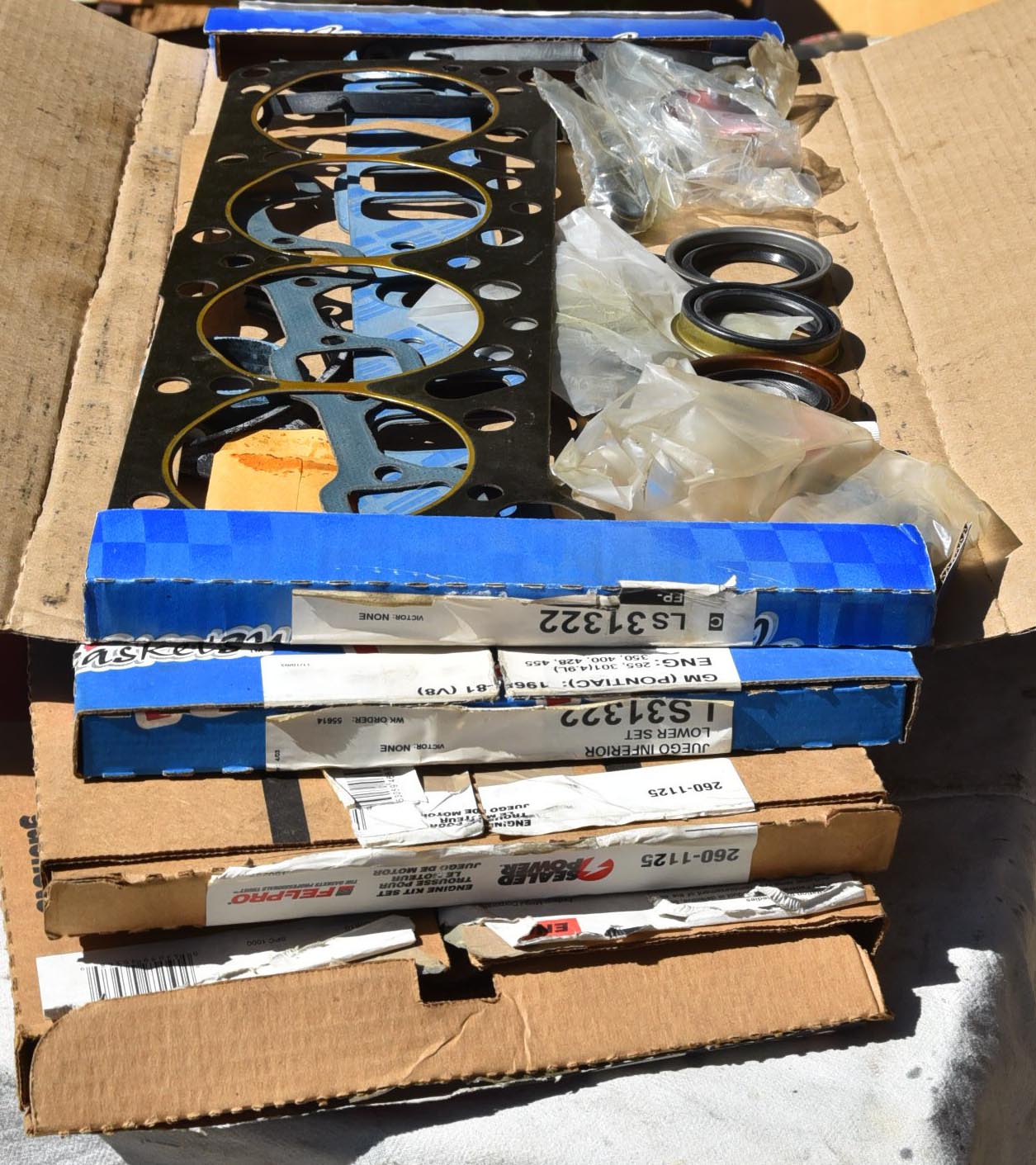

Miscellaneous Pontiac Gaskets
(Some Ford Windsor gaskets shown not included)

BACK TO PONTIAC PARTS PAGE
